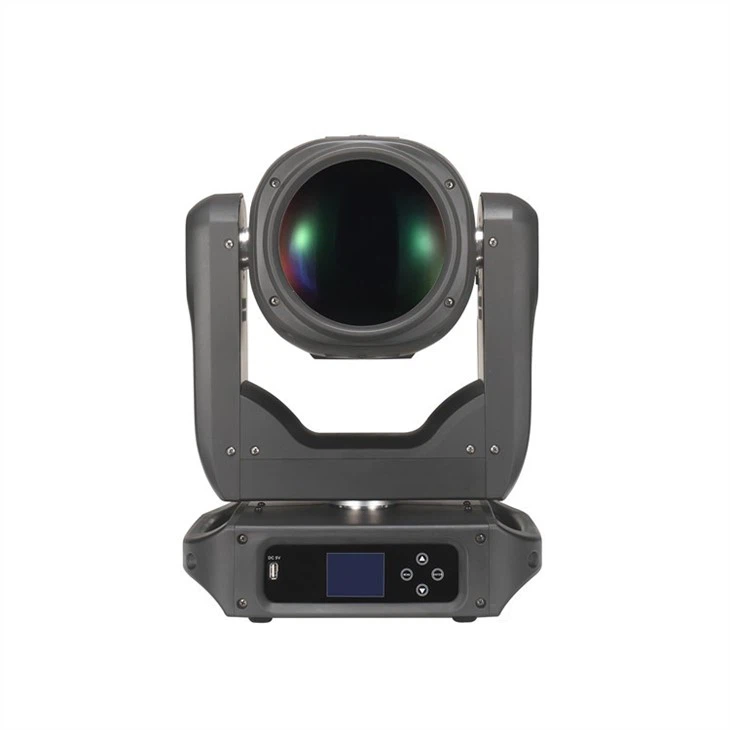

260w Beam Moving Head Light
Outline
DLW 260 BEAM is a compact and flexible beam moving head with sharp beam angle of 1.8°. The dynamic prism, fast-switching gobos and colors ensure optimum colorful effects in mid-air.
DLW 260 BEAM can produce ideal wash effects with switchable frost filter. It is able to be a perfect beam light and a perfect spotlight for DJs, corporate events, live house, churches and exhibitions.
● Light source: PHILIPS MSD Silver 250W
● Beam angle: 1.8°
● One color wheel
● One static gobo wheel
● One 6-color plate
● Dual prisms
● One frost filter
● Motorized strobe
● Motorized dimmer
Send Inquiry
Product Details of 260w Beam Moving Head Light
Electrical Specification
Input Voltage: AC100-240V 50/60Hz
Input power: 370W, PF≥0.98
Maximum input current: 3.7A
Light Source
Light source: PHILIPS MSD Silver 250W
Light source lifespan: 1500 hours
Color temperature: 7800K
Optics & Photometric Data
Optical lens: High-definition lens with anti-reflective film
Beam angle: 1.8°
Color System
One color wheel with 13 colors, rotate in both directions, rainbow, stepping, gradual changing color
Gobo System
One static gobo wheel with 10 gobos + 4 circle-shaped opens, scrolling, shake
Effect Configuration
One frost effect
Fast strobe device, multiple strobe effects optional, pulse, asynchronous, synchronous, random slow, medium, fast speed.
Dual prisms: 8-facet prism + 16-facet prism + 6-color plate, can achieve 6 kinds of prism effects when prisms overlay with each other, rotation in both directions.
Fixture Movement
PAN=540° - 16 bit
TILT=260° - 16 bit
Electronic Control
DMX Channels: 18 Ch/ 24 Ch/ 16 Ch
Control Protocols: DMX512, RDM; (optional: Art-Net, sACN)
Data Portals :XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
Power Portals : Locking Power In/Out;
Menu display: 1.77″ LCD screen, Chinese and English, menu available to display 180°reversely;
Built-in self-recharging battery, menu edited without power (optional),
Support external charging bank to enter the menu set address code and other settings;
Support eco mode (sleep mode);
Power auto-reduction when black out;
energy conservative and environmental protective;
Fan intelligent controlled, electronic sensors testing;
Size & Weight
Fixture Size: 329X245X495 mm (Integrated hook)
Fixture weight: 15.5 kg
Flight case size: 830X530X745 mm (2 positions)
Flight case weight: 32 kg
Working Conditions
Minimum and maximum ambient temperature: -20℃~ 40℃
Protection rating: IP20
Specifications and documentation subject to change without notice.
