4 in 1 Stage Light

DREAM L800 BSWF
DREAM L800H BSWF

Outline
DREAM L800 BSWF is moving head stage light, LED profile light adopted premium and high efficiency 800W LED white light engine, the extensive feature package includes: uniform spot output; excellent colors; sharp gobos; low noise; incredibly 1:10 zoom range; electronic dimming and strobe; CMY/CTO; iris for beam adjusting and rotating gobo wheel and animation wheel. It also features infinite rotate framing system which beloved by all of our users. The ultimate and complete framing system can give light designers a limitless dynamic and artsy materials library with shapes that it generates at variable angle through the entire insertion path.

● Light source: 800W White LED light engine
● Zoom range: 5°~ 58°
● CMY + CTO
● One color wheel
● One rotate gobo wheel
● One fixed gobo wheels
● One animation wheel
● One complete & infinite rotate framing system
● Motorized iris, linear adjustment
● One prism, one frost filter
● Dimmer: linear adjustment

Send Inquiry

Product Details of 4 in 1 Stage Light

Electrical Specification

Input Voltage: AC200-240V 50/60Hz

Input Power: 1080W, PF ≥ 0.98

Maximum input current: 5.4 A

Light Source

Light source: 800W White LED light engine (choice of high brightness mode or high CRI mode)

CRI: Ra≥ 70 (DREAM L800 BSWF high brightness);

Ra≥ 90 (DREAM L800H BSWF high CRI)

LED expected lifespan: 20000 Hours

Optics & Photometric Data

Frontal lens: High-definition lens with anti-reflective film, diameter of frontal lens: 180 mm

Zoom range: 5°~ 58°

Color System

CMY infinite mixing, output high saturated color (RGB), pure color.

CTO color temperature linear adjustable 3200-6200K

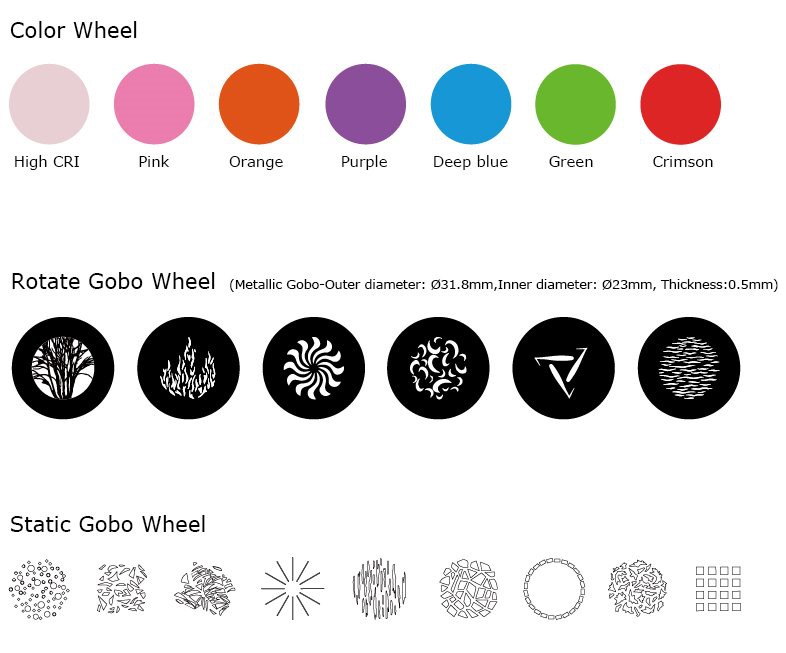

One color wheel, has 7 color filters plus open (included a CRI boost filter), can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.

Gobo System

One rotate gobo wheel with 6 gobos, the gobos can be indexing and bi-directional rotating, can be self-rotation, create effects of flowing water and shaking, the gobo wheel can be accurately controlled at 16bit.

One static gobo wheel with 9 gobos + 1 open, the gobo wheel can create bidirectional flowing effect.

One animation wheel, can imitate clouds, fire and flowing water for effects.

Framing System

One complete infinite rotatable framing system, 4 x individually controllable full curtain blades with full variable angle through the entire insertion path, can make the framing graphics 360° infinite rotating and accurately positioning, without distortion.

Effect Equipment

One prism with rotation in both directions

One frost filter

0-100% electronic dimming control, multiple choices of dimming curves

Electronic strobe, with speed adjustment from 1 to 25 flashes per second, multiple strobe options

High speed motorized iris 5-100% linear adjustment, built-in macro function

Fixture Movement

PAN = 540° - 16 bit

TILT = 270° - 16 bit

Electronic Control

DMX Channels: 32 Ch/ 35 Ch/ 60 Ch

Control Protocols: DMX512, RDM; (optional : Art-Net, sACN, wireless function)

Data Portals :XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out)

Power Portals : Locking Power In

Menu display: 3.5" LCD screen; choice of Chinese and English language, menu available to be displayed 180° reversely

Built-in self-rechargeable battery, menu can be edited without power supply (optional); support connecting power bank to enter the menu and edit address code and other settings

Electronic sensors testing, fan intelligent detection and control

Eco mode (sleep mode when standby)

Non-touching magnetic encoder positionable system for pan-tilt

Size & Weight

Fixture size: (462X462X812) mm (Integrated hook)

Fixture weight: 44 kg

Road case size: (710X550X865) mm (1 position)

Road case weight: 30 kg

Carton size: 545x525x930 mm (1 positions)

Working Conditions

Minimum and maximum ambient temperature: -20℃~ 40℃

Protection rating: IP 20
