Pro Light Moving Head Spot
End-of-Life Product
Explore DLW's latest high-output LED profile and spot moving heads for a replacement.
Outline

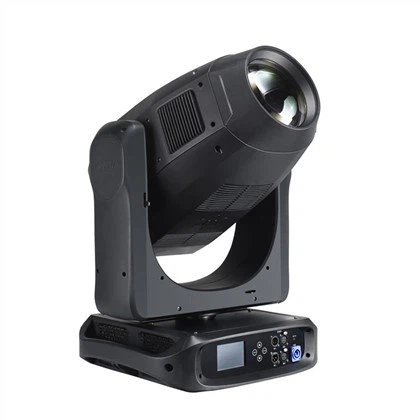

DREAM 1400 SPOT is a professional intelligent stage lighting, production lighting spot moving head. The quality of its light is the first extremely feature of the pro light moving head spot. It breaks through the traditional optical design, with tailored light source and reflective bowl as well as fine optical lens components make it perfect. It is an incredible spot light for effects projection, the spot is uniform and clear with high color reproduction, pure CMY mixing and color wheel make the colors beautiful, as well as a beautiful animation wheel, light and heavy softening effect, professional dimming, which without Any scanning shadows during dimming process. The moving head spot light also delivers an excellent beam light with 36000lm output, dynamic patterns, color rainbow, prismatic beam splitting, controllable aperture, all its excellence cast it to be a professional stage lighting fixture for the art performances.
● 1400W Osram discharge lamp
● 160 mm Ø front lens
● Zoom range: 7°~ 50°
● Very high CRI
● CMY+CTO
● One color wheel with 7 color filters
● One static gobo wheel with 9 fixed gobos plus open
● Two rotate gobo wheels with 5 rotate gobos each
● One animation wheel
● Fast iris, linear adjustable
● One prism, dual frost filters
● Precise 0-100% dimming
● Fast and multi strobe
● Electric iris 5-100% linear adjustable
Send Inquiry
Product Details of Pro Light Moving Head Spot
Specification
|
Electrical |
|
|
Input voltage |
AC 200–240V, 50/60Hz |
|
Maximum power consumption |
1800W |
|
Power factor |
PF ≥ 0.98 |
|
Maximum input current |
9A |
|
Light Source |
|
|
Lamp model |
OSRAM Lok-it! 1400/PS Brilliant |
|
Lamp type |
High-output short-arc discharge lamp |
|
Lamp nominal power |
1400W |
|
Lamp color temperature |
6000K |
|
Expected lamp lifespan |
750 hours |
|
Lamp base |
PGJX28 Lok-it!® |
|
Lamp nominal luminous flux |
118,000lm, according to OSRAM lamp data |
|
Fixture luminous flux output |
36,000lm |
|
Fixture color rendering |
Ra ≥95, R9 ≥90 |
|
Optical System |
|
|
Reflection system |
high-efficiency reflector bowl with dual-reflection design |
|
Reflector configuration |
Primary and secondary reflectors for optimized light collection and output efficiency |
|
Lens system |
High-definition optical lens with anti-reflective coating |
|
Front lens |
160mm diameter |
|
Zoom range |
7°–50° motorized zoom |
|
Fixture output |
36,000lm |
|
Color System |
|
|
CMY system |
Smooth CMY colour mixing for rich, highly saturated and pure colours |
|
CTO system |
Linear CTO adjustment from 3200K to 6000K |
|
Color wheel |
1 color wheel with 7 color filters plus open |
|
Color-wheel effects |
Bidirectional scrolling, rainbow, colour stepping, colour fading and random colour modes |
|
Color rendering |
Ra ≥95; R9 ≥90 |
|
Rotating Gobo System |
|
|
Rotating gobo wheels |
2 wheels |
|
Gobos per wheel |
5 gobos per wheel |
|
Gobo functions |
Indexing, bidirectional and independent self-rotation |
|
Dynamic effects |
Rotate, shaking patterns and other effects |
|
Control resolution |
16-bit positioning control |
|
Static Gobo System |
|
|
Static gobo wheel |
1 wheel with 9 gobos plus open |
|
Gobo effect |
Bidirectional scrolling effect |
|
Animation System |
|
|
Animation wheel |
1 animation-effect wheel |
|
Simulated effects |
Clouds, fire, flowing water and other dynamic effects |
|
Effects Configuration |
|
|
Prism |
1 rotating 4-facet prism |
|
Prism rotation |
Bidirectional rotation |
|
Frost |
2 frost filters |
|
Frost effects |
Uniform diffusion, linear softening and high-brightness output |
|
Dimming |
Independent 0–100% linear dimming |
|
Dimming curves |
Multiple selectable dimming curves |
|
Strobe |
High-speed electronic strobe, 0.8–15 flashes per second |
|
Strobe modes |
Pulse, synchronous, asynchronous and random slow/medium/fast modes |
|
Iris |
High-speed electronic iris with 5–100% linear adjustment |
|
Iris functions |
Multiple built-in macro functions |
|
Fixture Movement |
|
|
Pan range |
540° |
|
Tilt range |
270° |
|
Movement resolution |
16-bit Pan/Tilt control |
|
Positioning system |
Non-contact magnetic encoder positioning system |
|
Electronic Control |
|
|
DMX channel modes |
25 / 29 / 42 channels |
|
Standard control protocols |
DMX512, RDM |
|
Optional Network protocols |
Art-Net, sACN |
|
Optional Wireless control |
Optional |
|
DMX connector |
5-pin XLR |
|
Optional Network connector |
RJ45 |
|
Display |
3.5-inch LCD screen |
|
Menu languages |
Chinese and English |
|
Display orientation |
180° reversible menu display |
|
Eco mode |
Sleep mode during standby |
|
Intelligent functions |
Electronic sensor testing, intelligent fan detection and control |
|
Size and Weight |
|
|
Fixture dimensions |
472 × 472 × 807mm |
|
Fixture net weight |
43kg |
|
Flight case dimensions |
710 × 550 × 865mm |
|
Flight case capacity |
1 fixture |
|
Flight case weight |
30kg |
|
Operating Conditions |
|
|
Ambient temperature |
−20°C to 40°C |
|
Protection rating |
IP20 |
|
Recommended environment |
Dry indoor professional lighting applications |
*Specifications and documentation are subject to change without notice.*
FAQ
Q1: What is a professional moving head spot light?
A professional moving head spot light is an intelligent stage lighting fixture equipped with a motorized moving system, high-output light source, optical lens system, gobo wheels, and advanced control functions. It is widely used for concerts, theatres, touring shows, TV studios, and live events.
Q2: What are the main applications of moving head spot lights?
Moving head spot lights are commonly used for concerts, theatrical performances, festivals, corporate events, TV productions, worship spaces, and rental productions. They provide precise beam shaping, projection effects, and dynamic movement for creative lighting design.
Q3: How many moving head spot lights do I need for a stage?
The required number depends on stage size, venue type, lighting design requirements, and fixture output. Small venues may need only a few units, while concerts and touring productions often use dozens or hundreds of moving lights.
Q4: Where can I buy professional moving head spot lights from a manufacturer?
Professional moving head spot lights can be purchased directly from experienced stage lighting manufacturers or authorized distributors. Manufacturers can provide OEM/ODM services, technical support, spare parts, and customized lighting solutions.
DLW Lighting specializes in professional moving head fixtures and stage lighting solutions for concerts, theatres, TV studios, touring productions, and entertainment projects.
Q5: What maintenance is required for moving head spot lights?
Regular maintenance includes cleaning optical components, checking cooling systems, updating firmware, inspecting mechanical parts, and ensuring proper storage conditions. Professional fixtures are designed for long-term rental and touring environments.
