Waterproof Linear Fixture
Outline

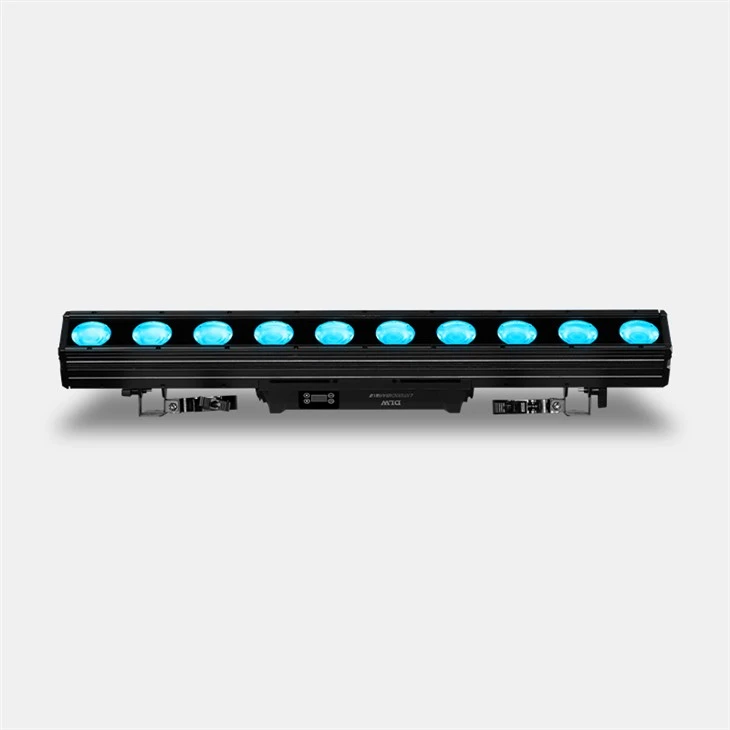

DLW L10100C4BAR IP – a lightweight 1,000 mm LED linear bar with fixed beam angles, featuring 10 × 100W RGBA LEDs for smooth color mixing and powerful output. Independent 10-zone frost control and a 1800K–10000K CCT range make it ideal for high-quality cyc lighting, enhanced by advanced pixel effects, true whites, and tungsten emulation.
DLW L10100C4BAR IP is a IP66 rated waterproof linear lighting fixture feature with variable-speed strobe and professional dimming expand creative possibilities, while DMX/RDM control and adjustable brackets ensure fast and easy setup, ideal for both indoor and outdoor applications
● 10 × 100W RGBA 4-in-1 LEDs
● Ra ≥ 90 R9 ≥ 90
● Advanced Pixel & Frost Control
● Color temperature 1800K–10000K
● Dimming & Strobe
Send Inquiry
Product Details of Waterproof Linear Fixture
Electrical parameters
Input voltage: AC100-240V 50/60Hz
Input power: 540 W
Maximum input current: 5.4 A
Light source parameters
Light source: 10 x 100W LED (RGBA 4in1)
Color Rendering Index (CRI): Ra ≥ 90 R9 ≥ 90
LED lifespan: 20,000 hours
Optical parameters

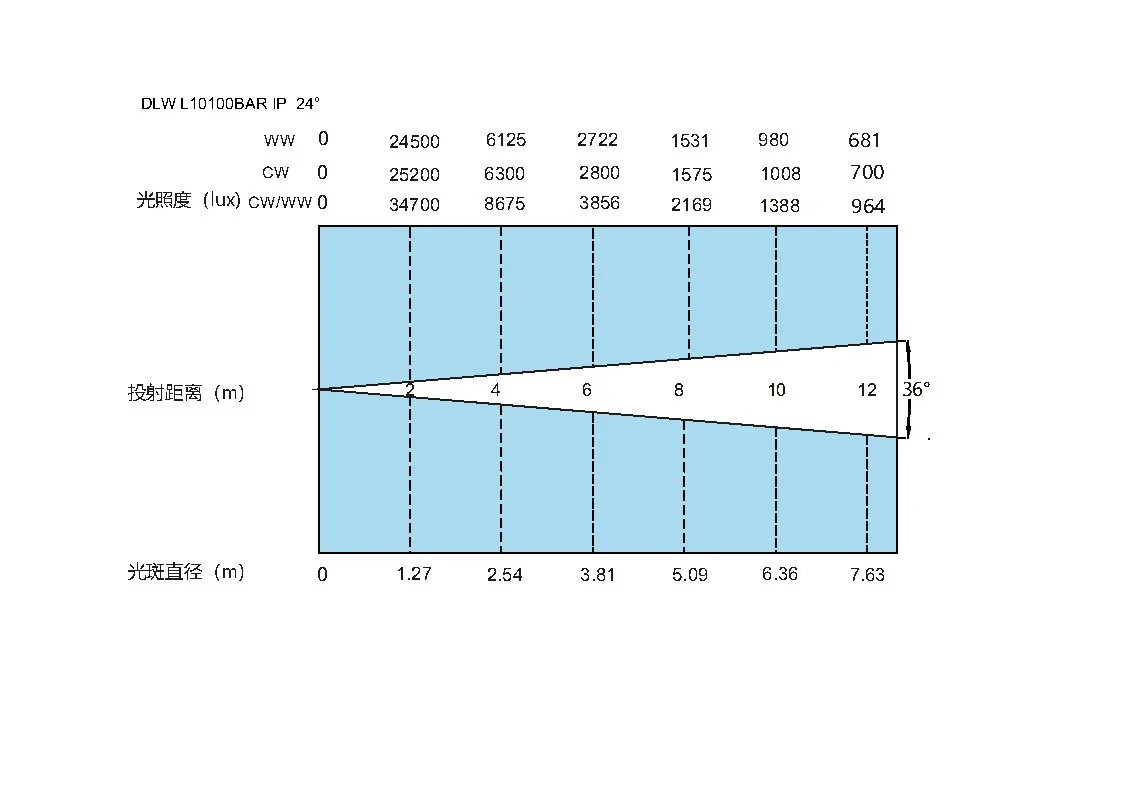

Beam angle: 24°/ 36°/60°
Effect system
Color: RGBA with lighting scene like a specify tungsten.
Strobe: 1-25Hz electronic strobe synchronous or random with variable speed.
Dimming: 0-100% smooth dimming with 4 curves.
Color temperature: varies linearly from 1800K to 10000K.
Electronic control
Control Mode: 11 CH / 43 CH;
Control protocol: DMX512, RDM; (optional: Art-Net, sACN)
Data Portals: Waterproof XLR-5;(optional Ethernet port :RJ45 In/Out
Power Portals : Waterproof Locking Power In/Out;
Menu display: OLED screen with4-touch buttons.
Electronic sensor detection, fan
intelligent detect and control temperature;
Size and weight
Product size: 1020X99X174 mm
Product net weight: 10 kg
Flight case size: 1090x640x584 mm (8 positions)
Flight case weight: 38 kg
Carton size: 1055x410x446 mm (4 positions)
Conditions of Use
Working environment temperature: -20℃~ 40℃
Protection rating: IP66
Specifications and documentation subject to change without notice.
