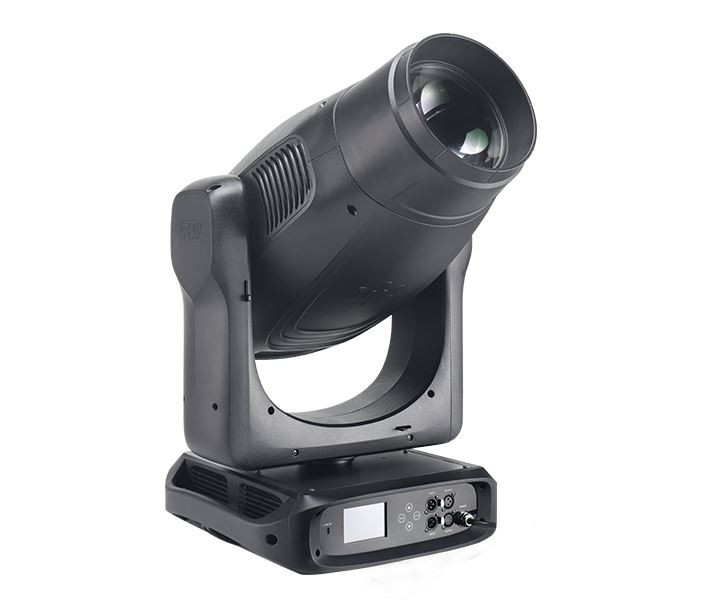

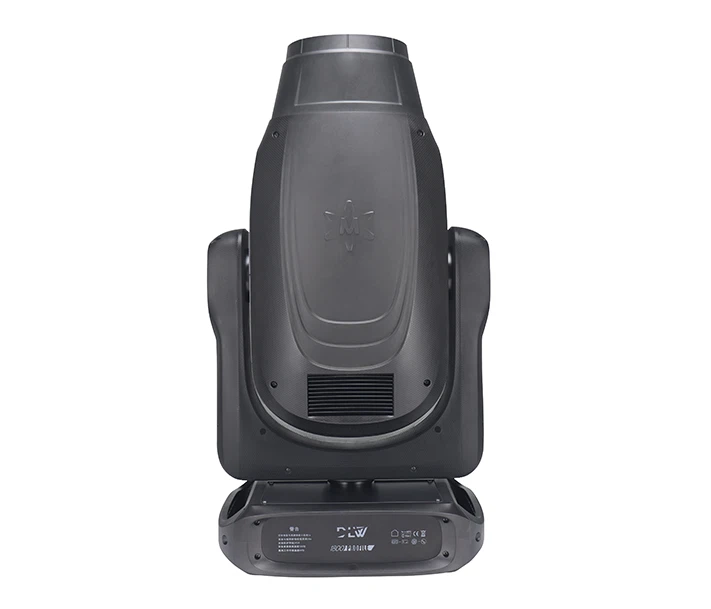

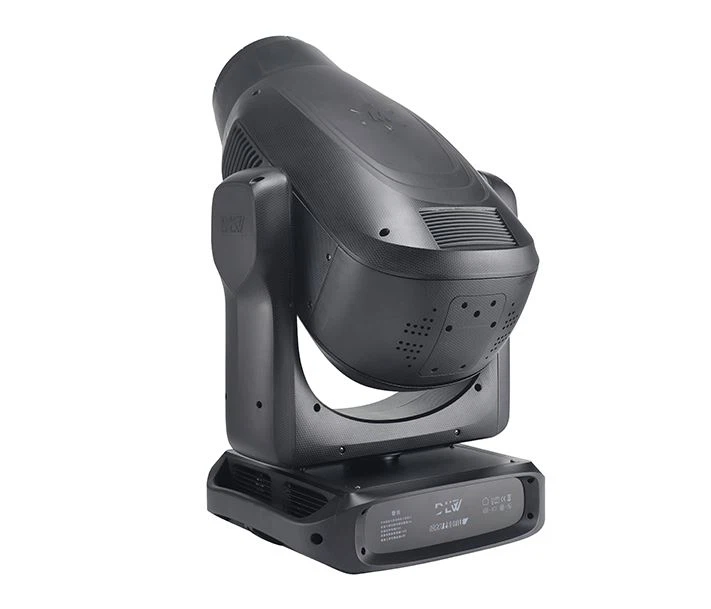

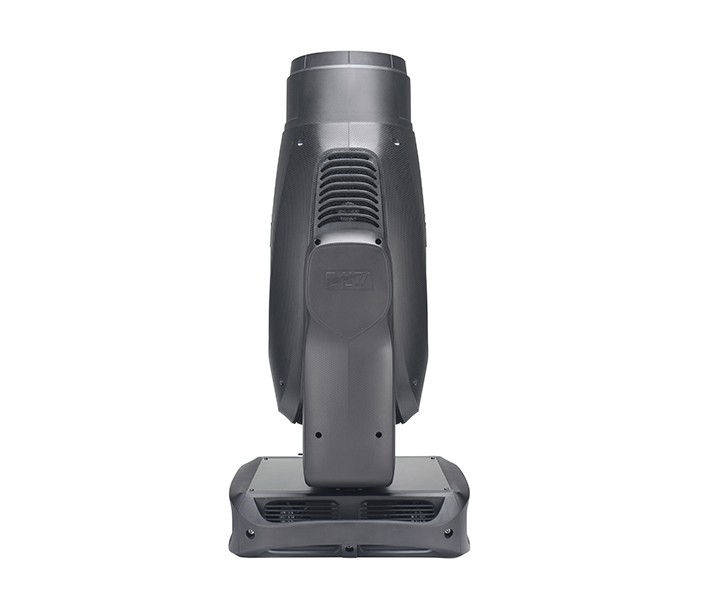

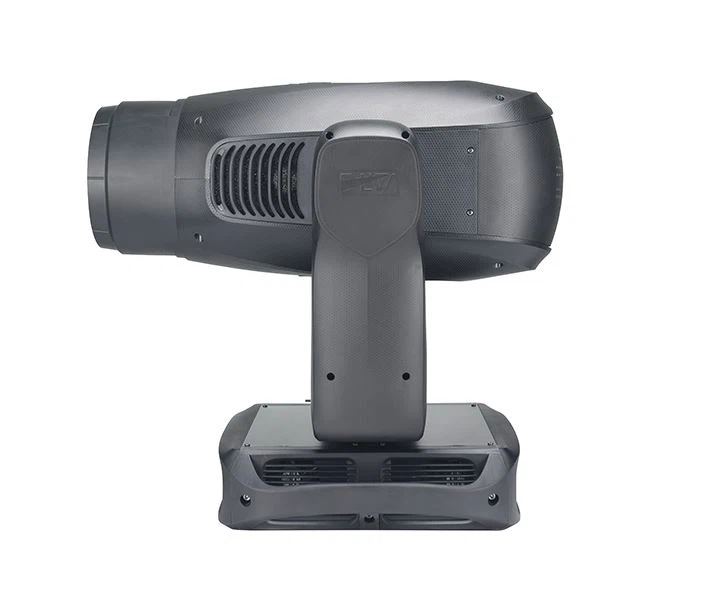

1400W Spot Moving Head

DREAM 1400 PLUS-S

Outline
DREAM 1400 PLUS-S is a moving head spot luminaire, high precision moving light aimed at long-throw applications, an extremely professional lighting solution for performance arts, theatres, concerts, TV & film and special events.
DREAM 1400 PLUS-S using OSRAM lok- it 1400-PS_Brilliant light engine, a large light-emitting lens of diameter 180mm, projecting strong, bold, high-intensity beams with a 5° to 55° zoom range. Three gobos wheels combined with a continuous rotating animation wheel add a significant advantage to the 1400W Spot moving head.
The fast smooth operation, feature-packed high precision moving light provides all the flexibility you require. The high color rendering capacity with cutting-edge CMY infinite color mixing system, linear CTO to adjust colour temperature, multi-color wheel provides full spectrum colors as what the lighting designer needs.

● Light source: OSRAM lok-it 1400-PS_Brilliant
● Zoom range: 5°~ 55°
● CMY+CTO
● One color wheel
● One static gobo wheel
● Two rotate gobo wheels
● One animation wheel
● Motorized iris
● One prism, dual frost filters
● Independent dimmer

Send Inquiry

Product Details of 1400W Spot Moving Head

Electrical

Input Voltage: AC200-240V 50/60Hz

Input Power: 1800W, PF≥0.98

Maximum input current: 9 A

Light Source

Light source: OSRAM lok-it 1400-PS_Brilliant

Color temperature: 6000 K

Expected lifespan: 750 Hours

Lamp base: PGJ28 Lok-it

Optics System

Reflection bowl: Europe imported reflection bowl, includes primary and secondary reflection bowl design

Lens: High-definition lens with anti-reflective film, optical lens diameter 180 mm

Total luminous flux output: 36000lm

CRI: Ra ≥ 95, R9≥ 90

Zoom range: 5°~ 55°

Color System

CMY infinite mixing, output high saturated color (RGB), pure color.

CTO color temperature linear adjustable 3200-6000K

One color wheel, has 7 color filters plus open, can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.

Gobo System

Two rotate gobo wheels, each has 6 gobos, the gobos can be indexing and bi-directional rotating, can be self-rotation, create effects of flowing water and shaking, the gobo wheel can be accurately controlled at 16bit.

One static gobo wheel with 7 gobos, the gobo wheel can create bidirectional flowing effect.

One animation wheel with continuous rotating effects, can imitate clouds, fire and flowing water effects.

Effect Configuration

One rotate prism (4-facet) with bidirectional rotation

Dual frost filters, high brightness output

Dimmer: independent 0-100% dimming control, multiple choice of dimming curves

Fast electric strobe, with speed adjustment from 0.8 to 15 flashes per second, multiple strobe options includes pulse, synchronous, asynchronous, random slow, medium and fast speed

High speed motorized iris 5-100% linear adjustment, built-in multiple macro functions

Fixture Movement

PAN = 540° - 16 bit

TILT = 270° - 16 bit

Electronic Control

DMX Channels: 25 Ch/ 29 Ch/ 42 Ch

Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)

Control Portals: XLR-5; RJ45 (optional)

Menu display: 3.5" LCD screen; Chinese and English language, menu available to be displayed 180° reversely

Intelligent control, electronic sensors testing, fan intelligent detection and control

Eco mode (sleep mode when standby)

Non-touching magnetic encoder positioning system for pan-tilt
