550 BSW Light
Outline
DLW 550BSW PRO, a compact moving head uses a premium PHILIPS MSD Platinum 25R light source to ensure exceptional performance. Zoom range linear change from 2° to 45°, bright sharp beam, crisp edge and uniform spot, the beautiful projection let you freely create multitude of beam splitting, wash and gobo shaping effects.
DLW 550BSW PRO is a 550w moving head features independent hot spot elimination function, three independent stackable prisms, switchable softening filter, rotating gobos, fixed gobos, continuous animation effect wheel, smooth CMY color mixing, linear CTO, and smooth running color wheel. It is an excellent all-in-one moving light.
● Light source: PHILIPS MSD Platinum 25R
● CMY+CTO
● Beam/Spot 2°~ 45°; Wash 8°~ 50°
● One color wheel
● One static gobo wheel
● One rotate gobo wheel
● One animation wheel
● One frost filter
● 3 prisms
● Multiple strobe options
● Motorized dimmer
Send Inquiry
Product Details of 550 BSW Light
Electrical
Input Voltage: AC200-240V 50/60Hz
Input Power: 750W, PF ≥ 0.98
Maximum Input Current: 3.75 A
Light Source
Light source: PHILIPS MSD Platinum 25R
Expected lifespan:1500 Hours
Optics System
Optical lens: High-definition lens coated with anti-reflective film
Zoom range: Beam/Spot: 2°-42°, Wash: 7°-47°
Color System
CMY infinite color mixing
CTO various color temperature, 3200-7000K linear adjustable

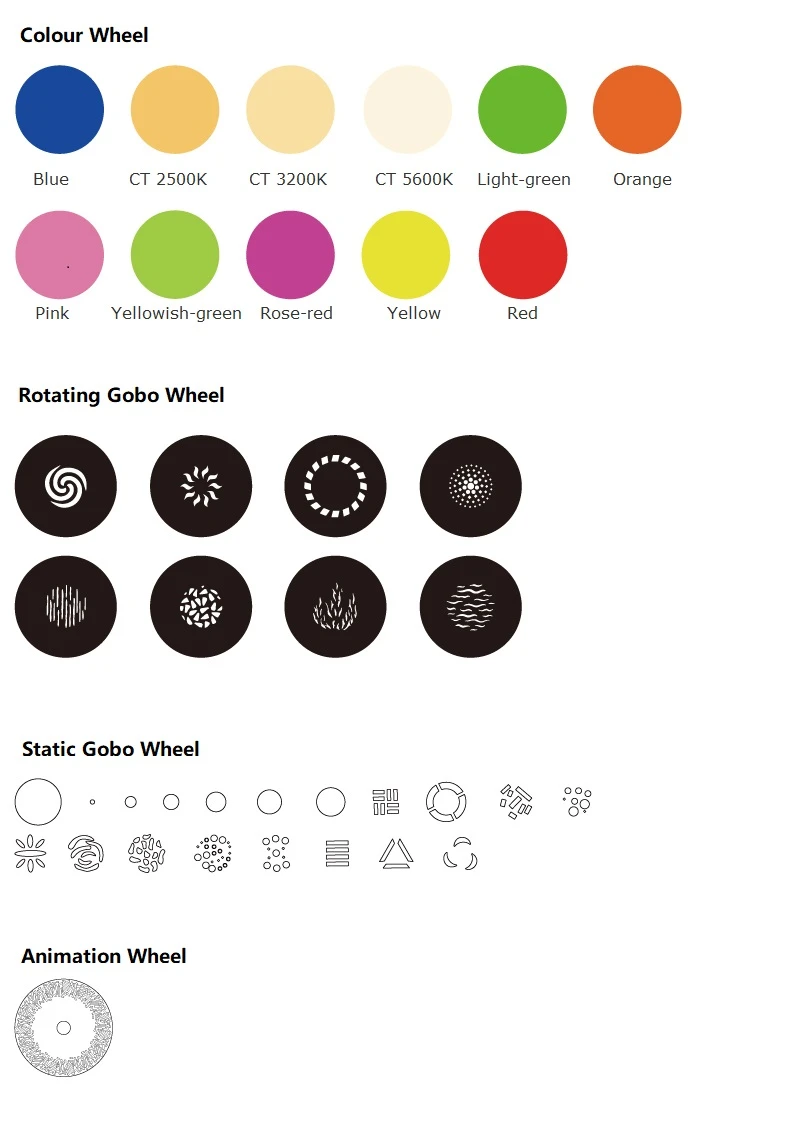

One color wheel with 11 color filters + open, rotate in both directions with rainbow, stepping, sliding gradient color mode
Gobo System
One rotate gobo wheel: 8 gobos + open; self-rotate, position addressable
One static gobo wheel: 12 gobos + 7 circles open, water flowing, shake effects.
One animation effect wheel
Effect Configuration
One independent frost filter
Mechanical Dimmer: 0-100% dimming control
Multiple strobe options: pulse, synchronous, asynchronous, random slow, medium, fast speed
3 prims: 24-facet circle + 8-facet circle + 6-facet linear, can be overlapped and rotated in both directions, create beams full of spatial sense.
Fixture Movement
PAN= 540° - 16 bit
TILT= 260° - 16 bit
Electronic Control
DMX Channels: 26 Ch/ 29 Ch/ 38 Ch
Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
Control Portals: XLR-3 + XLR-5; RJ45 (optional)
Locking Power :In/Out
Menu Display: 2.4" LCD screen; choice of Chinese and English language, menu available to be displayed 180° reversely
Built-in self-rechargeable battery, menu can be edited when without power supply (optional);
Support external charging bank to enter the menu to set address code and other settings
Energy saving and environmental friendly, power automatically decreases when shut down the bulb.
Eco mode (sleep mode when standby)
Electronic sensors testing, fan intelligent detection and control
Non-touching magnetic encoder positionable system for pan/tilt
Size & Weight
Fixture size: 417X417X705 mm
Fixture weight: 30 kg
Flight case size: 1050X550X810 mm (2 positions)
Flight case weight: 39 kg
Working Conditions
Minimum and maximum ambient temperature: -20℃~ 40℃
Protection rating: IP20
P.s. Specifications and documentation subject to change without notice. Test lab data may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, etc. The company reserves the right of final interpretation.
