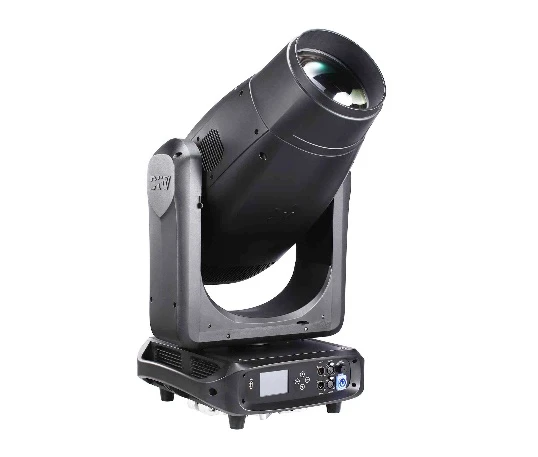

1400w Theatrical LED Stage Light

DREAM L1400R2 FLAG

Outline
DREAM L1400R2 FLAG is a precision high-output profile luminaire, powerful LED Moving Head BSWF with dual CRI, which utilize cutting-edge new TRANSFERABLE ENGINE white LED lighting technology, is truly 5-in-1 professional theatre stage light moving head.
DREAM L1400R2 FLAG lets designers can freely transfer the output between consistently High CRI and High brightness in one product. It means from the same fixture, the LEDs are TRANSFERABLE ENGINE to achieve Ra≥70 for maximum light output and optimal colour characteristics, to achieve Ra≥95 for the best lighting quality and colour rendition. So, one fixture fits all your needs, it can provide flexible lighting for multiple occasions without sacrificing output. With higher definition optics, 5°~ 50° zoom range, vibrant color mixing, variable color temperature correction (CTO), color wheel, DLW's innovative infinitely framing system, double-layer rotating gobos, full-featured animation wheel, two-frosts and dual prism effects, all housed in a stable case, make it best cost-effective in the same class. The superb features coupled with the dual CRI control can meet the application of any demand.

● Light source: 1400W White LED (dual CRI)
● Zoom range: 5°~ 50°
● CMY+ CTO
● One color wheel with 7 color filters
● Two layers of rotating gobo wheels
● One continuous animation wheel
● Infinite framing system
● High speed motorized iris
● Dual prisms
● Dual frost filters
● Linear adjustable dimmer

Send Inquiry

Product Details of 1400w Theatrical LED Stage Light

Electrical Parameters

Input Voltage: AC 200–240V, 50/60Hz
Power Consumption: 1650W, PF ≥ 0.98
Maximum Input Current: 8.25A

Light Source

Light Source: 1400W White LED with Dual CRI Technology

High Brightness Mode: Ra ≥ 70, delivering maximum light output with optimized color performance.

High CRI Mode: Ra ≥ 95, providing superior lighting quality and excellent color rendering.

High Brightness (Ra ≥ 70) and High CRI (Ra ≥ 95) modes are selectable within the same fixture through the onboard menu or DMX console.

LED Rated Lifetime: ≥ 20,000 hours

Optics & Photometric Data

Lens System: High-definition optical lens with anti-reflective coating

Zoom Range: 5°–50°

Color System

CMY infinite mixing, output high saturated color (RGB), pure color.

CTO color temperature linear adjustable 3200-6200K.

One color wheel, has 7 color filters plus open (included a CRI boost filter), can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.

Gobo System

Dual rotating gobo wheels, each equipped with 6 gobos.

Gobos support indexing and bi-directional rotation with continuous self-rotation capability.

Creates dynamic projection effects including flowing water, shaking, and moving patterns.

Gobo wheel positioning is precisely controlled via 16-bit control technology.

One animation wheel is included for creating dynamic effects such as clouds, fire, and flowing water.

Framing System

Complete infinite rotation framing system.

Equipped with 4 individually controllable full curtain blades.

Each blade features full variable angle adjustment throughout the entire insertion path.

Enables 360° infinite rotation and precise positioning of framing shapes without image distortion.

Effect Equipment

Two overlayable rotating prisms with bidirectional rotation capability and focus tracking.

Two overlayable frost filters with focus tracking.

0–100% smooth dimming control with:

4 selectable dimming curves

4 selectable dimming speeds

Electronic strobe effect with adjustable speed from 1–25 flashes per second.

Multiple strobe modes available.

High-speed motorized iris with 5–100% linear adjustment.

Built-in multiple macro functions and effect variations.

Fixture Movement Parameters

PAN = 540° - 16 bit

TILT = 270° - 16 bit

Electronic Control Technology

DMX Channels:37CH / 40CH / 60CH

Control Protocols:

DMX512, RDM, Art-Net, sACN
Wireless DMX function available as an option.

Control Connections:
XLR-3 + XLR-5
RJ45 network connection (optional)

Display & Menu System:

3.5" color LCD display.

Selectable Chinese and English language menus.

Display can be rotated 180° for convenient operation.

Optional Functions:

Built-in rechargeable battery allowing menu setup without external power supply.

Support connection with power bank for accessing menu settings, DMX addressing, and configuration adjustments.

Advanced Control Features:

Electronic sensor testing system.

Intelligent fan monitoring and automatic control.

Eco mode (standby sleep mode for energy saving).

Non-contact magnetic encoder positioning system for accurate pan and tilt movement.

Dimensions & Weight

Fixture Dimensions:470 × 470 × 894 mm

Net Weight:49 kg

Flight Case Size:760 × 550 × 890 mm (1 unit position)

Flight Case Weight:34 kg

Operating Conditions

Ambient Temperature Range:-20°C to +40°C

Protection Rating:IP20

FAQ:

1.What are the main applications of a 1400W LED theatre stage light?

1400W LED theatre stage light can be used for:

Theatre performances

Opera houses

Ballet shows

Musical productions

Concert touring

TV studios

Corporate events

Large entertainment venues

Performing arts centers

The DLW DREAM L1400R2 FLAG is designed as a professional profile moving head for multiple stage applications.

2.Why choose a 1400W LED moving head profile light for theatre?

1400W LED moving head profile light provides:

High brightness output

Precise beam shaping

Excellent color reproduction

Flexible positioning

Lower maintenance compared with traditional discharge fixtures

It allows lighting designers to achieve professional theatre lighting effects with fewer fixtures.

3.Is a 1400W theatre stage light powerful enough for large theatres?

Yes. A 1400W LED profile moving head is suitable for large theatres, auditoriums, and performance venues where high output and long-distance projection are required.

4.What is dual CRI technology in theatre lighting?

Dual CRI technology allows one fixture to switch between:

High brightness mode for maximum output

High CRI mode for superior color accuracy

The DLW DREAM L1400R2 FLAG supports selectable high brightness and high CRI operation from the same fixture.

5.What beam angle is suitable for theatre stage lighting?
A wide zoom range provides flexibility. The DLW DREAM L1400R2 FLAG offers a 5°–50° zoom range, allowing both narrow spot projection and wider stage coverage.

6.Why is high CRI important for theatre stage lighting?

High CRI improves:

Skin tone appearance

Costume color accuracy

Camera image quality

Natural stage presentation

It is especially important for drama, opera, ballet, and TV productions.

7.What makes a professional theatre moving head light different?

Professional theatre moving heads usually include:

High CRI output

Accurate framing shutters

Smooth dimming
