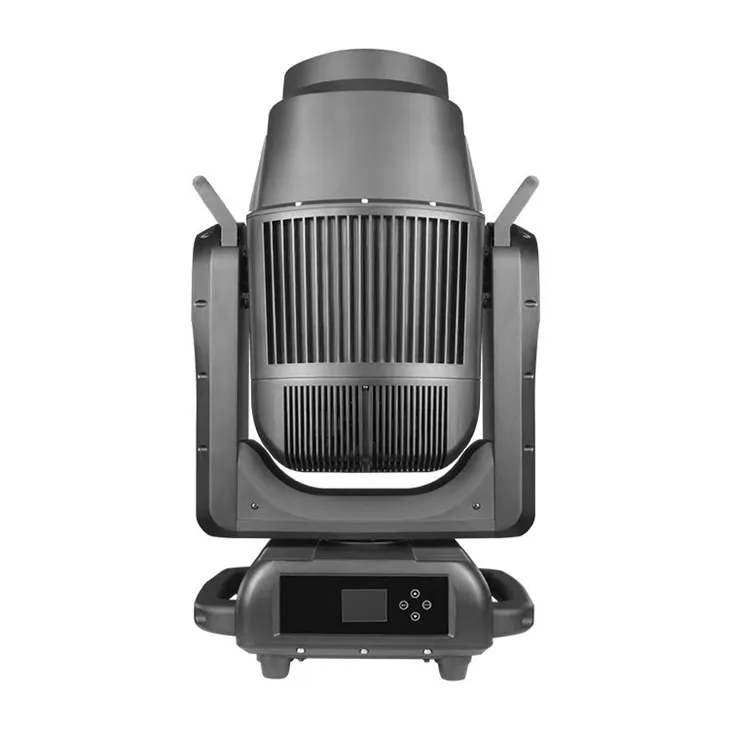

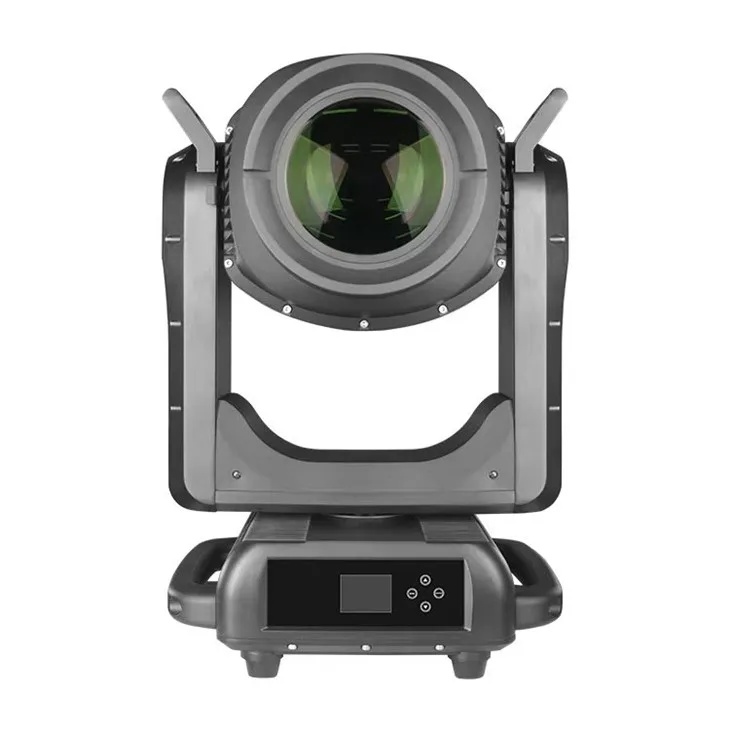

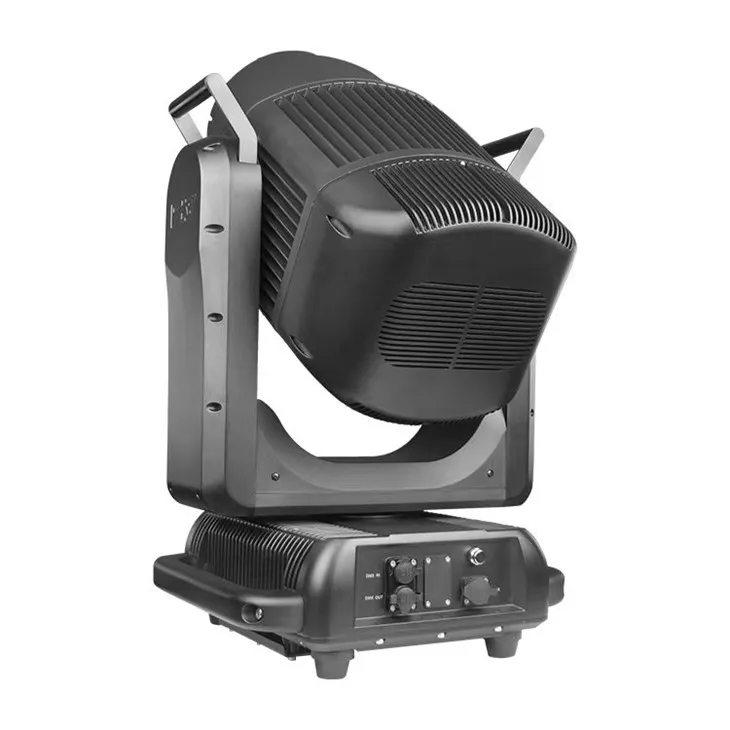

Outdoor IP66 Framing Profile Fixture

DLW L1000PRO IP
DLW L1000HPRO IP

Outline:
DLW L1000PRO IP is a high bright, multi-functional luminaire, moving head Pro with framing. The intelligent moving head has a powerful light source of 1000w white LED engine. It also has a fast zoom range from 6° to 52° and fine optics lens. The luminaire protection is IP66 rated, is the perfect fixture for any outdoor application needing outstanding output, bright and powerful wash, as well as spectacular colours and effects. It offers outstanding performance in any environment.
With 7 dichroic colours, 7 rotating gobos, an animation wheel, 2 frosts, 2 prims, a high-speed iris, variable dimming curve modes, the intelligent moving head DLW L1000PRO IP offers the designer a complete solution to perfectly shape the show. The full blackout shutter frame system is provided with cutting edge technology, which allows for endless rotation and exact beam shape adjustment.
The moving head DLW L1000PRO IP has the ability to cut through at great distances in any outdoor concert, special events, and with its fully dust and waterproof design. DLW L1000PRO IP, the outdoor IP66 rated framing profile fixture is an ideal for theme parks and cruise ships or any application that benefits from its sealed IP66 housing.

● Light source: 1000W white LED module
● Zoom range: 6°~ 52°
● CMY + CTO
● One color wheel
● One rotate gobo wheel
● One animation wheel
● One complete framing system
● Motorized iris, linear adjustment
● Dual prisms, dual frost filters
● Linear adjustable dimmer
● Protection rate: IP66

Send Inquiry

Product Details of Outdoor IP66 Framing Profile Fixture

Electrical

Input Voltage: AC100-240V 50/60Hz

Maximum input Power: 850W/100V, 1150W/220V
Maximum input current: 8.5A/100V, 5.3A/220V

Light source

Light source: 1000W White LED module (choice of high brightness or high CRI mode)

Ra ≥ 70 (DLW L1000PRO IP high brightness version)

Ra ≥ 90 (DLW L1000HPRO IP high CRI version)

LED module lifespan: 20000 hours

Optics & Photometric Data

Frontal lens: High-definition lens with anti-reflective film

Zoom range: 6°~ 52°

Color System

CMY infinite mixing, output high saturated color (RGB), pure color.

CTO color temperature linear adjustable 3200-6200K

One color wheel, has 7 color filters plus open (included a CRI boost filter), can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.

Gobo system

One rotate gobo wheel with 7 gobos, the gobos can be indexing and bi-directional rotating, can be self-rotation, create effects of flowing water and shaking, the gobo wheel can be accurately controlled at 16bit.

One animation wheel.

Framing system

One complete framing system, 4 x individually controllable curtain blades, can make the framing graphics 360° infinite rotating and accurately positioning, without distortion.

Effect equipment

Two prisms (4-facet linear + 6 facet circle), with rotation in both directions, can overlay and follow focus.

Two frost filters with high bright output.

0-100% electronic dimming control, 4 choice of dimming curves, 4 choice of dimming speeds.

Electronic strobe 1-25HZ, with multiple strobe options.

High speed motorized iris 5-100% linear adjustable, built-in macro multiple effect variation.

Fixture Movement Parameters

PAN= 540° - 16 bit

TILT= 270° - 16 bit

Electronic Control

DMX Channel: 32 Ch/ 35 Ch/ 60 Ch

Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
