BSWF LED Moving Head

DREAM L650 BSWF
DREAM L650H BSWF

Outline

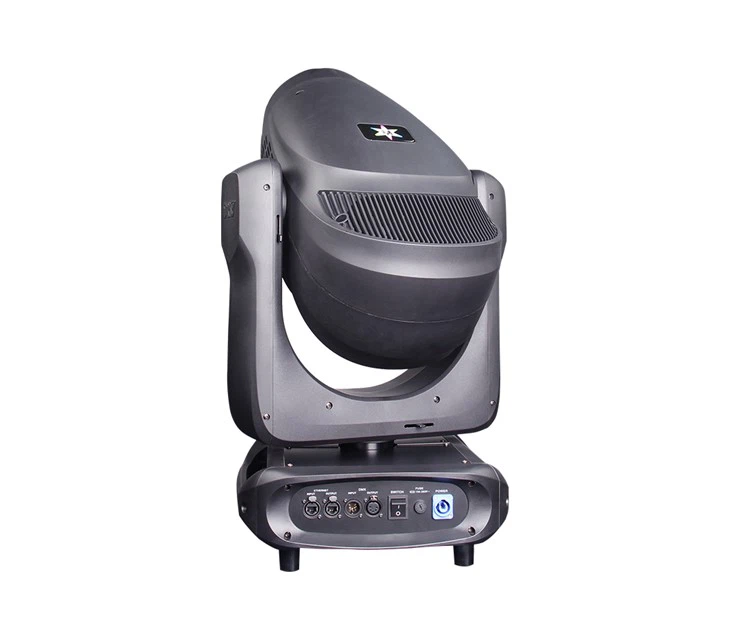

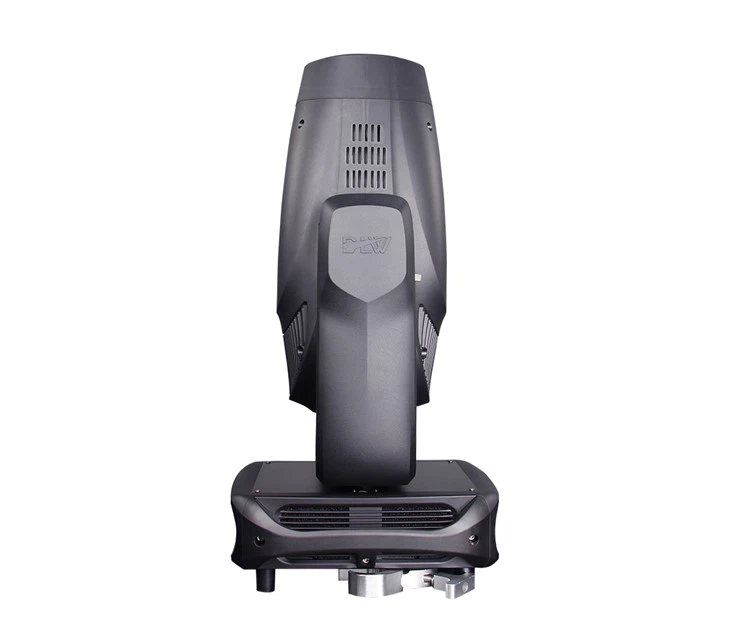

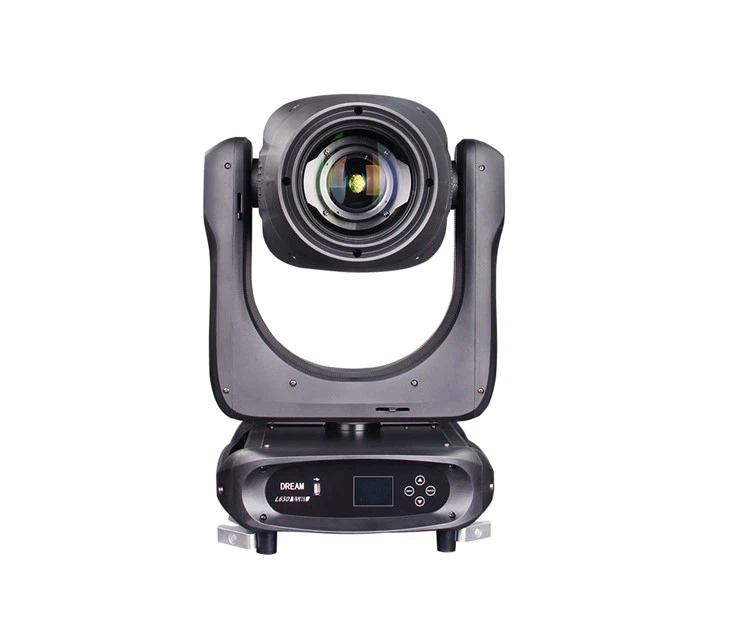

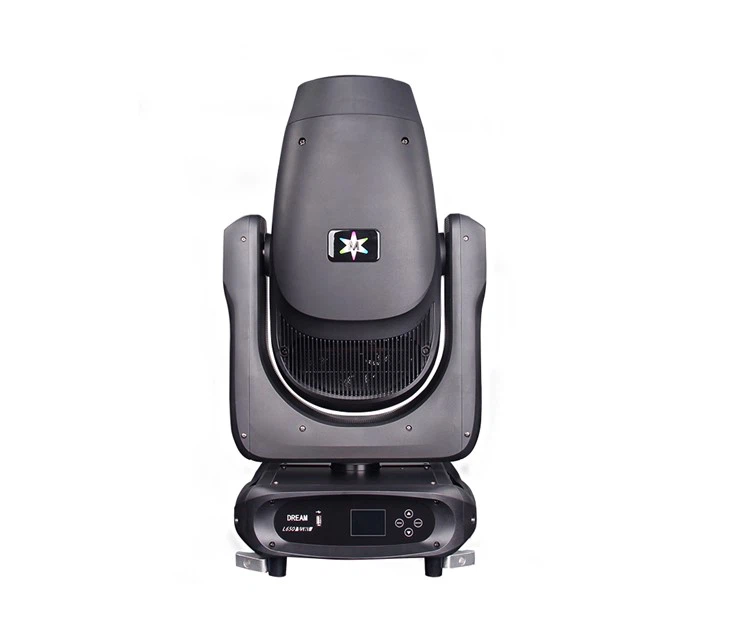

This is a precision-focused, full-featured LED moving head combines Beam, Spot, Wash and precise framing capabilities in one versatile fixture.
The BSWF LED Moving Head fixture is compacted and powerful, is a well design flexible fixture for for theatres, touring productions and entertainment venues, providing an excellent return on investment for users. With light engine of 650W white LED module and refined optics, it projects a uniform lighting across the light-spot, also provides 4 dimming curves and 4 dimming speeds for choice of use, have linear dimming effect in low-light. Its advanced features include a wide range of linear zoom range of 6°~ 56°, electronic dimming and strobe, linear CMY+CTO filter and smooth running color wheel create endless colors, fast iris for beam adjustment 5-100%, includes 7 rotate gobos and 8 static gobos in two gobo wheels. The fixture configured with DLW's innovative profile framing system, deliver a high degree of flexibility for the lighting designer as the full blades can be separate movement and fast operation, the complete framing can be bi-directional infinite rotating (360° continuous rotate). Having dual rotating prisms dual frost effects, auto follow focus and zoom in zoom out, the fixture delivers stunning visual effects, advanced in its class.

Key Features Hightlights
High performance: 650W white LED module with 6°–56° motorized zoom
High precision: Precise CMY Colour Mixing for Consistent Results
Advanced framing: 4 independently controllable blades with continuous 360° rotation
Versatile effects: Beam, spot, wash and framing in one fixture

Send Inquiry

Product Details of BSWF LED Moving Head

Model	Version	CRI	Recommended application
DREAM L650 BSWF	High-brightness version	Ra ≥ 70	Concerts, touring productions and applications requiring maximum output
DREAM L650H BSWF	High-CRI version	Ra ≥ 95	Theatre, television, studio and camera-facing applications

Technical Specifications

Electrical
Input voltage	AC 100–240V, 50/60Hz
Maximum power consumption	800W
Power factor	PF ≥ 0.98
Maximum input current	8A

Light Source

Model	DREAM L650 BSWF	DREAM L650H BSWF
Input power	650W	650W
LED type	High brightness white LED module.	High CRI white LED module.
CRI	Ra ≥ 70	Ra ≥ 95
L70 lifespan	20000 hours	20000 hours

Optical System
Optical system	HD optical lens with anti-reflection coating

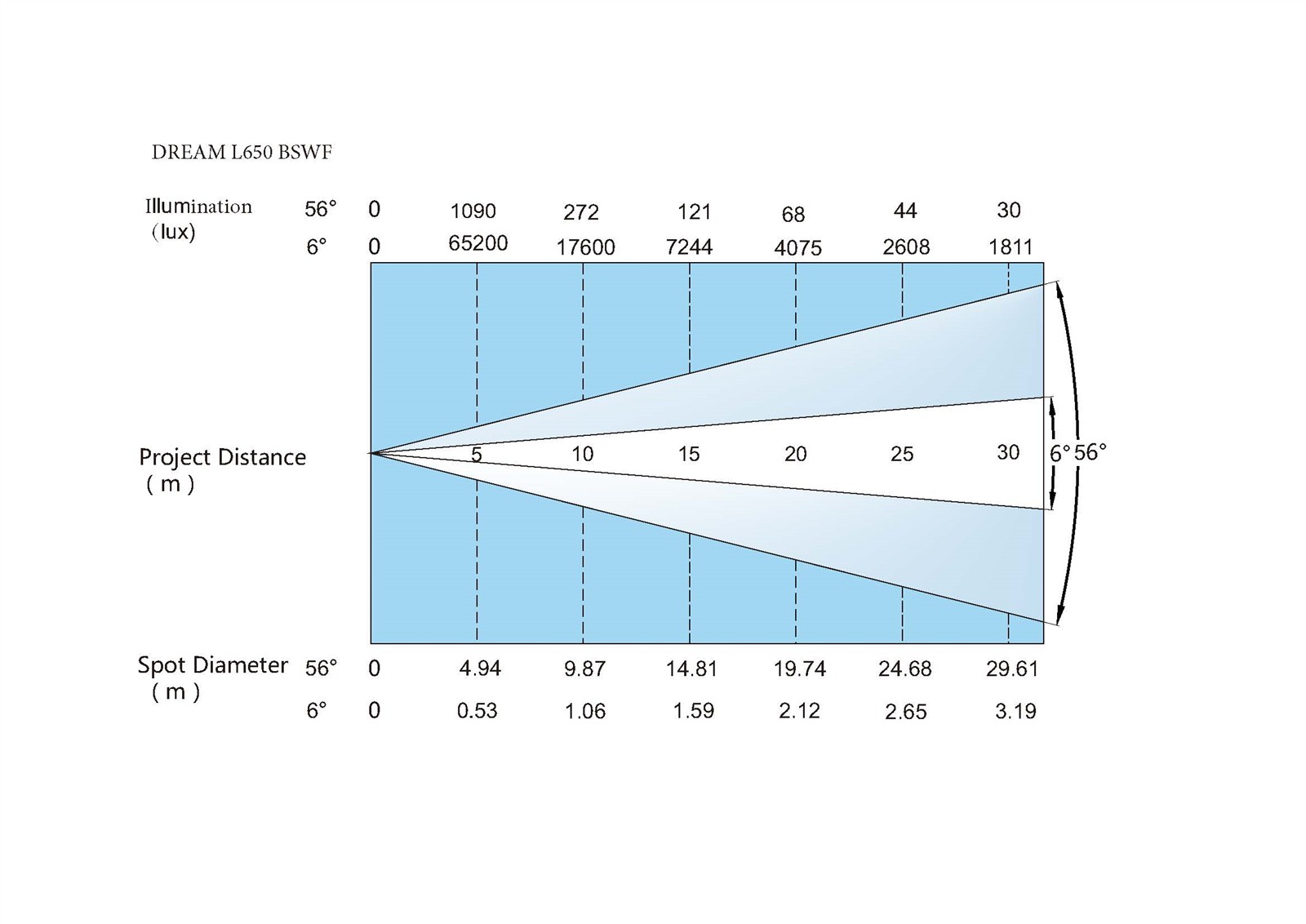

Zoom range	6°–56°
Zoom type	Motorized linear zoom
Focus	Motorized focus
Color System
CMY system	Infinite CMY colour mixing
CTO system	Linear CTO adjustment, 3200K–6300K
Color wheel	7 colour filters plus open, CRI boost filter included
Color-wheel effects	Bidirectional scrolling, rainbow, stepping, sliding fade and random colour modes

Gobo System
Gobo wheel	Rotating Gobo Wheel	Static Gobo Wheel
Number of gobos	7 rotating gobos	8 static gobos
Gobo functions	Indexing, bidirectional rotation	Indexing
Control resolution	16-bit	16-bit
Wheel movement	Bidirectional scrolling	Bidirectional scrolling

Framing System
Framing blades	4 individually controllable full-curtain blades
Framing rotation	Continuous 360° bidirectional Infinite rotation
Positioning	Accurate positioning without distortion
Effects
Prism 1	4-facet linear prism
Prism 2	6-facet circular prism
Prism operation	Independent or overlapping operation
Prism rotation	Bidirectional rotation
Frost filters	2 atomizing frost filters
Dimming range	0–100% electronic dimming
Dimming curves	4 options
Strobe	Electronic strobe, 1–25Hz
Iris	Motorized iris, 5–100% linear adjustment
Movement
Pan range	540°
Tilt range	270°
Positioning resolution	16-bit pan and tilt control
Control and Connectivity
DMX channel modes	32 / 35 / 60 channels
Standard protocols	DMX512, RDM
Optional protocols	Art-Net, sACN and wireless control

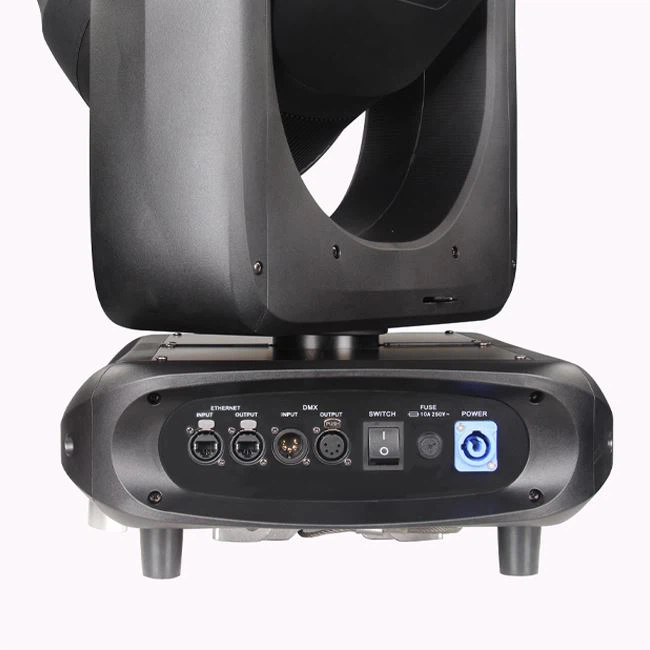

Standard data connectors	XLR-3 and XLR-5 In/Thru
Optional data connector	RJ45 Ethernet In/Out
Power connector	Waterproof locking power In

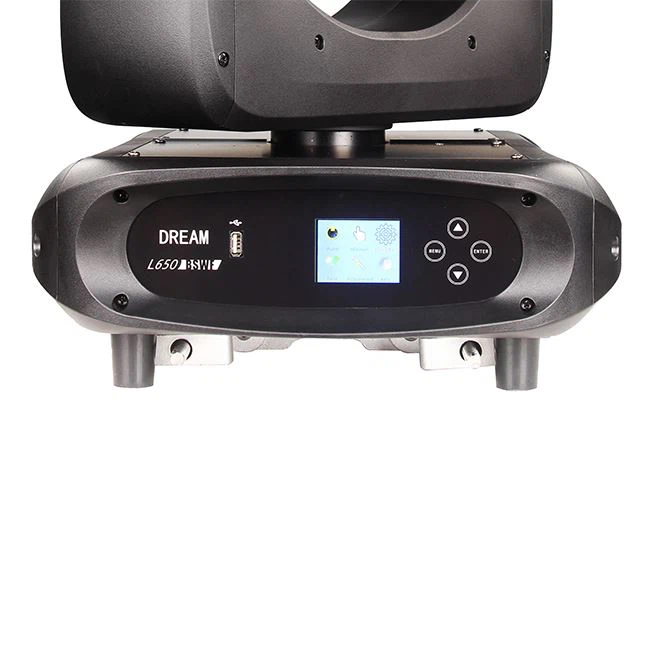

Display	2.4-inch LCD screen
Display languages	Chinese and English
Display orientation	180° reversible display
Intelligent Functions
Optional Built-in battery	self-rechargeable battery for menu operation
USB support	Supports power bank for power to enter menu display and edit address
Sensor monitoring	Electronic sensor monitoring
Fan management	temperature detection and controllable fan operation
Eco mode	Sleep mode during standby
Pan/Tilt control	Non-contact magnetic encoder positioning system
Dimensions and Weight
Fixture dimensions	417 × 417 × 767 mm

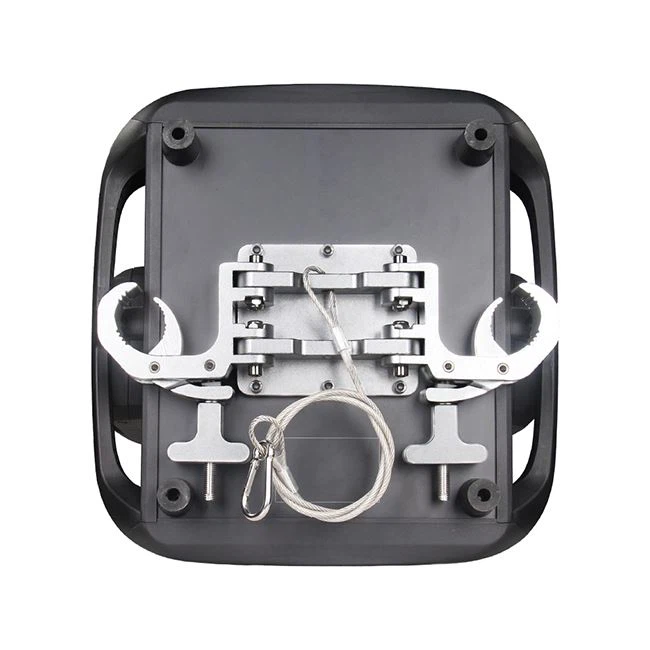

Integrated hook	Included
Fixture net weight	34 kg
Flight case capacity	2 fixtures
Flight case dimensions	1045 × 648 × 845 mm
Flight case weight	43 kg
Operating Conditions
Ambient temperature	−20°C to 40°C
Fixture protection rating	IP20

*Specifications and documentation subject to change without notice. Test lab data may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, etc. The company reserves the right of final interpretation.*

FAQ

What does BSWF mean?
BSWF refers to Beam, Spot, Wash and Framing. The fixture combines these four functions in one LED moving head.

What is the difference between the L650 BSWF and L650H BSWF?
The L650 BSWF is the high-brightness version with a CRI of Ra ≥ 70. The L650H BSWF is the high-CRI version with a CRI of Ra ≥ 95.

What is the zoom range?
The fixture has a 6°–56° linear motorized zoom range, supporting both narrow beam effects and wider wash coverage.

Does the fixture have an infinite rotating framing system?
Yes. The framing system supports independent blade movement and continuous bi-directional 360° contiuous rotation.

How many gobo wheels are included?
The fixture includes 2 gobo wheels, one rotating gobo wheel with 7 rotating gobos and one static gobo wheel with 8 static gobos.

Does it support CMY and CTO?
Yes. The fixture uses linear CMY colour mixing and linear CTO colour correction.

Is the fixture suitable for television production?
The high-CRI L650H BSWF is more suitable for camera-facing applications where colour rendering is important.

User Manual

367002600020 DREAM L650(H) BSWF User Manual Version E
