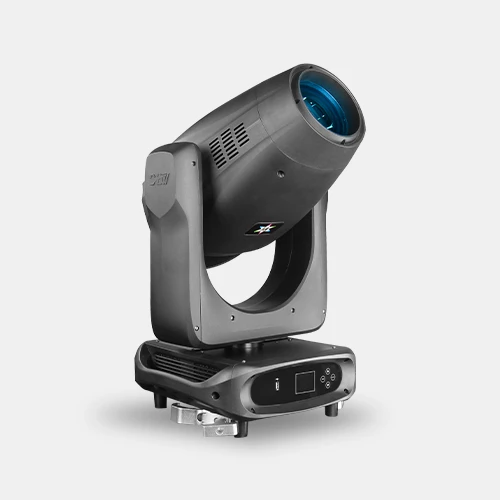

LED Yoke Profile Fixture

DLW L1000 PRO
DLW L1000H PRO

Outline
DLW L1000 PRO is a state-of-the-art LED yoke profile fixture that offers a comprehensive range of features.
DLW L1000 PRO, the cutting-edge theatrical luminaire is equipped with a new 1000W white LED engine and advanced optics, ensuring a super-flex output. It has an ultra-wide and quick 6° to 56° zoom, a CMY colour mixing system produces rich and saturated colours, while the linear CTO colour correction ensures accurate color reproduction. Additionally, the fixture includes 7 dichroic colours, 7 rotating gobos, and four full blackout framing blades with infinite rotation for graphic projections and shaping. It also offers a bi-directional animation wheel, 4-facet linear and 6-facet circular rotating prisms, 2 frost filters, motorized iris and auto-focus feature further enhance its capabilities to deliver various lighting effects in the air. Furthermore, the DLW L1000 PRO features 16-bit pan and tilt movement, variable dimming curves, and high-speed strobe effects.
With its professional-grade performance and versatility, obviously this hybrid moving head with framing system is the optimal choice for shows, theovatres, concerts, and broadcasts.

● Light source: 1000W White LED light engine
● Zoom range: 6°~ 56°
● CMY + CTO
● One color wheel
● One rotate gobo wheel
● One animation wheel
● One infinite framing system
● Motorized iris
● Dual prisms, dual frost filters
● Linearity Dimmer

Send Inquiry

Product Details of LED Yoke Profile Fixture

Electrical Specification

Input Voltage: A100-240V 50/60Hz

Input Power: 1150W, PF ≥ 0.98

Maximum input current: 11.5 A

Light Source

Light source: 1000W White LED light engine (choice of high brightness mode or high CRI mode)

Ra≥ 70 (DLW L1000 PRO high brightness version)

Ra≥ 95 (DLW L1000H PRO high CRI version)

LED expected lifespan: 20000 Hours

Optics & Photometric Data

Frontal lens: High-definition lens with anti-reflective film

Zoom range: 6°~ 56°

Color System

CMY infinite mixing, output high saturated color (RGB), pure color.

CTO color temperature linear adjustable 2700-6200K

One color wheel, has 7 color filters plus open (included a CRI boost filter), can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.

Gobo System

One rotate gobo wheel with 7 gobos, the gobos can be indexing and bi-directional rotating, can be self-rotation, create effects of scrolling and shaking, the gobo wheel can be accurately controlled at 16bit.

One animation wheel, can simulate dynamic clouds, fire and scrolling effects.

Framing System

One complete infinite rotatable framing system, 4 x individually controllable full curtain blades, can make the framing graphics 360° infinite rotating and accurately positioning, without distortion.

Effect Equipment

Two prisms (4-facet linear + 6 facet circle), with rotation in both directions, can overlay and follow focus.

Two frost filters with high bright output.

0-100% electronic dimming control, 4 choice of dimming curves, 4 choice of dimming speeds.

Electronic strobe 1-25HZ, with multiple strobe options.

High speed motorized iris 5-100% linear adjustable, built-in macro multiple effect variation.

Fixture Movement Parameters

PAN = 540° - 16 bit

TILT = 270° - 16 bit

Electronic Control Technology

DMX Channels: 32 Ch/ 35 Ch/ 60 Ch

Control Protocols: DMX512, RDM; (optional : Art-Net, sACN, wireless function)
