PAR 54 LED
Outline

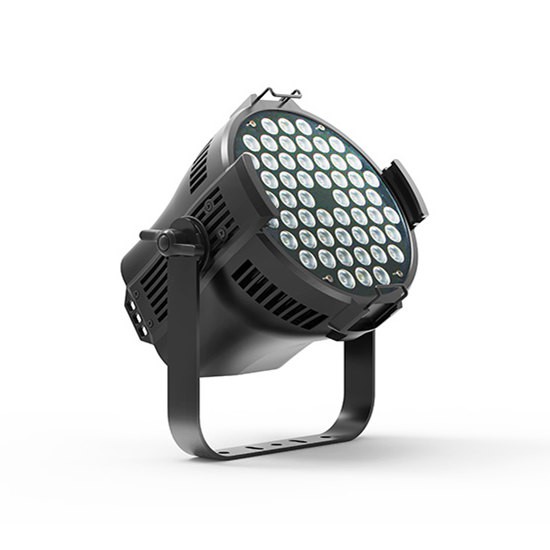

DREAM 854C4 PAR is an LED-based static PAR light fixture that offers exceptional performance. This par can is designed for quick and easy installation. Its 54 x 8W RGBW light engine, along with a high-efficiency optical lens, ensures a great lighting experience. The uniform color mixing and pure color output result in high saturated colors that enhance any setting.
One of the standout features of this LED Par light is its rapid-focus system, you have the option to choose a fixed focus between 25°, 45°, or 60° angles. Additionally, the built-in program offers a wide range of macros, eliminating the need for a DMX controller during shows. By simply clicking a button, the master/slave mode creates stunning lighting effects effortlessly.
With these LED par cans, you can easily cover the stage with vibrant colors, illuminating architectures, halls, scenery settings, or corporate events.
● Description: LED Par Can RGBW
● DMX: 5-pin XLR In/Out
● DMX Modes: 4/9 channels
● LEDs: 54 x 8W
● LED Type: RGBW
● Beam Angle: 25°/45°/60° (select one)
● Effects: strobe, dimming, preset color macros and fading
● Power Consumption: 200W
● Power Supply: 100-240V, 50/60 Hz
● Dimensions: 295X206X271 (mm)
● Weight: 3.5Kg
Send Inquiry
Product Details of PAR 54 LED
Electrical Specification
Input voltage: AC100-220V 50/60Hz
Input power: 200W
Maximum input current: 2A
Light Source
Light source: 54 x 8W RGBW LED
LED lifespan: 50,000 hours
Optics & Photometric Data
Beam angle: 25°/45°/60° (selectable)
Color System
Red, green, blue and white, independent controllable
Effects Configuration
0-100% independent linear dimming
Fast strobe: 1-25Hz
Color macro and color fade effect
Construction
Aluminum alloy die-casting shell
Electronic Control Technology
Control Mode: 4ch/9ch
Control Protocols: DMX, RDM
Data Portals : XLR-5 In/Out
Power Portals : IP20 Locking Power In/Out
Display: LED display with 4 buttons
Color starting brightness setting; over-current, over-voltage, over-temperature protection;
Temperature sensor detection, intelligent adjustment of light source power;
Master-slave control mode.
Size and Weight
Fixture size: 295X206X271 (mm)
Fixture Net weight: 3.5 kg
Carton size: 260x260x315 (1 positions)
G. W. : 4.2 kg (1 position carton)
Carton size: 545x545x345 mm (4 positions)
G. W. : 18.5 kg (4 position carton)
Working Conditions
Working temperature: -20℃~40℃
Protection class: IP20
Specifications and documentation subject to change without notice.
