DREAM 400C7 BRIGHT

Outline

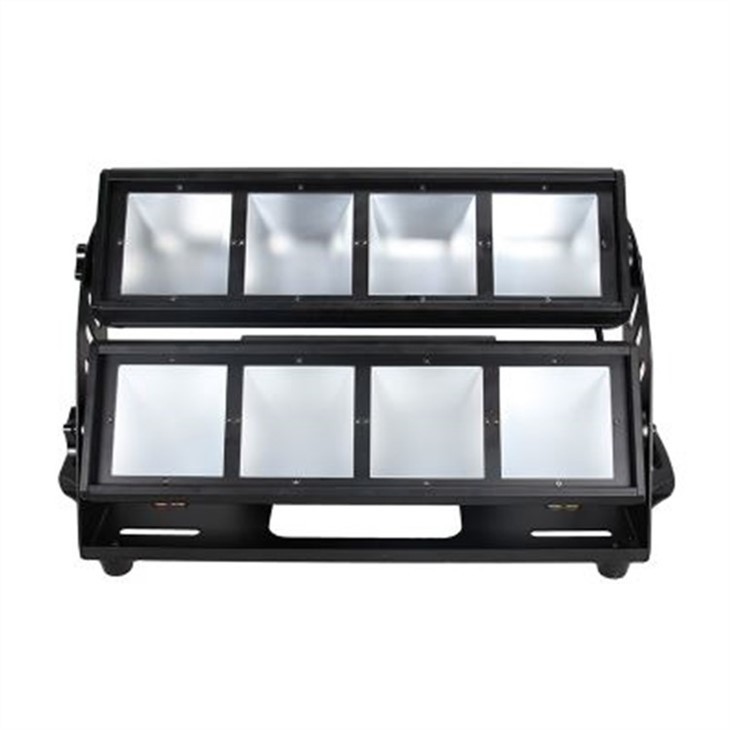

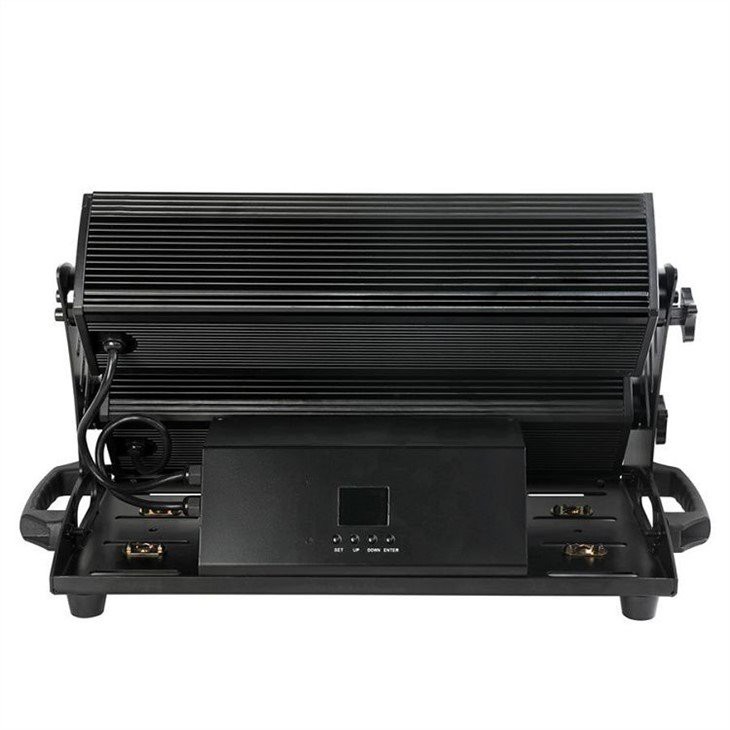

DREAM 400C7 BRIGHT cyc stage lighting is an extraordinary LED cyc light that offers impeccable color mixing capabilities, ensuring seamless coverage of a stage's cyclorama.
The fixture utilizes 7-color LED light source and unique asymmetric optics with wedge-shaped Reflector, combined with an advanced HSIC color mixing system. This innovative system allows for quick and precise color mixing, resulting in extremely uniform color output.
One of the standout features of this LED cyc light is its ability to rapidly create premium white light, with a color temperature range of 2700k-9000k. Additionally, the DREAM 400C7 BRIGHT cyc stage lighting boasts a high Color Rendering Index (CRI) of Ra ≥ 90, ensuring accurate color representation. These features make this LED cyc light an ideal choice for theaters and professional performances, serving as a perfect cyclorama lighting solution and wall washer light.

● 7-color LED light source
● High CRI (Color rendering index)
● Linear dimming
● Color temperature 2700k-9000k
● Two-zone independent color control
Send Inquiry
Product Details of CYC Stage Lighting

Electrical Specification

Input voltage: AC100-240V 50/60Hz

Input Power: 400W

Maximum input current: 4A



Light Source

Light source: Imported 7-color LED; Red*48, Green*32, Blue*24, Deep Blue*16, Cyan*16, Amber*24, Greenish-yellow*40

Light source expected lifespan: 50000 hours

Color temperature: 2700k-9000k

CRI (Color rendering index): Ra≥90



Optics & Photometric Data

Zoom range: wedge-shape reflector 45*60°

Color range: 16,750,000 colors



Effect Configuration

Dimmer: 0-100% electronic linear adjustment, 16 bit, multiple choice of dimming curves



Electronic Control

Channels: 7CH/ 9CH/ 11CH/ 14CH/ 17CH/ 22CH

Control Protocols: DMX, RDM

Data Portals : XLR-5 In/Out

Power Portals : IP20 Locking Power In/Out

Menu display: LCD screen plus 4 buttons

Color mixing system: HSIC (Brightness/ Color tone/ Saturation/ Color temperature)



Size & Weight

Fixture size: (622X333X352) mm

Fixture weight: 17.6 kg

Flight case size: (820x750x610) mm (2 positions)

Flight case weight: 45 kg

Carton size:760x450x445 mm (1 positions)

G.W. : 24.6 kg



Working Conditions

Working environment temperature: -20℃~ 40℃

Protection rate: IP20

Specifications and documentation subject to change without notice.



Dimension

DREAM 400C7 Bright - dimension
