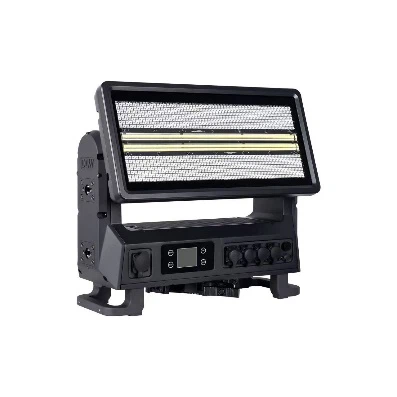

Hybrid Strobe Fixture
Outline
The DLW L1176DC4ST IP Hybrid Strobe fixture is a high-energy wash, flash, and strobe fixture designed to deliver intense visual impact across stages and audiences alike. Built for all environments, it combines exceptional brightness, power, and versatility to elevate any show.
With ultra-fast response and 175° tilt control, it enables dynamic positioning and precise coverage, offering outstanding flexibility for creative lighting design.
Equipped with 392 × 2W white LEDs (28-segment control) and 784 × 1.5W RGB LEDs (14-segment control), the L1176DC4ST IP strobe fixture delivers powerful output with striking visual presence.
Advanced strobe capabilities include flash rates from 0–30 Hz, along with built-in effect macros such as ramp up/down, random, single, and sequenced flashes—allowing fast programming and precise control.
Optimized beam angles of 60° (white LEDs) and 120° (RGB LEDs) ensure broad and even coverage, while smooth linear dimming maintains excellent performance even at very low light levels.
Engineered with IP66-rated protection, the fixture is built for reliable operation in any environment, making it ideal for both indoor and outdoor applications.
Send Inquiry
Product Details of Hybrid Strobe Fixture
Electrical Parameters
Input Voltage: AC100-240V 50/60Hz
Maximum Input Power: 1500W
Maximum Input Current: 15A
Light Source
Light source: 392 x 2W White LEDs with 28-segment control
784 x 1.5W RGB LEDs with 14-segment control
Optics & Photometric Data
Beam Angle: White light 60°
RGB light 120°
Effect Configuration
Dimming: Electronic
Shutter/Strobe: Electronic
Strobe rate: 0-30Hz
Independent Color Mixing: Supported
Dimming Mode: 4 dimming curves, 0-100%dimming
Built-in Auto Program: Supported
Fixture Movement
Y-axis oscillation angle: +/-90°
Electronic control
Control channel: 8 CH / 11 CH / 13 CH / 24/ CH / 30 CH / 47 CH / 68 CH / 74 CH / 97 CH;
Control Protocols: DMX512, RDM; Art-Net,sACN (optional)
Data Portals: Waterproof XLR-5 +RJ45 In/Out)
Power Portals : Waterproof Locking Power In ;
Menu Display: 1.77-inch color LCD
Electronic sensor detection, intelligent fan detection and control
Vertical movement, non-contact magnetic
rotary encoder positioning
Size and Weight
Fixture size: 408x202x338 mm
Fixture net weight: 12 kg
Flight case size:1075x485x562 mm (4positions)
Flight case weight: 28 kg
Carton size:470x405x265 mm (1 positions)
Carton size:485x420x560 mm (2 positions)
Working Conditions
Working environment temperature: -20℃~ 40℃
Protection rate: IP66
Specifications and documentation subject to change without notice.
