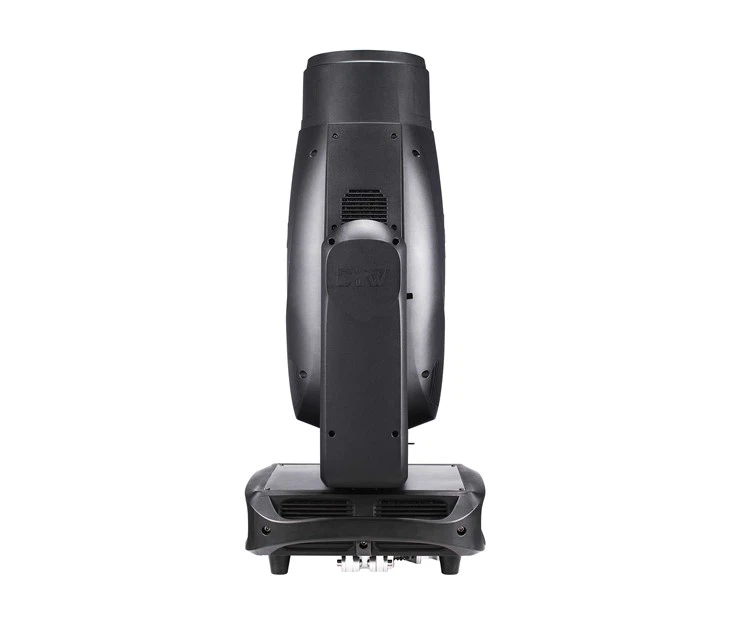

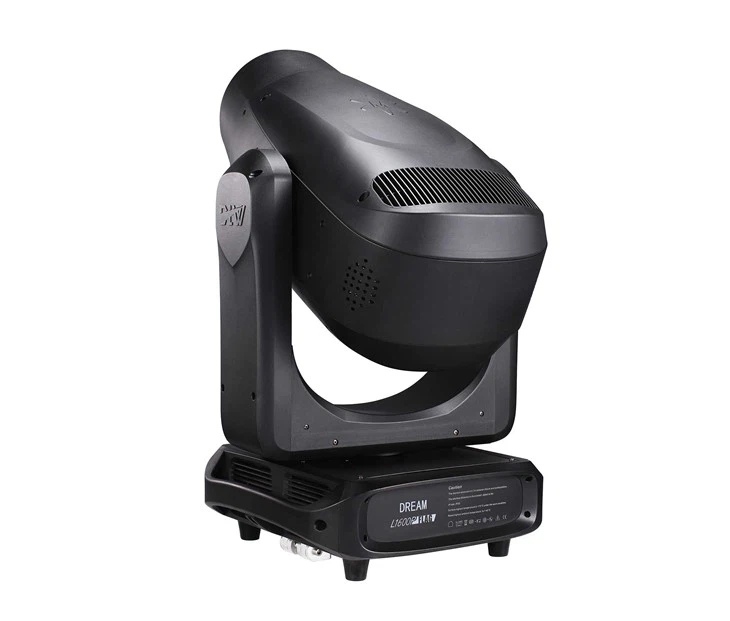

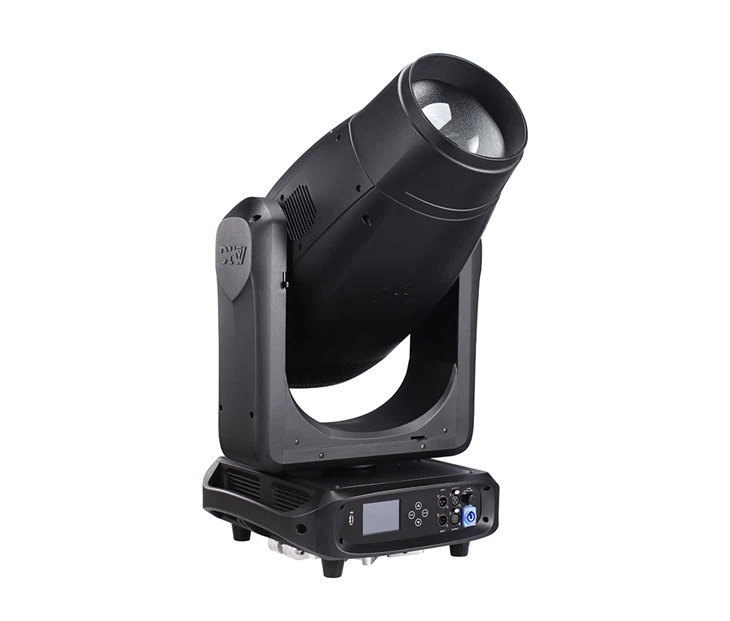

1200w LED Moving head Wash Remote Stage Lighting
DLW L1200HR WP
End-of-Life Product
Explore DLW's latest product for a replacement.
Outline
Professional Remote-Controlled LED Moving head wash Stage Lighting
Key Features:
1,200W white LED light engine.
High-output performance for professional stage washing applications.
5°–50° motorized zoom range.
CMY color mixing and CTO color-temperature control.
Dual color wheels for additional color effects.
Four individually controllable framing shutters.
Framing system with 90° rotation.
One frost filter for softening and widening the beam.
Smooth linear dimming.
Send Inquiry
Product Details of 1200w LED Moving head Wash Remote Stage Lighting
Product Introduction
DLW L1200R WP / L1200HR WP
Professional Remote-Controlled LED Moving head wash Stage Lighting
This is a professional LED moving head spotlight designed for concerts, theater productions, television, live events, and other demanding stage-lighting applications. It combines high-output LED technology with precise beam shaping, advanced color control, and remote operation.
Powered by a 1,200W white LED light engine, the DLW L1200R WP delivers strong, consistent output for a wide range of professional shows. Its specially designed convex lens with advanced optical coating helps improve light quality, reduce halos, and minimize unwanted spill light in white-light stage applications.
The fixture features a 5°–50° zoom range, allowing users to create concentrated beams as well as wider profile and wash effects. With CMY and CTO systems, two color wheels, a 90° rotating framing system, a frost filter, and linear dimming, it provides lighting designers with extensive creative control.
The integrated framing system includes four individually controllable framing shutters, enabling precise adjustment of the projected beam shape and graphics. This makes the DLW L1200 WP series suitable for applications that require sharp profiles, controlled aerial effects, and accurate stage coverage.
Electrical
Input voltage: AC200-240V 50/60Hz
Input Power: 1370W, PF ≥ 0.98
Input current: 6.85 A
Light Source
Light source: 1200W White LED module (choice of high brightness mode or high CRI mode)
Ra ≥ 70 (DREAM L1200R WP high brightness)
Ra ≥ 90 (DREAM L1200HR WP high CRI)
LED life time : 20000 hours
Optics & Photometric Data
Lens: High-definition lens with anti-reflective film
Zoom range: 5°~ 50°
Color System
CMY infinite mixing, output high saturated color (RGB), pure color.
CTO color temperature linear adjustable 3200-6200K
Dual color wheels, each has 6 color filters plus open, can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.
Framing System
One framing system (frosted light controllable), 4 x individually controllable curtain blades, 90° rotation control of the complete framing.
Effect Configuration
One switchable frost filter
0-100% linear dimmer, choice of 4 dimming curves, choice of 4 dimming speeds
Electric strobe, with speed adjustment from 1 to 25 flashes per second, multiple strobe options
Fixture Movement
PAN = 540° - 16 bit
TILT = 270° - 16 bit
Electronic Control Technology
Control Channel: 27Ch/ 29Ch/ 47Ch
Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
Control Portals: XLR-3+XLR-5; RJ45 (optional)

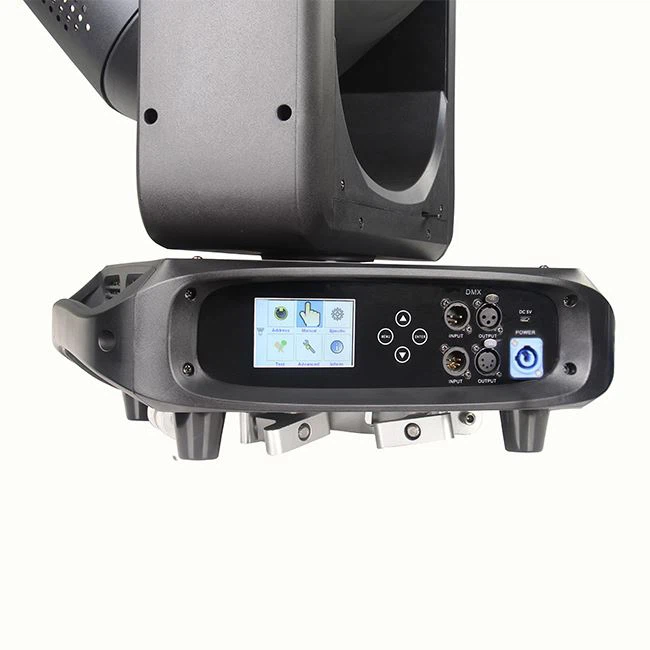

Menu display: 3.5" LCD color touch screen; choice of Chinese and English language, menu available to display 180°reversely
Built-in self-rechargeable battery, menu edit available without power (optional),
Support external charging bank to enter the menu to set address code and other settings
Electronic sensing detection, fan intelligent detection and control
Eco mode (sleep mode when standby)
Non-touch magnetic encoder positionable system for pan-tilt
Size & Weight
Fixture size: (470X470X894) mm
Fixture weight: 42.5 KG
Flight case size: (760 X 550X 890) mm (1 position)
Flight case weight: 34 KG
Working Conditions
Minimum and maximum ambient temperature: -20℃~ 40℃
Protection rating: IP 20
*Specifications and documentation subject to change without notice.*
FAQ :
q: What is DLW L1200R WP Remote Stage Lighting?
A: DLW L1200R WP is a professional remote stage lighting fixture using a high-output 1200W LED engine. It combines spotlight projection, profile framing, color control, and remote positioning functions for professional entertainment applications.
q: Is DLW L1200R WP suitable for theatres?
A: Yes. Its framing system, color control, and smooth dimming are designed for theatrical lighting environments.
Q: Is DLW L1200R WP suitable for TV studios?
A: Yes. The high-quality LED output and precise control make it suitable for television, broadcasting, and studio applications.
Q: Does DLW L1200R WP support RDM?
A: Yes. RDM allows remote fixture addressing and easier system management.
q: Does DLW L1200R WP support smooth dimming?
A: Yes. It provides linear electronic dimming for professional stage fades.
Q: What is the difference between L1200R WP and L1200HR WP?
A: The main difference is the LED engine configuration:
L1200R WP: High brightness version
L1200HR WP: High CRI version for applications requiring better color rendering
