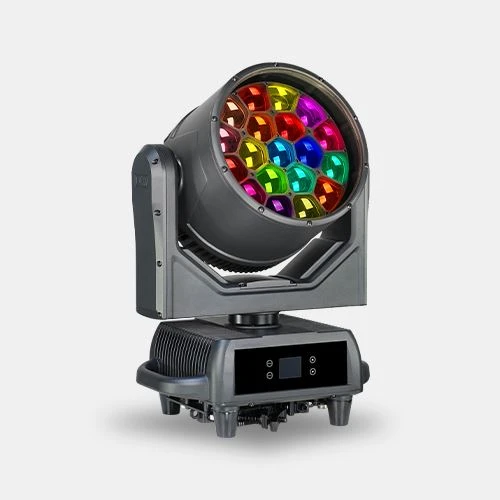

BeamWash IP Moving Head
Outline: DLW L4019C4B IP is an advanced waterproof stage lighting fixtures, defines outdoor prolighting with IP66-rated resilience, advanced weather protection, perfectly to withstand harsh outdoor conditions, ensuring reliable performance in rain, dust, and extreme temperatures.
The DLW L4019C4B IP is professional stage light powered by 19 x 40W RGBW multichip LED, versatile optics with zoom range 4°～40° providing sharp beams for punchy aerial effects and wide washes for smooth stage coverage, pixel control for breathtaking visuals and rotating multi-coloured spikes of light for kaleidoscope effect, adding dramatic impact to any show.
The DLW L4019C4B IP, is stage light LED BeamWash IP moving head designed for festivals, concerts, and demanding environments, it delivers unmatched durability and versatility in a sleek, 19 kg package.
●Light source 40W RGBW LED x 19 pcs
●Zoom range 4°～40°
●pixel control, kaleidoscope effect
Send Inquiry
Product Details of BeamWash IP Moving Head
Electrical Specification
Input voltage: AC100V-240V, 50-60Hz
Input power: 800W
Input current: 8.0 A
Light source
Light source: 40W RGBW LED x 19 pcs
LED expected lifespan: 50000 Hrs

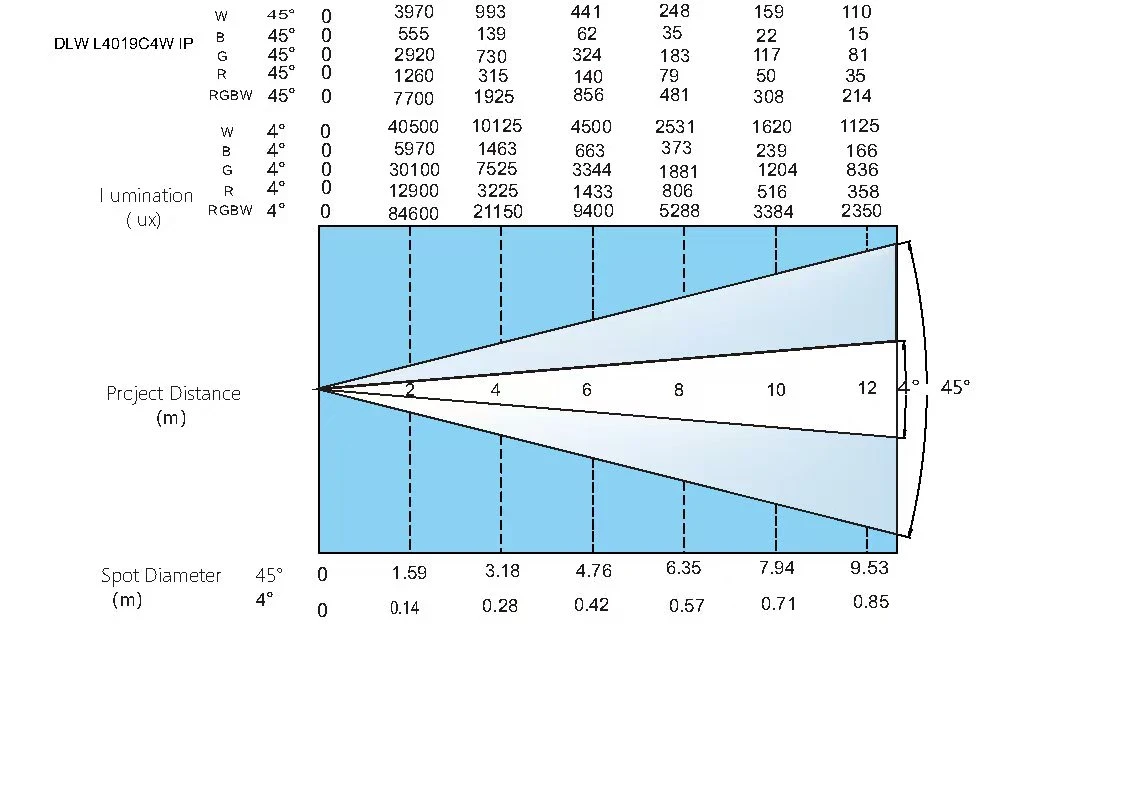

Optics & Photometric Data
Zoom range: 4°～40°
Effect Configuration
Individual pixel control (Single-Color Single-Point Control), preset with multiple macro effects;
Color temperature varies linearly from 2700K to 8000K;
The optical lens can rotate infinitely to produce a kaleidoscope effect, and brilliant, colorful beam effects;
0-100% electronic dimming control;
Fast strobe 1～25Hz;
Fixture Movement
PAN= 540° - 16 bit
TILT= 220° - 16 bit
Electronic Control
Control model: 21 /23 /35 /78 /92 /97 /99 CH
Control Protocols: DMX512, RDM; (optional: Art-Net, sACN, wireless network)
Data Portals :Waterproof XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
Power Portals : Waterproof Locking Power In/Out;
Menu screen: 1.77" LCD; menu display can be 180° reversed;
Electronic sensing detection, intelligent fans monitor, control temperature;
Supports energy saving mode (standby hibernation function);
Non-touching magnetic encode position system for pan-tilt;
Size & Weight
Fixture size: 390x390x520 mm (Integrated hook)
Fixture weight: 19 kg
Flight case size: 983X463X748 mm (2 position)
Flight case weight: 35.5 kg
Carton size: 625X385X505 mm (1 positions)
Working Conditions
Working environment temperature: -20℃~ 40℃
Protection rate: IP66
Specifications and documentation subject to change without notice.
