Outdoor Moving Head Light
Outline

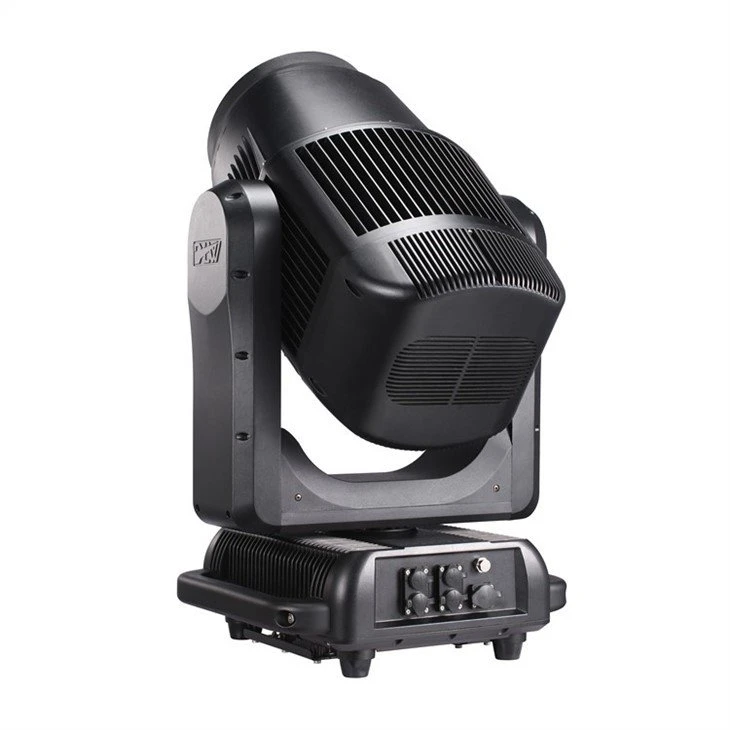

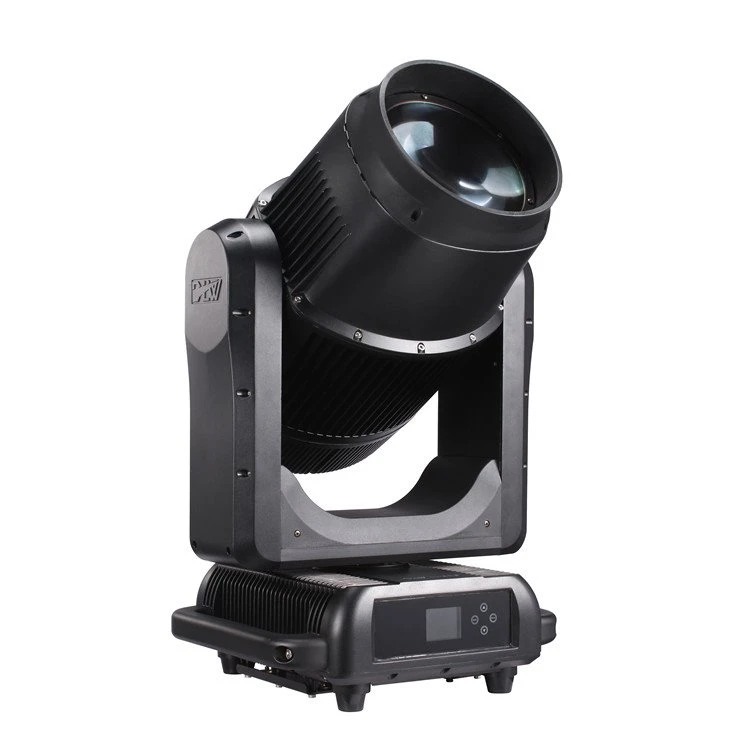

DLW 480B IP outdoor moving head light is a professional beam light fixture that has an IP66 shield. It is capable of producing stunning lighting effects both indoors and outdoors. The all-rounded aluminium alloy housing gives a dust-free environment for the optic, gobo, and color system, eliminating the need for frequent maintenance and cleaning.
Equipped with an OSRAM 482W arc lamp and high-quality optics, it produces a bright, crystal clear, and sharp-edged beam as narrow as 1.8°. The static gobo wheel projects precise graphics in the air with sharp and high contrast ratio shapes. When combined with the rotating prisms and color wheel, it creates various beams and a captivating "flower" effect. Additionally, 6-colored plate, electronic dimming, strobe, and frosts gives further rich effects.
The DLW 480B IP is suitable for architecture lighting, outdoor stage lighting, and is perfect for theme parks, tourisms, buildings, bridge and all kinds of events.
It’s totally a reliable outdoor moving head light that can withstand rains and sands.
● Light source: OSRAM SIRIUS HRI 482W
● Beam angle: 1.8°
● Linear CMY
● One color wheel
● One static gobo wheel
● One frost filter
● 6-colored plate
● Double prisms
● Electronic linear dimming
● Protection rate: IP66
Send Inquiry
Product Details of Outdoor Moving Head Light
Electrical Specification
Input voltage: AC100-240V 50/60Hz
Input Power: 700W, PF≥ 0.98
Maximum input current: 7A
Light Source
Light source: OSRAM SIRIUS HRI 482W
Light source expected lifespan: 1500 hours
Optics & Photometric Data
Front lens: High-definition lens with anti-reflective film, diameter of frontal lens: 200mm
Beam angle: 1.8°
Color System
CMY infinite color mixing
One color wheel, 11 x color filters plus open, the color wheel can rotate in both directions, rainbow, stepping, sliding gradient color modes
Gobo System
One static gobo wheel with 12 gobos plus 7 circle-shaped opens, scrolling, shake effects
Effect Configuration
Independent frost filter
Mechanical Dimmer: 0-100% electronic linear adjustment
Fast strobe, multiple strobe options, pulse, asynchronism, synchronism, random slow, medium, fast speed
8-facet prism and 24-facet prism + 6-color plate, overlay to achieve multi-layer beam effect, rotate in both directions
Fixture Movement Parameters
PAN=540° - 16 bit
TILT=270° - 16 bit
Electronic Control Technology
DMX Channels: 20 Ch/ 24 Ch/ 28 Ch
Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
Data Portals :Waterproof XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
Power Portals : Waterproof Locking Power In ;
Menu display: 2.4" LCD color screen; Chinese and English languages, display able to flip 180°
Electronic sensing detection, fan intelligent detection and control
Eco mode (sleep mode when standby)
Non-touch magnetic encoder positionable system for pan-tilt
Size & Weight
Fixture size: (443X443X780) mm (Integrated hook)
Fixture net weight: 42 kg
Flight case size: (935X530X630) mm (1 position)
Flight case net weight: 26 kg
Carton size: 615X455X945 mm (1 positions)
Working Conditions
Working environment temperature: -20℃~ 40℃
IP rate: IP66
Specifications and documentation subject to change without notice.
