DLW 1700 FOLLOW

Outline

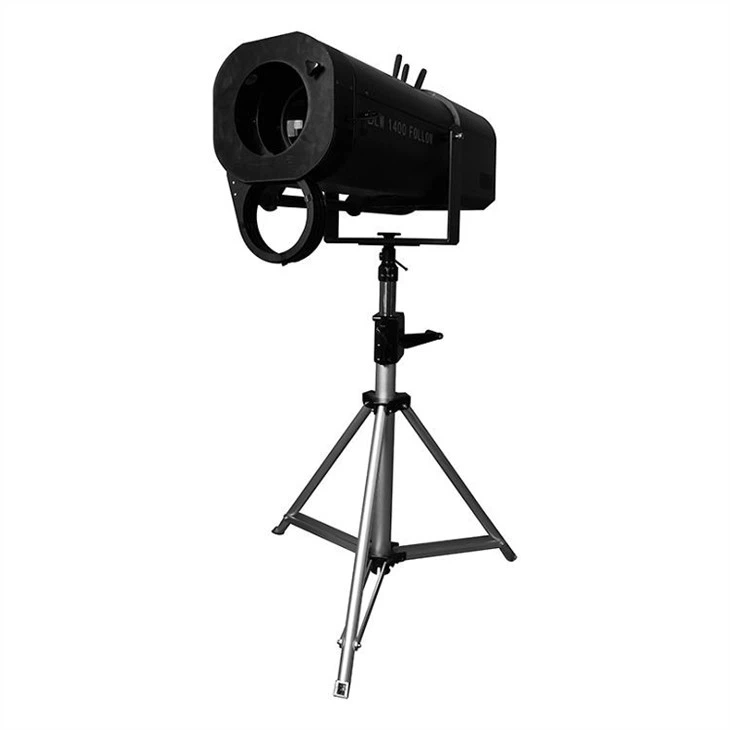

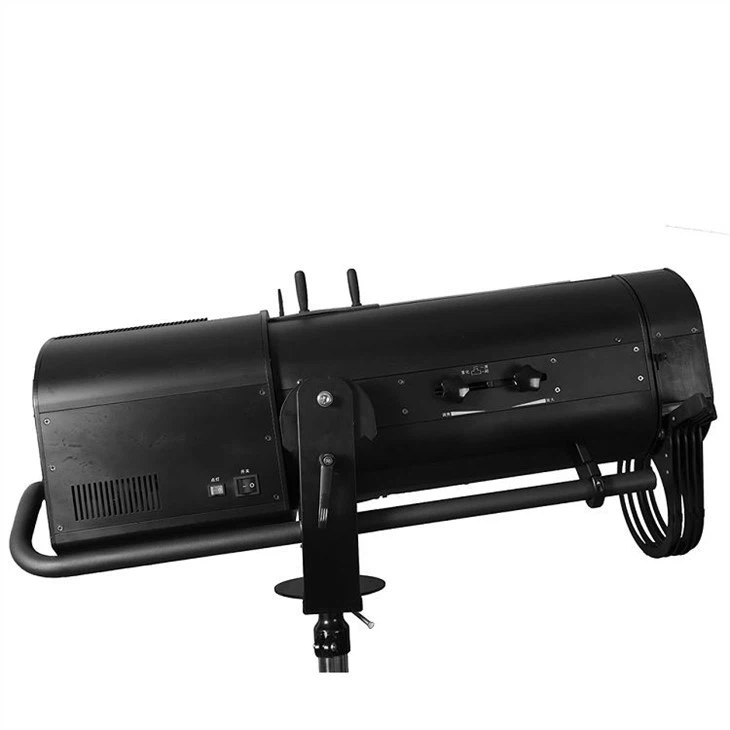

DLW 1700 FOLLOW is a highly efficient follow spot in theatre productions. It is operated manually and is specifically designed to highlight a featured actor, especially in drama, musicals, and other types of presentations. This follow spot light utilizes a powerful arc-source of 1700-watts, resulting in a strong and intense beam of light with a sharp edge. When compared to xenon followspots, the DLW 1700 FOLLOW spotlight offers several advantages. These include a uniform light spot, high brightness, excellent color rendering, and a flicker-free performance.
Thanks to its zoom capability of 6°~ 12° and precise control of the iris, the operator can easily adjust the beam angle and enlarge or shrink the beam as desired. In addition to the color chip, the spotlight allows for the insertion of gobos onto the customized color wheel, enabling the projection of sharp and clear patterns.
The DLW 1700 FOLLOW spotlight also provides linear control of color temperature, offering flexibility in lighting control. It not only delivers bright frost lighting but also ensures a smooth and precise dimming experience, providing an outstanding follow spot light on stage.

● Light source: OSRAM lok-it 1700/PS
● High CRI (Color rendering index)
● Flicker free
● Zoom range: 6°~ 12°
● 0-100% Iris
● 7-color color wheel
● Linear color temperature
● Linear dimming
● Frost effect
Send Inquiry
Product Details of Long Throw Follow Spot

Electrical

Input voltage: AC200-240V 50/60Hz

Maximum input Power: 1950W, PF≥0.98

Maximum input current: 9.8 A



Light Source

Light source: OSRAM lok-it 1700/PS

Color temperature: 6000k

Light source expected lifespan: 750 hours

luminous flux: 135000lm

Lamp base: PGJ28Lok-it!



Optics & Photometric Data

Optical lens:High-definition lens with anti-reflective film

Zoom range: 6°~ 12°

Uniformity rate: ≥80%

CRI (Color rendering index): Ra≥ 90



Effect Configuration

Linear adjustment of color temperature

Dimmer: 0-100% smooth adjustment

Iris: 0-100%

One frost filter

7 color plates (gobos installable)



Size& Weight

Fixture size: (908X421X476) mm

Fixture net weight: 33 kg (without tripod)

                               39 kg (with tripod)

Flight case size: (1214X695X703) mm (1 in 1)

Flight case net weight: 45kg



Working Conditions

Minimum and maximum ambient temperature: -20℃~ 40℃

Protection rating: IP 20

Specifications and documentation subject to change without notice.
