LED Moving Wash Lights
Outline

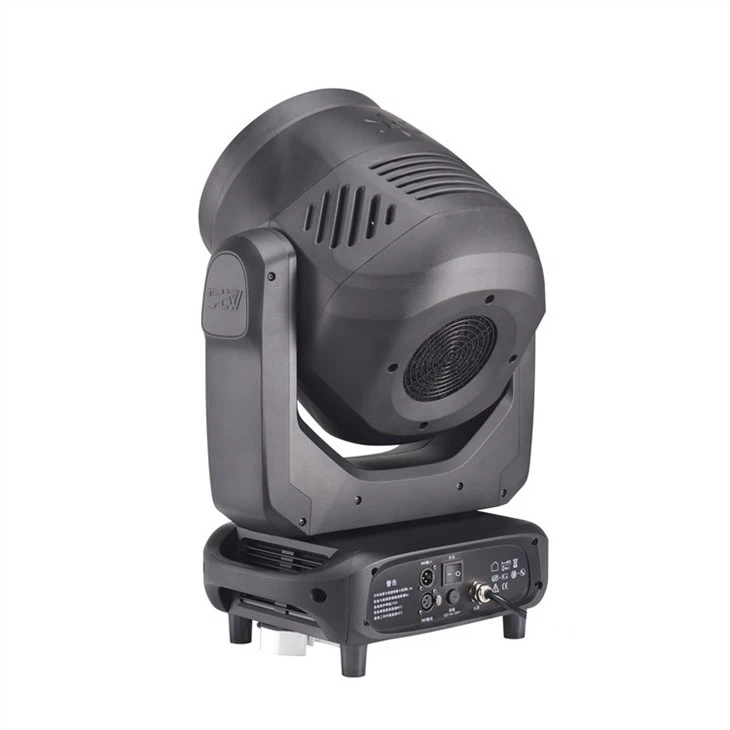

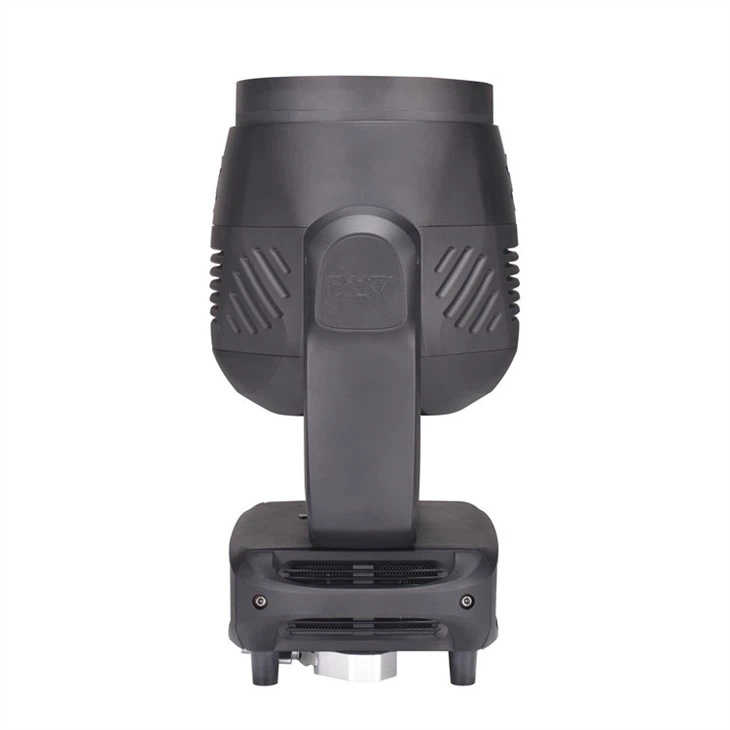

DREAM L6012C4 WASH is moving head wash automated lighting, that power by 12pcs Osram 60W LED engine, each RGBW 4in1. You can freely control each single LED individually to create all sorts of dynamic designs and colors at your will.
DREAM L6012C4 WASH, zoom range 4.5°~ 54°. With a beam angle of 4.5°, you will discover it is not only a high-performance stage flood light, but also a perfect RGBW stage beam light, a spectacular visual effect light in one.
DREAM L6012C4 WASH, 2700K-8000K CTC linear color, 0-100% smooth dimming control, preset rich patterns and color macro effects, multiple speeds of strobe effects.
The compact size and lightweight, as well as simple and smart controls, it a popular moving head wash product for rental companies and lighting designers at concert tours, TV shows and corporate events.
● Light Source: Osram 60W RGBW LED*12PCS
● Zooming: 4.5°~ 54°
● Each single LED can be controlled individually
● Color temperature: 2700K-8000K linear adjustment
● 4 choice of dimming curves
Send Inquiry
Product Details of LED Moving Wash Lights
Electrical Specification
Input Voltage: AC100-240V 50/60Hz
Input Power: 800W PF≥0.98
Maximum input current: 8A
Light Source
Light Source: Osram 60W RGBW LED*12PCS
LED module lifespan: 50000 hours
Optics & Photometric Data
Zooming: 4.5°~ 54°
Effect Configuration
Each single LED can be controlled individually, built-in multiple macro functions
Color temperature: 2700K-8000K linear adjustment
Dimmer: 0-100% electronic dimming control, 4 choice of dimming curves, 5 choice of dimming speeds
Strobe with speed adjustment from 1 to 25 flashes per second
Fixture Movement
PAN=540° - 16 bit
TILT=270° - 16 bit
Electronic Control
DMX Channel: 13Ch (HSIC)/ 19Ch (PERSON1)/ 23Ch (PERSON2) / 16 (CMY)/ 57 (PIXEL)
Control Protocols: DMX512, RDM; Art-Net, (optional :sACN, wireless function)
Data Portals : XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
Power Portals : Waterproof Locking Power In/Out;
Menu display: 2.4" LCD screen; choice of Chinese and English language, menu available to display 180°reversely
Built-in self-rechargeable battery, menu edit without power available (optional);
support external charging bank to enter the menu to set address code and other settings
Electronic sensing detection, fan intelligent detection and control
Eco mode (Sleep mode when standby)
Non-touch magnetic encoder positionable system for pan-tilt
Size& Weight
Fixture size: (424X424X603) mm (Integrated hook)
Fixture weight: 23.2 kg
Flight case size: (1040X515X805 mm) (2 positions)
Flight case weight: 39 kg
Carton size: 520X415X655 mm (1 positions)
Working Conditions
Minimum and maximum ambient temperature: -20℃~ 40℃
Protection rating: IP20
Specifications and documentation subject to change without notice.
