1400w Stage Lights

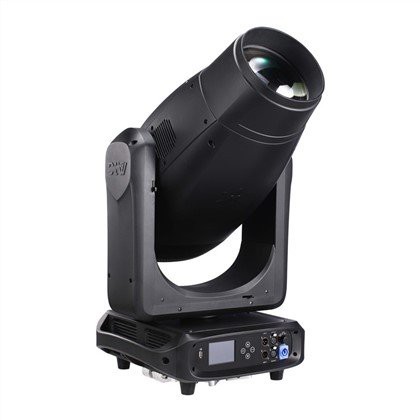

DLW 1400 PROFILE

Outline
DLW 1400 PROFILE is an extra-potent profile moving head. It is a 1400W High-intensity discharge lamps (HID lamps) customized with OSRAM lok- it 1400-PS_Brilliant light engine, which is famous for its high light efficiency, high CRI (color rendering index), uniform spot, pure colors. With fast and unlimited beam shaping control within 0.2 seconds, the beam shape to be cut into various patterns, the pattern positioning is accurate and the edges are clear, as well as the color temperature during the process remains unchanged. Moreover, rich feature with 7°-50 ° linear zoom, high brightness, two-steps of controllable frost effect, outstanding high color rendering lighting effect, pure color, clear image pattern, uniform prism effect and professional dimming control, high frequency electronic ballast output. It is an ideal lighting fixture for professional theaters, TV stations and various performing arts venues.

● Light source: OSRAM lok-it 1400-PS_Brilliant
● Zoom range: 10°~ 50°
● CMY+CTO
● One color wheel
● One static gobo wheel
● One rotate gobo wheel
● One animation wheel
● One set of framing system
● Motorized iris, linear adjustment
● One prism, dual frost filters
● Motorized dimmer, linear adjustment

Send Inquiry

Product Details of 1400w Stage Lights

Instruction:

Moving Head PROFILE with framing shutters, the 4 blades of the framing shutter allow you to create every shapes, together with a +/- 45° rotation.

It's professional Intelligent lighting equipment for:

THEATER & PERFORMING ARTS

EVENT PRODUCTION

HOUSES OF WORSHIP

Specification Details

Electrical

Input Voltage: AC200-240V 50/60Hz

Input Power: 1800W, PF≥0.98

Maximum input current: 9 A

Light Source

Light source: OSRAM lok-it 1400-PS_Brilliant

Color temperature: 6000 K

Expected lifespan: 750 Hours

Lamp base: PGJ28 Lok-it

Optics System

Reflection bowl: Europe imported reflection bowl, includes primary and secondary reflection bowl design

Lens: High-definition lens with anti-reflective film, optical lens diameter: 160 mm

Total luminous flux output: ≥ 36000lm

CRI: Ra ≥ 95,R9≥ 90

Uniformity rate: ≥80%

Zoom range: 7°~ 50°

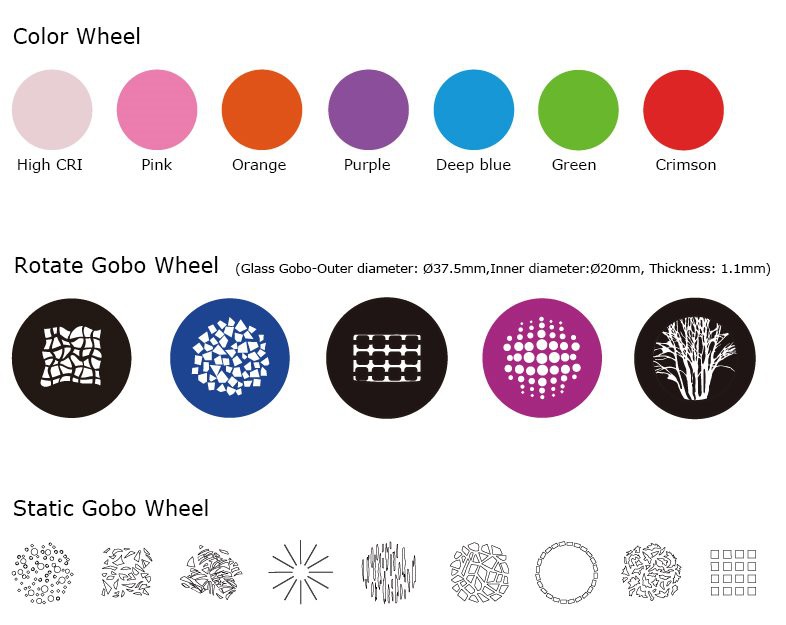

Color System

CMY infinite color mixing system, the color (RGB) system has high color saturation, high pureness and high brightness

CTO color temperature, 3200K-6000K linear adjustment

One static color wheel, 7 color filters + open, color wheel rotates in both directions, effects of rainbow, stepping, sliding gradient, random color

Gobo System

One rotate gobo wheel with 5 gobos plates, bi-direction rotatable & positionable, effects of rotation, water flow, shake, 16 bit controllable

One static gobo wheel with 9 unpluggable gobo plates + open, effect of water flow rotates in both directions

One animation wheel, effects of cloud, flame and water flow etc.

Framing System

One complete framing system, 4 x individually controllable curtain blades with variable angle of 90° through the entire insertion path; it takes 0.2 second only for the entire rotation path

Effect configuration

One rotate 4-facet prism with bidirectional rotation

Dual frost filters, uniform and high brightness output

Dimmer: independent 0-100% dimming control, multiple choice of dimming curves

Fast electric strobe, with speed adjustment from 0.8 to 15 flashes per second, multiple strobe options includes pulse, synchronous, asynchronous, random slow, medium and fast speed

High speed motorized iris 5-100% linear adjustment, built-in multiple macro functions

Fixture Movement

PAN = 540° - 16 bit

TILT = 270° - 16 bit

Electronic Control

a) DMX Channels: 32 Ch/ 35 Ch/ 56 Ch

b) Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)

c) Control Portals: XLR-3; RJ45 (optional)

d) Menu display: 3.5" color LCD touch screen; choice of Chinese and English language, menu available to be displayed 180° reversely

e) Built-in self-rechargeable battery, menu can be edited without power supply (optional); support connecting power bank to enter the menu and edit address code and other settings

f) The power will automatically reduce on blackout mode, environmental friendly

g) Electronic sensors testing, fan intelligent detection and control

h) Eco mode (sleep mode when standby)

i) Non-touching magnetic encoder positionable system for pan-tilt

Size & Weight

Fixture Length: 462mm / 18.2 in

Fixture Width: 462mm / 18.2 in

Fixture Heigth: 773 mm / 30.4 in

Fixture net weight: 48 KG (105.6 lbs)

Road case size: (710X550X865) mm (1 position)

Road case net weight: 30 KG

Working Conditions
