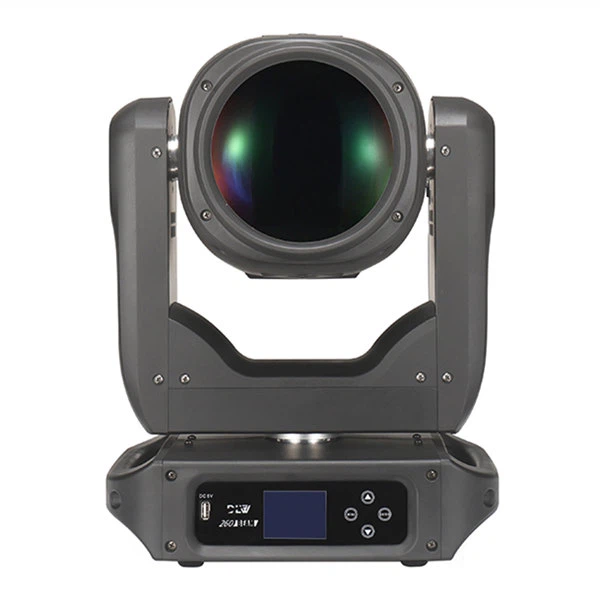

Arc-lamp Moving Light

DLW 300L BEAM

Outline
DLW 300L BEAM is a professional beam stage light with a compacted size, extremely agile movement, giving a high performance-to-price ratio.
It projects 1.8 degrees of sharp moving beams, ultra-intense beams, combined with dynamic prism, fast switching gobo patterns and color filters, presents colorful aerial effects.
DLW 300L BEAM, not only a moving head beam light, the device is equipped with frost filter to soften even light, producing very good coloring effects, is an arc-lamp moving light perfect for all medium-sized entertainments.

● Light source: MSD Silver 300 LL
● Zoom range: 1.8°
● One color wheel with 13 colors filters
● One static gobo wheel with 10 gobos plus 4 opens
● One 6-color plate
● Dual prisms
● One frost filter
● Fast strobe with multi options

Send Inquiry

Product Details of Arc-lamp Moving Light

Electrical

Input Voltage: AC100-240V 50/60Hz

Input power: 400W, PF≥0.98

Maximum input current: 4A

Light Source

Light source: MSD Silver 300W LL

Light source lifespan: 3000 hours

Color temperature: 7800K

Optics & Photometric Data

Optical lens: High-definition lens with anti-reflective film

Beam angle: 1.8°

Color System

One color wheel with 13 colors, the color wheel can be rotated in both directions, rainbow, step and gradient modes.

Gobo System

One static gobo wheel with 10 gobos + 4 circular openings, water flow, shaking effects.

Effect Configuration

One frost effect.

Fast strobe, multiple strobe effects, pulse, asynchronous, synchronous, random slow, medium, fast speed.

Double prisms (8-facet prism + 16-facet prism), 6-colour plate for more effects, can achieve 6 prism effects when overlapping and rotating in both directions.

Fixture Movement

PAN=540° - 16 bit

TILT=260° - 16 bit

Electronic Control

DMX channels: 18 channels/ 24 channels/ 16 channels

Control protocol: DMX512, RDM

Control connections: XLR-3 + XLR-5; RJ45 (optional)

Menu display: 1.77" LCD screen, Chinese and English, menu can be displayed 180° inverted.

Built-in self-charging battery, menu can be edited without power (optional), support external charging bank to enter the address code and other settings in the menu

Supports eco mode (sleep mode).

Energy-saving and environmentally friendly, the power automatically decreases when the light bulb is turned off.

Fan intelligently controlled, test electronic sensors.

Size & Weight

Fixture Size: (329X245X495) mm

Fixture weight: 15.5 Kg

Flight case size: 830X530X745 mm (2 positions)

Flight case weight: 25 Kg

Working Conditions

Minimum and maximum ambient temperature: -20℃~ 40℃

Protection rating: IP20

Specifications and documentation subject to change without notice.
