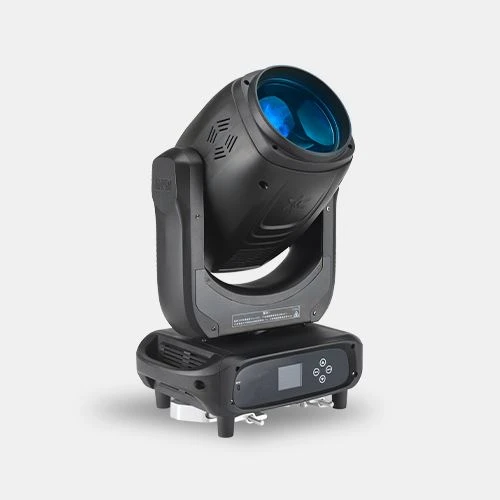

380w Beam Moving Head Light
Outline
DLW 400 BEAM is automated yoke beam moving head. 2° sharp aperture create thick and solid beam, combine with dynamic prism, fast switchable gobos and colors, multi-colored color wheel make the lighting fixture project rich and colorful effects in mid-air. Also, it can achieve ideal wash effect with switchable diffuser filter. It is a true high-performance ultra-practical beam moving light.
● Light source: PHILIPS MSD Silver 380W LL
● Beam angle: 2°
● One color wheel
● One static gobo wheel
● 6-color plate
● Dual prisms
● One frost filter
● Motorized strobe
● Motorized dimmer
Send Inquiry
Product Details of 380w Beam Moving Head Light
Electrical
Input voltage: AC100-240V 50/60Hz
Input Power: 520W, PF≥0.98
Maximum input current: 5.2 A
Light Source
Light source: PHILIPS MSD Silver 380W LL
Expected lifespan: 4000 hours
Color temperature: 7800K
Optics & Photometric Data
Optical lens: High-definition lens with anti-reflective film
Beam angle: 2°

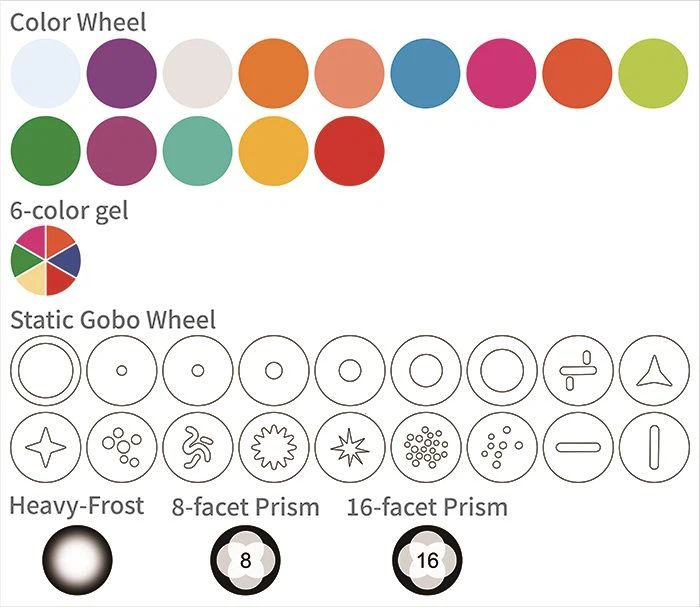

Color System
One color wheel, 14 color filters + open, rotate in both directions, rainbow, stepping, gradual changing colors
Gobo System
One static gobo wheel, 11 gobos + 7 circle-shaped opens, effects of scrolling, shake
Effect Configuration
One frost effect
Fast strobe, multiple strobe speeds, multiple strobe options, pulse, asynchronism, synchronism, random slow, medium, fast speed
Dual prism wheels (8-facet prism + 16-facet prism), one 6-color plate,
overlayable with each other can achieve multiple prism effects, rotation in both directions
Fixture Movement
PAN=540° - 16 bit
TILT=260° - 16 bit
Electronic Control
Channel: 18 Ch/ 24 Ch/ 16 Ch
Control Protocols: DMX512, RDM
Control Portals: XLR-3 + XLR-5
Power supply unit: Waterproof Locking Power In/Out;
Menu display: 1.77" color LCD screen; choice of Chinese and English language, menu available to be displayed 180° reversely
Support Software update via DMX cable
Bidirectional data transmission, RDM remote device management
The power will automatically reduce on blackout mode, environmental friendly
Eco mode (sleep mode when standby)
Size & Weight
Fixture size: 389X271X589 mm
Fixture weight: 18 kg
Road case size: 960X525X745 mm (2 positions)
Flight case weight: 34 kg
Carton size: 485X375X695 mm (1 positions)
Working Conditions
Minimum and maximum ambient temperature: -20℃~ 40℃
Protection rating: IP20
Specifications and documentation subject to change without notice.
