Beam Spot Wash Moving Head
End-of-Life Product
Explore DLW's latest high-output LED profile and spot moving heads for a replacement.
Outline

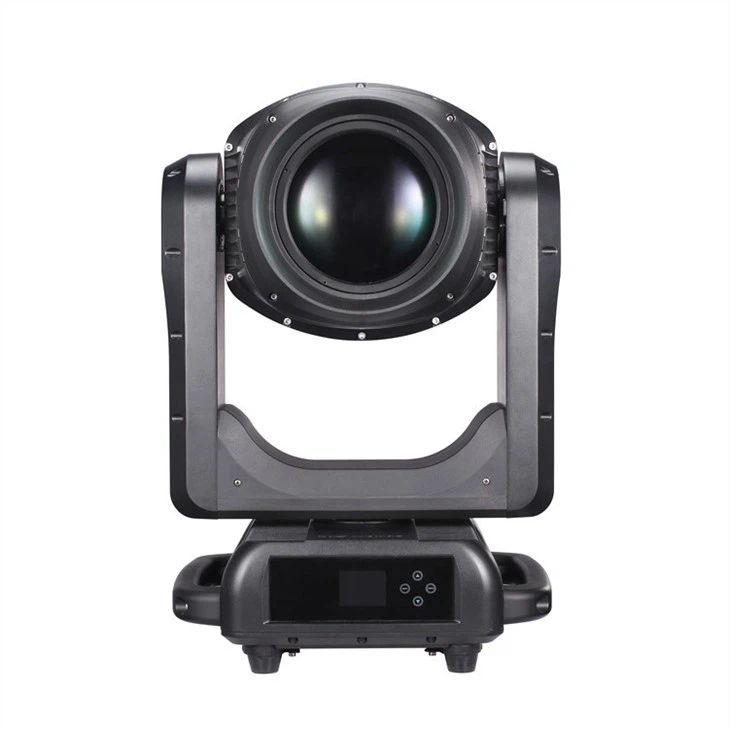

DLW 400BSW IP Beam Spot Wash Moving Head is a versatile hybrid lighting fixture designed for both indoor and outdoor applications. Built to perform reliably in challenging environments, it features excellent resistance to humidity, dust, and sand, making it an ideal solution for all-weather stage productions and outdoor events.
Equipped with a fully sealed aluminum housing, this waterproof moving head fixture creates a dust-free environment for its optical system, gobo wheels, and color mixing system. This design effectively reduces maintenance requirements while ensuring long-term stability and consistent performance.
Powered by a high-output 380W discharge lamp and an advanced optical system, the DLW 400BSW IP delivers an intense and powerful beam with a wide zoom range from 1.8° to 38°. It can easily create sharp aerial beam effects as well as smooth, wide wash coverage, providing exceptional flexibility for professional lighting designs.
The integrated static and rotating gobo wheels project sharp, high-contrast graphics with excellent clarity in the air. Combined with rotating prisms and a color wheel, the fixture creates dynamic beam effects and stunning flower-like patterns, adding depth and visual impact to any performance.
Combining beam, spot, and wash functions in a single fixture, the DLW 400BSW IP provides a highly flexible lighting solution for professional applications. It is widely used in concert tours, festivals, outdoor celebrations, sporting events, lighting shows, and other large-scale stage productions where powerful effects and reliable outdoor performance are required.
● Light source: MSD Silver 380W LL
● Zoom: Beam/Spot 1.8°-38°; Wash 5.8°-43°
● Linear CMY mixing
● One color wheel
● One static gobo wheel
● One rotate gobo wheel
● One frost
● Double prisms
● Electronic linear dimming
● Protection rated IP66
Send Inquiry
Product Details of Beam Spot Wash Moving Head
|
Category |
Parameter |
Specification |
|
Electrical |
Input Voltage |
AC 100–240 V, 50/60 Hz |
|
Input Power |
600 W (PF ≥ 0.98) |
|
|
Maximum Input Current |
6:00 AM |
|
|
Light Source |
Lamp Type |
MSD Silver 380 W LL |
|
Expected Lifespan |
4,000 hours |
|
|
Optics & Photometry |
Front Lens |
High-definition lens with anti-reflective film |
|
Zoom Range (Beam/Spot) |
1.8° – 38° |
|
|
Zoom Range (Wash) |
5.8° – 43° |
|
|
Color System |
Mixing |
CMY linear color mixing |
|
Color Wheel |
11 color filters + open |
|
|
Gobo System |
Rotating Gobo Wheel |
8 gobos + open (bi-directional rotation, positionable) |
|
Static Gobo Wheel |
12 gobos + 7 circle-shaped opens (rotate, shake effects) |
|
|
Effects |
Frost |
Independent frost effect |
|
Dimmer |
Mechanical dimmer: 0–100% adjustment |
|
|
Strobe |
Fast strobe, multiple options (pulse, sync/async, random slow/medium/fast) |
|
|
Prisms |
Dual overlayable prisms (8-facet + 24-facet), bi-directional rotation |
|
|
Movement |
Pan |
540° (16-bit resolution) |
|
Tilt |
260° (16-bit resolution) |
|
|
Control |
DMX Channels |
24 / 28 / 36 channels |
|
Protocols |
DMX512, RDM; Art-Net, sACN, wireless (optional) |
|
|
Ports |
XLR-3, XLR-5; RJ45 (optional) |
|
|
Display |
2.4" LCD color screen (Chinese/English, 180° flip) |
|
|
Features |
Electronic sensing, intelligent fan control, Eco mode (sleep), non-touch magnetic encoder for pan/tilt |
|
|
Dimensions & Weight |
Fixture Size |
443 × 443 × 780 mm |
|
Fixture Net Weight |
42 kg |
|
|
Flight Case Size |
915 × 530 × 630 mm (1 unit) |
|
|
Flight Case Weight |
26 kg |
|
|
Environment |
AmbientTemperature |
-20°C to 40°C |
|
Protection Rating |
IP66 |
Specifications and documentation subject to change without notice.
FAQ
Q1: Is the DLW 400BSW IP suitable for outdoor events?
A: Yes. The DLW 400BSW IP is designed for outdoor applications with an IP66 protection rating. Its sealed aluminum housing protects internal optical components, gobo systems, and color systems from dust and water, making it suitable for festivals, concerts, sports events, and outdoor stage productions.
Q2: What lighting effects can a beam spot wash moving head create?
A: A beam spot wash moving head can create various professional lighting effects, including:
- Sharp aerial beams
- Dynamic gobo projections
- Rotating pattern effects
- Multi-layer prism beam effects
- Wide stage wash lighting
- Strobe and dimming effects
The DLW 400BSW IP includes rotating gobos, static gobos, dual prisms, frost effects, and electronic dimming to create diverse visual effects.
Q3: What applications are suitable for the DLW 400BSW IP?
A: The DLW 400BSW IP is suitable for a wide range of professional lighting applications, including:
- Concert tours
- Music festivals
- Outdoor performances
- Stadium events
- Theatre productions
- TV shows
- Large-scale celebrations
Q4: Why choose a 3-in-1 Beam Spot Wash Moving Head instead of separate fixtures?
A: A 3-in-1 beam spot wash moving head provides greater flexibility and cost efficiency compared with using separate beam, spot, and wash fixtures.
Advantages include:
- Reduced equipment quantity
- Easier transportation and installation
- More programming flexibility
- More creative lighting possibilities
- Suitable for different types of events
Q5: Is the DLW 400BSW IP a good choice for concert touring?
A: Yes. The DLW 400BSW IP is designed for professional touring environments where powerful output, versatility, and reliability are essential.
Its compact hybrid design reduces the need for multiple fixtures during transportation, while the beam, spot, and wash functions allow lighting designers to create diverse effects for concerts, festivals, and large-scale live performances.
Q6: What makes the DLW 400BSW IP different from a standard moving head light?
A: The DLW 400BSW IP is a multifunctional hybrid moving head that combines beam, spot, and wash capabilities in one fixture. Unlike standard moving heads that provide only one lighting function, it allows lighting designers to switch between narrow beam effects, precise spot projections, and wide wash coverage.
With IP66 protection, a powerful 380W discharge lamp, advanced optics, and a complete effects package, it provides greater flexibility for both indoor and outdoor professional lighting applications.
