Laser Moving Head Light
Outline
DLW J300B IP laser moving head light is an incredibly powerful laser beam that utilizes a 260W laser-based engine. This professional laser stage lighting is capable of emitting a highly intense beam of light, projecting parallel cold rays at a narrow 0.6° angle. The beam lights are sharp and bold, with the ability to be projected over long distances of up to 2KM. This advantage surpasses that of discharge-lamp moving lights. In addition to its impressive capabilities, the DLW J300B IP laser moving head light offers various beneficial features such as a long lifespan for the light engine, quick response speed, precise dimming, and fast strobe effects. It also provides a wide range of color and gobo effects. Furthermore, the DLW J300B IP is a high power laser beam moving head with an IP66 rating, ensuring its durability and protection against dust, sand, moisture, and liquids. This makes it the ideal choice for outdoor performances and live events in any weather conditions and severe surroundings.
● 260W laser-based light engine
● Beam angle 0.6°
● Linear CMY
● One color wheel
● One static gobo wheel
● One frost filter
● One 6- color plate
● Double prisms
● Electronic linear dimming
● Protection rate IP66
Send Inquiry
Product Details of Laser Moving Head Light
Electrical Specification
Input voltage: AC100-240V 50/60Hz
Input Power: 390W, PF≥ 0.98
Maximum input current: 3.9 A
Light Source
Light source: 260W laser-based light engine
Color temperature: 7800K
Light source expected lifespan: 12000 hours
Optics & Photometric Data
Frontal lens with HD anti-reflective film, large diameter of 230mm
Beam angle: 0.6°

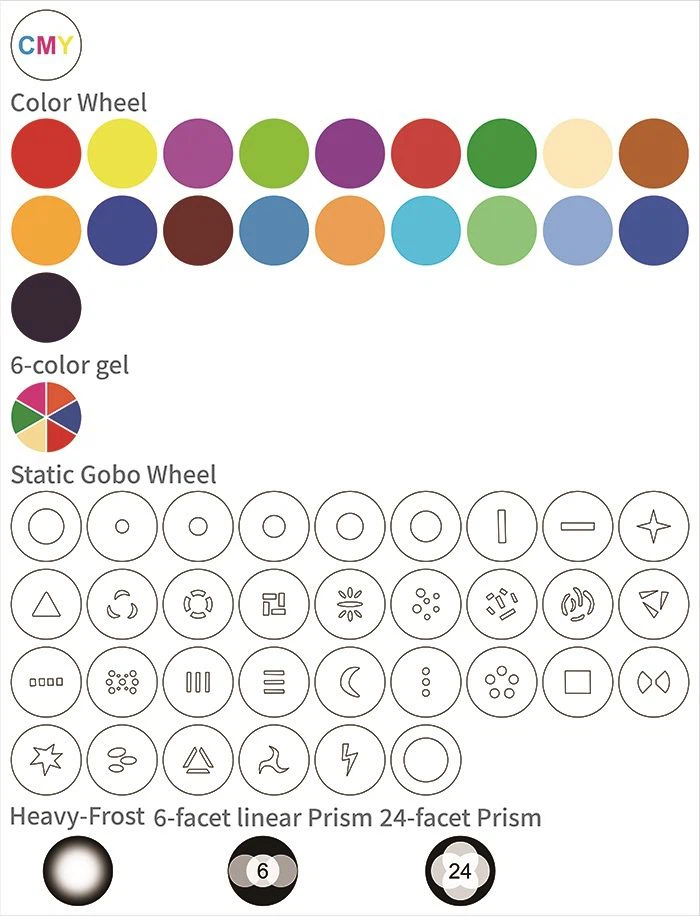

Color System
CMY infinite color mixing system
One color wheel, 19 x color filters, color wheel can rotate in both directions, effects of rainbow, stepping, gradual changing colors
Gobo System
One static gobo wheel with 26 x gobos + 7 x circle-shaped opens, effects of scrolling, shake
Effect Configuration
Independent frost filter
Fast strobe, multiple strobe options, pulse, asynchronism, synchronism, random slow, medium, fast speed
Dual prisms (6-facet prism + 24-facet prism + 6-color plate), overlay with each other to achieve multi-layer beam effect, rotate in both directions
Fixture Movement
PAN= 540° - 16 bit
TILT= 260° - 16 bit
Electronic Control Technology
DMX Channels: 20Ch/ 24Ch/ 28Ch
Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
Data Portals :Waterproof XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
Power Portals : Waterproof Locking Power In/Out;
Menu display: 2.4" color LCD; Chinese and English languages, display able to flip 180°
Electronic sensing detection, fan intelligent detection and control
Eco mode (sleep mode when standby)
Non-touch magnetic encoder positionable system for pan-tilt
Size & Weight
Fixture size: (443x443x780) mm (Integrated hook)
Fixture net weight: 42 KG
Flight case size: (935X530X630) mm (1 position)
Flight case net weight: 26 kg
G.W. : 76 kg (1 position flight case)
Carton size: 615X455X945 mm (1 positions)
Working Conditions
Working environment temperature: -20℃~ 40℃
IP rate: IP66
Specifications and documentation subject to change without notice.
