IP Rated Moving Head

Electrical

Input Voltage: AC100-240V 50/60Hz

Input Power: 1450W, PF≥0.98

Maximum input current: 14.5A



Light Source

Light source: 1200W White LED module (choice of high brightness mode or high CRI mode)

Ra≥ 70 (DLW 1200 LS66 high brightness)

Ra≥ 95 (DLW 1200H LS66 high CRI)

LED expected lifespan: 20000 Hours



Optics & Photometric Data

Optical lens: high-definition lens with anti-reflective film

Zoom range: 5°~ 50°



Color System

CMY infinite mixing, output high saturated color, pure color.

CTO color temperature linear adjustable

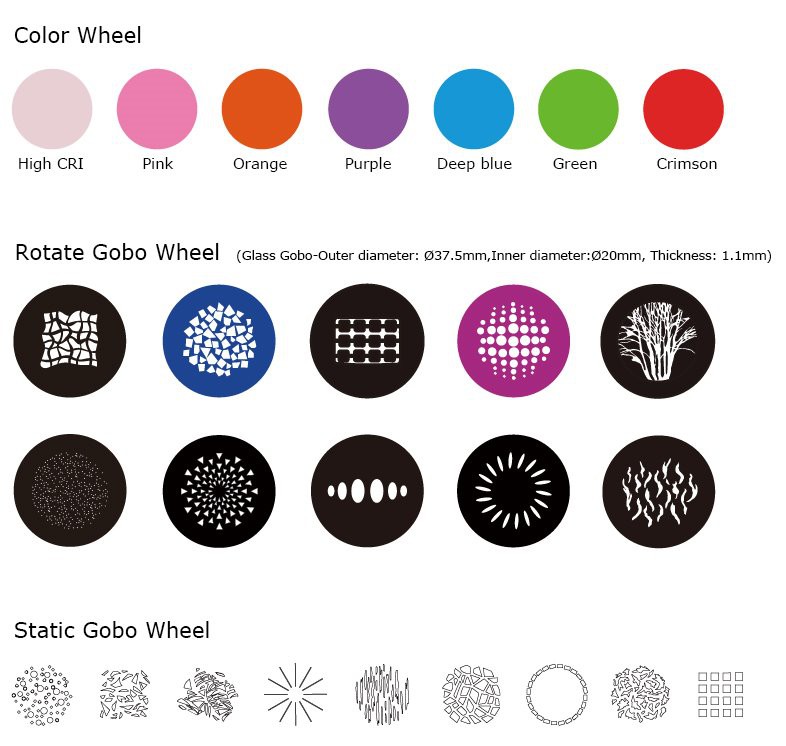

One color wheel, has 7 color filters plus open (included a CRI boost filter), can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.



Gobo System

Dual rotate gobo wheels, each has 5 gobos, the gobos can be indexing and bi-directional rotating, can be self-rotation, create effects of flowing water and shaking, the gobo wheel can be accurately controlled at 16bit.

One static gobo wheel with 9 gobos + 1 open, the gobo wheel can create bidirectional flowing effect.

One animation wheel, can imitate clouds, fire and flowing water for effects.



Effect Equipment

One prism, bidirectional rotation

Dual frosts, linear and uniformed, high brightness output

0-100% dimming control, 4 choice of dimming curves, 4 choice of dimming speeds

Electric strobe with speed adjustment from 1 to 25 flashes per second, multiple strobe options

High speed motorized iris 5-100% linear adjustment



Fixture Movement Parameters

PAN = 540° - 16 bit

TILT = 270° - 16 bit



Electronic Control Technology

DMX Channels: 25 Ch/29 Ch/42 Ch

Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)

Control Portals: XLR-3+ XLR-5; RJ45 (optional)

Menu display: 2.4" LCD color screen; choice of Chinese and English language, menu available to be displayed 180°reversely via manual

Electronic sensors testing, fan intelligent detection and control

Eco mode (sleep mode when standby)

Non-touching magnetic encoder positionable system for pan-tilt



Size & Weight

Fixture size: 534X461X874 mm

Fixture net weight: 58KG

Flight case size: 1000X630X580 mm (1 position)

Flight case net weight: 27.5KG



Working Conditions

Working environment temperature: -20℃~ 40℃

Protection rate: IP 66





Specifications and documentation subject to change without notice.



1. What is an IP rated moving head light?

An IP rated moving head light is a professional automated lighting fixture designed with weather protection features, allowing it to operate in outdoor environments while providing dynamic beam, spot, wash, or hybrid lighting effects.



2. What does IP rating mean for moving head lights?

The IP rating indicates the level of protection against dust and water. Higher ratings, such as IP65 or IP66, provide better protection for outdoor stage lighting applications.



3. Why choose an IP rated moving head light for outdoor events?

IP rated moving head lights are designed to withstand rain, dust, humidity, and changing weather conditions, making them ideal for outdoor concerts, festivals, stadium events, and touring productions.



4. Are IP66 moving head lights waterproof?

Yes. IP66 moving head lights are protected against dust and strong water jets, making them suitable for demanding outdoor lighting environments.



5. What is the difference between IP65 and IP66 moving head lights?

Both ratings provide strong weather protection. IP66 offers a higher level of water resistance, making it more suitable for harsher outdoor conditions.



6. Can IP rated moving head lights be used in rain?

Yes. Professional IP rated moving heads are designed for outdoor use and can operate in rainy conditions when installed and operated according to manufacturer specifications.
