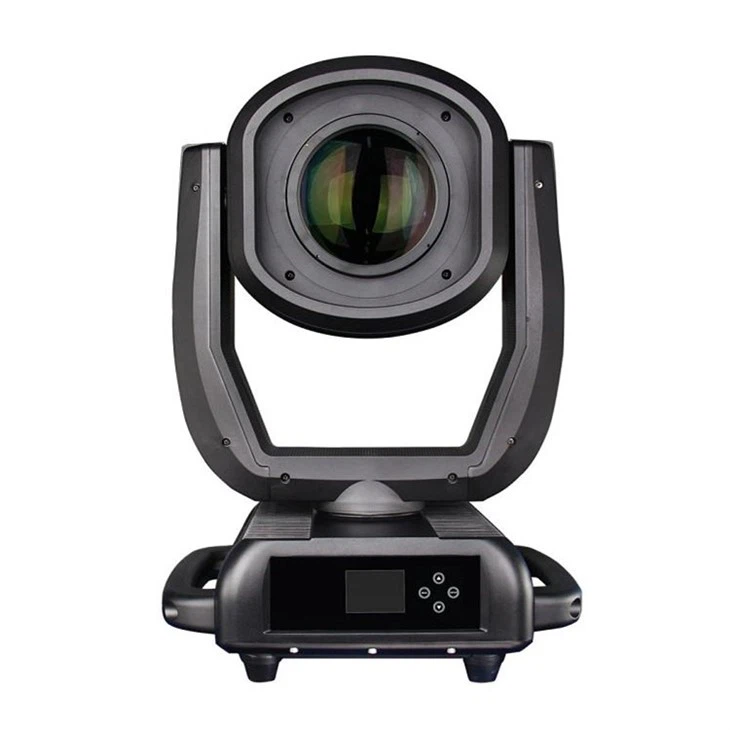

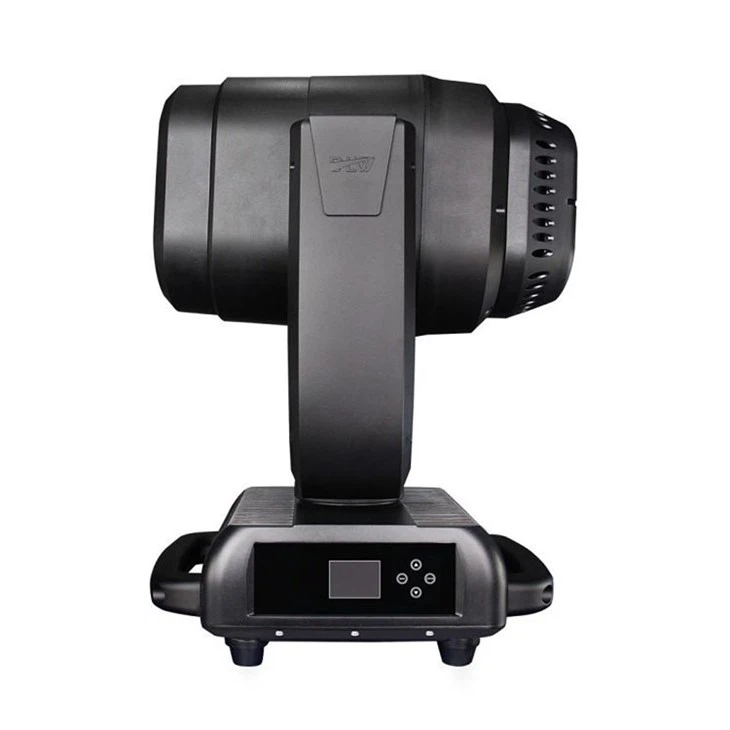

Outdoor BSW Hybrid Moving Light
Outline
DLW 482BSW RP is a versatile outdoor BSW hybrid moving light that is designed to provide a compact and flexible solution for beam spot wash in a variety of settings, including theaters, television studios, installations, and live events. Its impressive brightness is achieved through the use of the OSRAM 482W discharge lamp, along with high-quality optics lens and a well-thought-out design structure. This light also features a CMY mixing system and a color wheel, which allows for the creation of vibrant and colorful effects. Additionally, there are 20 gobos positioned on a rotating gobo wheel, as well as a static gobo wheel. To further enhance the visual experience, two Rotating Prisms are included, offering additional effects. With its intelligent features and an IP55 rating, this Moving Head Light guarantees outstanding visual effects, making it the ideal choice for enhancing any type of visual production.
● Light source: OSRAM SIRIUS HRI 482W
● Beam/Spot: 2°~ 42°, Wash: 7°~ 47°
● CMY color mixing
● One color wheel
● One static gobo wheel
● One rotate gobo wheel
● One frost
● Mechanical dimming, fast strobe
● Protection rate: IP 55
Send Inquiry
Product Details of Outdoor BSW Hybrid Moving Light
Electrical
Input Voltage: AC100-240V 50/60Hz
Input Power: 700W, PF≥ 0.98
Maximum input current: 7A
Light Source
Light source: OSRAM SIRIUS HRI 482W
Light source expected lifespan: 1500 hours
Optics & Photometric Data
Optic lens: High-definition lens with anti-reflective film
Zoom range: Beam/Spot 2°~ 42°, Wash 7°~ 47°
Color System
CMY infinite color mixing
One color wheel has 11 x color filters + open, color wheel can rotate in both directions, rainbow, stepping, sliding gradient color modes
Gobo System
One rotate gobo wheel with 8 gobos plus open, can be self-rotation and positionable.
One static gobo wheel with 12 x gobos + 7 x circle-open, effects water flow, shake.
Effect Configuration
Independent frost effect;
Mechanical dimmer: 0-100% linear adjustment;
Fast strobe, multiple strobe options, pulse, asynchronism, synchronism, random slow, medium, fast speed;
Dual prisms (8-facet prism + 24-facet prism), can rotate in both directions and create multi layers of beams;
Movement Parameters
PAN=540° - 16 bit
TILT=260° - 16 bit
Electronic Control Technology
DMX Channel: 25Ch/ 29Ch/ 38Ch
Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
Control Portals: XLR-3+ XLR-5; RJ45 (optional)
Menu display: 2.4" LCD screen; Chinese and English languages, display able to flip 180°;
Energy saving and environmental friendly, power automatically decreases when shut down the bulb;
Eco mode (support sleep mode on when standby);
Electronic sensing detection, fan intelligent detection and control;
Non-touch magnetic encoder positionable system for pan-tilt;
Size & Weight
Fixture size: 404X422X673 mm
Fixture net weight: 33 KG
Flight case size: (935X530X630) mm (1 position)
Flight case net weight: 26 KG
Working Conditions
Working environment temperature: -20℃~ 40℃
Protection rate: IP55
Specifications and documentation subject to change without notice.
