HYBRID 3-in-1 Moving Head Luminaire
Outline:
The HYBRID 3-in-1 Moving Head Luminaire DLW 550BSW PLUS is DLW’s brand new professional moving light fixture, high-output moving head. Its super uniform, even light spot won’t be out of shape when dimming, remains a complete round spot, ultra-smooth fades to black. The dual prisms with linearity zoom and focused, can be overlaying and independently rotating. The frost effect can be linearly scaled and focused too. A double-ring animation wheel creates continuous dynamic effects.
Furthermore, DLW 550BSW PLUS uses a powerful 550W discharge-lamp efficiently aligns with the cutting edge optical system, infinite CMY color mixing system, linear variable CTO, color wheel, static gobos and a rotating gobo wheel. The rotating gobo wheel contains 8 high-definition gobos, indexable and replaceable; the static gobo wheel can create water flowing, shake effects. All these powerful functions fully meet the most demand professional user for performances.
●Light source: PHILIPS MSD Platinum 500L Flex
●Zoom range: Beam 1.8°-28°, Spot 1.8°-42°, Wash 3°-48°
●CMY color mixing system
●One color wheel (15 colors)
●One static gobo wheel
●One rotating gobo wheel
●Double-ring animation
●One frost
●Double prisms
●0-100% mechanical dimming
Send Inquiry
Product Details of HYBRID 3-in-1 Moving Head Luminaire
Electrical Specification
Input Voltage: AC200-240V 50/60Hz
Input Power: 750W, PF ≥ 0.98
Maximum Input Current: 3.75 A
Light Source
Light source: PHILIPS MSD Platinum 500L Flex
Expected lifespan:4500 Hours
Optics System
Optical lens: high definition optical lens with anti-reflection coating.
Zoom range: Beam 1.8°-28°, Spot 1.8°-42°, Wash 3°-48°
Color System
CMY infinite color mixing.
CTO 2700K-7000K linearity color temperature.
15 colors (including 3 color temperature:2700K, 3200K,9000K)
Gobo System
One rotating gobo wheel: 8 gobos + open; indexable and replaceable, bidirectional rotation.
One static gobo wheel: 13 gobos + 5 rounds open,scrolling, shake effects.
one double-ring animation wheel, can continuously simulate dynamic clouds, flames, scrolling effects.
Effect Configuration
One frost, linearity zoom and focused;
Dual prisms, linearity zoom and focused, can be stacked and independent rotation in two ways.
Linearity dimmer, 0-100% mechanical dimming control, keeping an ultra-smooth, complete spot while fades to black;
Fast strobe, with multiple strobe options: pulse, synchronous, asynchronous, random;
Fixture Movement
PAN= 540° - 16 bit
TILT= 260° - 16 bit
Electronic Control
DMX Channels: 29CH/ 31 CH/ 40 CH;
Control Protocols: DMX512, RDM; Art-Net, (optional : sACN, wireless function)
Data Portals :XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out)
Power Portals : Waterproof Locking Power In/Out;
Menu Display: 2.4" LCD screen; Chinese and English language, menu available to be displayed 180° reversely;
Built-in self-rechargeable battery, menu can be edited when without power supply (optional);
Support external charging bank to enter the menu to set address code and other settings;
Energy saving and environmental friendly, power automatically decreases when shut down the bulb;
Support Eco mode (sleep function when standby);
Electronic sensors testing, fan intelligent detection and control;
Non-touching magnetic encoder positioning system for pan/tilt.
Size & Weight

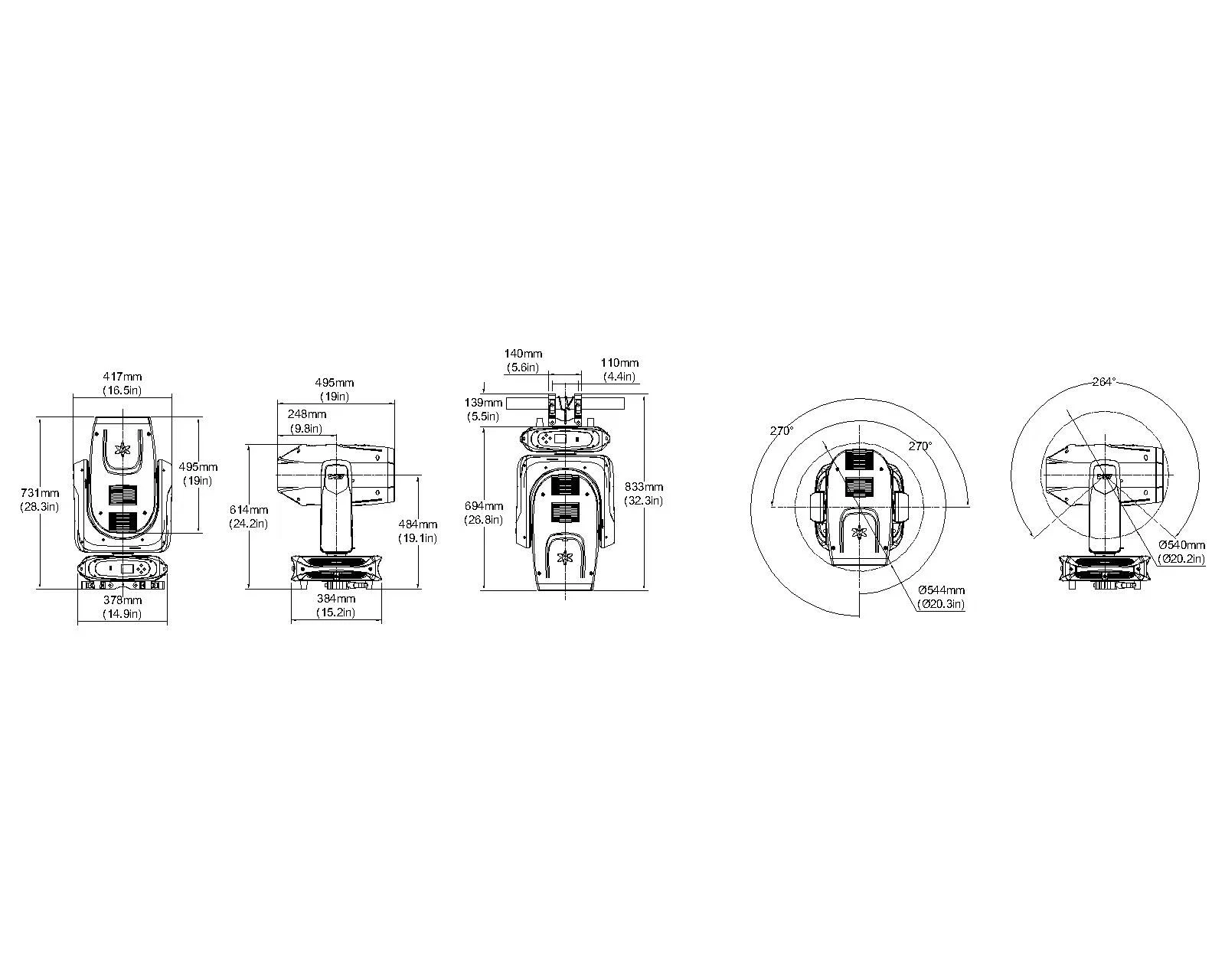

Fixture size: 417X417X731 mm (Integrated hook)
Fixture weight: 29 kg
Flight case size: 1045X648X845 mm (2 positions)
Flight case weight: 43 kg
Carton size: 525X485X855 mm (1 positions)
Working Conditions
Minimum and maximum ambient temperature: -20℃~ 40℃
Protection rating: IP20
Specifications and documentation subject to change without notice.
