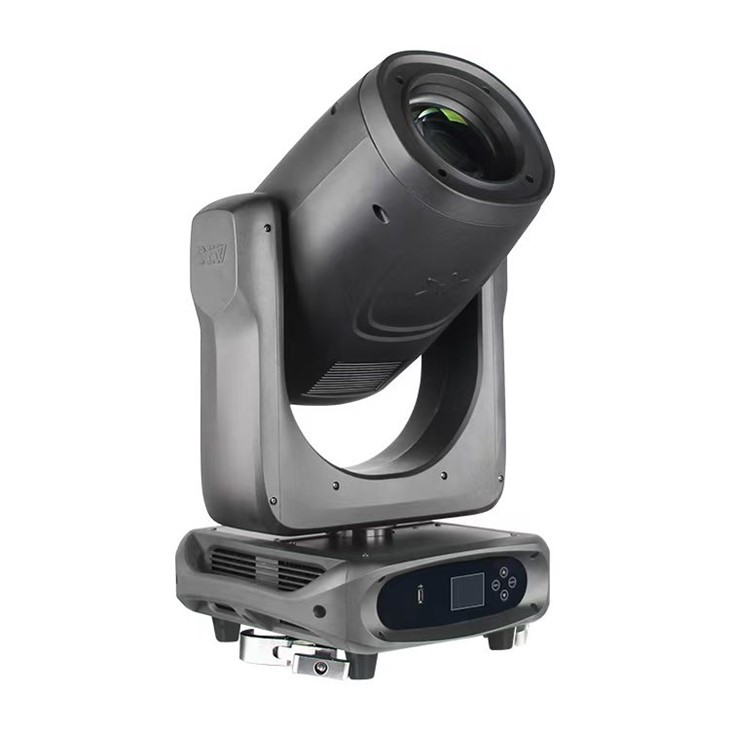

Hybrid Moving Head With Motorized Focus & Zoom (480W)
Outline:
The hybrid moving head DLW 480BSW PLUS elevates the original smarty hybrid fixture (480w) to a new level, is a new professional moving head light fixture designed for the professional user to create a stunning experience, suitable for all types of production in theatre and TV.
Its super uniform light spot, consistently deliver the highest quality light, super-refining dimming system produces imperceptible, ultra-smooth fades to black, keep the light remain a complete round spot in shape. Unleash your creativity using the prisms, frost, animation, excellent gobo projection, color wheel, smooth CMY colour mixing and wash effects. There are dual overlaping prisms, independent rotating or stacked, with motorized focus & zoom. A double-ring animation wheel can be inserted to create continuous dynamic effects. Using 482W short arc lamp make it a powerful light well suited for live event production. The cutting edge optical system, good color reproduction make it professional use for performance arts.
●Light source: PHILIPS MSD Silver 480W LL
●Zoom range: Beam 1.8°-28°, Spot 1.8°-42°, Wash 3°-48°
●CMY color mixing system
●One color wheel (15 colors)
●One static gobo wheel
●One rotating gobo wheel
●Double-ring animation
●One frost
●Double prisms
●0-100% mechanical dimming
Send Inquiry
Product Details of Hybrid Moving Head With Motorized Focus & Zoom (480W)
Electrical Specification
Input Voltage: AC100-240V 50/60Hz
Input Power: 700W, PF ≥ 0.98
Maximum Input Current: 7 A
Light Source
Light source: PHILIPS MSD Silver 480W LL
Expected lifespan:4000 Hours
Optics System
Optical lens: high definition optical lens with anti-reflection coating.
Zoom range: Beam 1.8°-28°, Spot 1.8°-42°, Wash 3°-48°
Color System
CMY infinite color mixing
One color wheel with 15 colors (including 3 color temperature:2700K, 3200K,9000K)
Gobo System
One rotating gobo wheel (8 gobos + open), indexable and replaceable, bidirectional rotation.
One static gobo wheel (13 gobos + 5 rounds open), water flowing, shake effects.
one double-ring animation wheel, can continuously simulate dynamic clouds, flames, flowing water effects.
Effect Configuration
One frost, linearity zoom and focused;
Dual prisms, linearity zoom and focused, can be stacked and independent rotation in two ways.
Linearity dimmer, 0-100% mechanical dimming control, keeping an ultra-smooth, complete spot while fades to black;
Fast strobe, with multiple strobe options: pulse, synchronous, asynchronous, random;
Fixture Movement
PAN= 540° - 16 bit
TILT= 260° - 16 bit
Electronic Control
DMX Channels: 31 Ch/ 32 Ch/ 40 Ch;
Control Protocols: DMX512, RDM; (optional : Art-Net, sACN, wireless function);
Data Portals :XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
Power Portals : Waterproof Locking Power In/Out;
Menu Display: 2.4" LCD screen; Chinese and English language, menu available to be displayed 180° reversely;
Built-in self-rechargeable battery, menu can be edited when without power supply (optional);
Support external charging a power bank to enter the menu to set address code and other settings;
Energy saving and environmental friendly, power automatically decreases when shut down the bulb;
Support Eco mode (sleep function when standby);
Electronic sensors testing, fan intelligent detection and control;
Non-touching magnetic encoder positioning system for pan/tilt.
Size & Weight
Fixture size: 417X417X731 mm (Integrated hook)
Fixture weight: 29 kg
Flight case size: 1045X648X845 mm (2 positions)
Flight case weight: 43 kg
Carton size: 525X485X855 mm (1 positions)
Working Conditions
Minimum and maximum ambient temperature: -20℃~ 40℃
Protection rating: IP20
P.s. Specifications and documentation subject to change without notice. Test lab data may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, etc. The company reserves the right of final interpretation.
