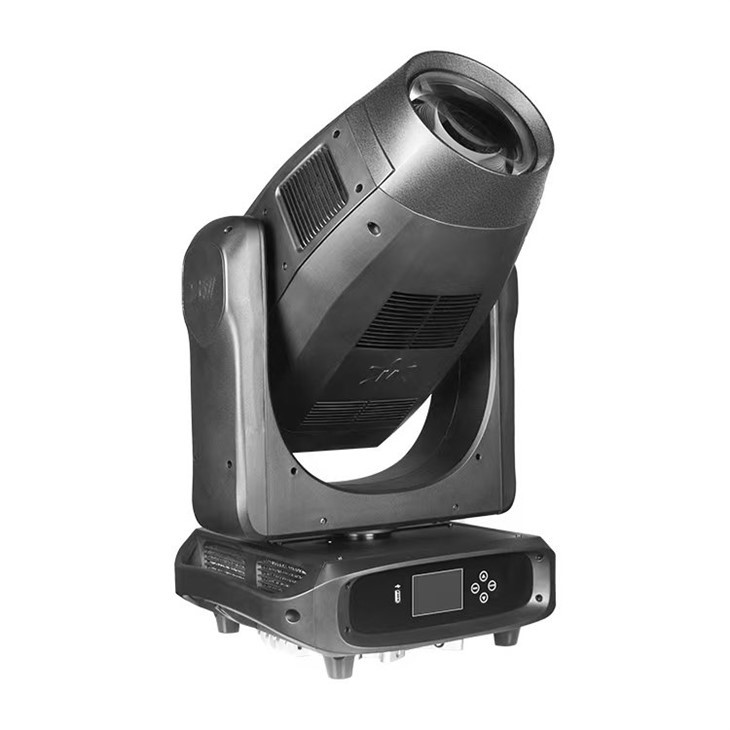

1500W Moving Head Profile
DLW L1500H PRO
Outline:
DLW L1500H PRO uses a custom-designed 1500W high color rendering LED engine. The lamp can change with dimming power, but CRI, R9 and CCT remain basically unchanged, and it is equipped with a tint correction channel. At the same time, it has very powerful functions: 5°-50° zoom, CMY infinite color mixing, linear CTO, flowing water color wheel, 6 rotating gobos, 9 fixed gobos, 1 continuous dynamic wheel, infinite rotating cutting, four-sided rotating prism, electric aperture, 2-speed professional atomization. The powerful functions will become the highlight of any performance. And the unparalleled cost performance meets the needs of users.
●1500W LED white light module
●5°～50°
●CMY+CTO
●One color wheel
●One rotate gobo wheel
●One static gobo wheel
●One animation wheel
●One framing system
●Motorized iris
●One prism, dual frost filters
●Electronic strobe and dimming (4 dimming curves)
Send Inquiry
Product Details of 1500W Moving Head Profile
Electrical Specification
Input Voltage: AC100-240V 50/60Hz (electronic auto-ranging)
Input Power: 1600W, PF ≥ 0.98
Maximum input current: 16 A
Light Source
Light source: 1500W LED white source module (choice of high brightness mode or high CRI mode)
CRI: Ra≥ 70 (DLW L1500 PRO high brightness version);
Ra≥ 95, R9≥ 95 (DLW L1500H PRO high CRI version)
LED expected lifespan: 20000 Hours
Optics & Photometric Data
Frontal lens: high definition optical lens with anti-reflection coating.
Zoom range: 5°~ 50°
Color System
CMY infinite mixing, output high saturated color (RGB), pure color.
Variable CTO 2700K-6200K (high CRI version can keep same CCT during dimming process).
One color wheel, has 6 color filters plus open, can create effects of rainbow, stepping, sliding fade and random color mode.
Gobo System
One rotating gobo wheel with 6 gobos, each can be indexing and bi-directional rotating, making effects of self-rotation, scrolling and shaking. The gobo wheel allows for precise control at 16bit.
One static gobo wheel with 9 gobos + 1 open, can create effects scrolling in both directions.
One animation wheel, can simulate dynamic clouds, fire and flowing water effects.
Framing System
One framing system with 4 individually controllable curtain blades, can make the framing graphics 360° infinite rotating and accurately positioning, without distortion.
Effect Configuration
Two frost filters, can be stacked, linear motorized zoom with focus;
One prism with continuous rotation in both directions and indexing, can linear zoom with focus.
0-100% electronic dimming control, 4 choice of dimming curves, 4 choice of dimming speeds;
Electronic strobe effect with variable speed 1-25HZ, with multiple strobe options.
High speed electric iris 5-100% linear adjustable, built-in macro with multiple effect variation.
Fixture Movement
PAN = 540° - 16 bit
TILT = 270° - 16 bit
Electronic Control
DMX Channels: 37 Ch/ 35 Ch/ 60 Ch/ 43 Ch;
Control Protocols: DMX512, RDM; (optional: Art-Net, sACN, wireless function)
Data Portals :XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
Power Portals : Waterproof Locking Power In ;
Menu screen: 3.5" LCD; menu display can be 180° reversed;
Built-in self-rechargeable battery for menu display (optional);
USB port supports portable charger which supply power to enter menu setting;
Electronic sensing detector & intelligent fans monitor, control temperature;
Supports energy saving mode (standby hibernation function);
Non-touching magnetic encode position system for pan-tilt;
Size & Weight
Fixture size: (462X462X807) mm (Integrated hook)
Flight case size: (710X550X865) mm (1 position)
Fixture weight: 45 kg
Flight case weight: 30 kg
Carton size: 545x525x930 mm (1 positions)
Working Conditions
Minimum and maximum ambient temperature: -20℃~ 40℃
Protection rating: IP 20
*Specifications and documentation subject to change without notice.
