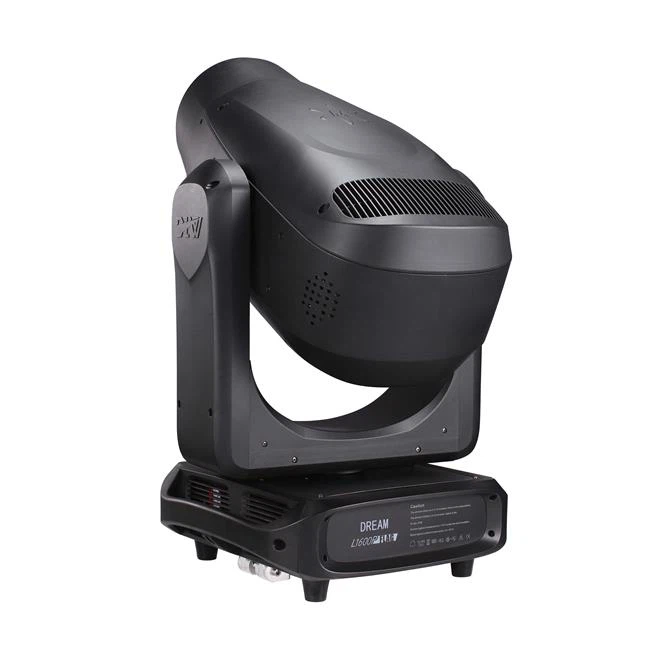

1600W LED Profile Moving Head

DREAM L1600P PLUS
DREAM L1600HP PLUS

Outline
DREAM L1600P PLUS is a high-power, high-output, Multi-Functional LED Moving Head Profile With Framing.
One of its notable features is its ultra-silent operation, thanks to its customized LED engine made of high thermal conductivity materials and high emissivity coated treatment. Additionally, a high-quality silent fan contributes to the significant reduction in noise.
Another standout features of this LED moving head is its innovative framing system, capable of shaping a graphic in 0.2 seconds. Moreover, the framing system can rotate infinitely in both directions. This is pioneering innovated and patented by DLW.
DREAM L1600P PLUS is excellent workhorse for the professional entertainment and big shows.
Laminated with 1600-watt LED white light engine and featuring 5°~ 50°, it delivering the perfect lumen output needed for larger shows and installation applications, meets all the requirements of long distance projection.
In brief, this 1600W LED profile moving head offers a comprehensive toolkit for lighting design. It includes a CMY color mixing system, CTO, a color wheel, prism, motorized iris and dimmer, strobe effects, two grades of frosts, animation, full curtain framing system and a wide range of gobo selections. With such versatility, it is ideal for a wide range of lighting applications.

● Light source: 1600W White LED module
● Zoom range: 5°~ 50°
● CMY + CTO
● One color wheel
● One static gobo wheel
● One rotate gobo wheel
● One animation wheel
● One framing system
● High speed motorized iris
● One prism, dual frost filters
● Linear dimming

Send Inquiry

Product Details of 1600W LED Profile Moving Head

Electrical

Input Voltage: AC200-240V 50/60Hz

Input Power: 1800W, PF≥0.98

Maximum input current: 9A

Light Source

Light source: 1600W White LED module (choice of high brightness mode or high CRI mode)

Ra≥ 70 (DREAM L1600P PLUS high brightness version)

Ra≥ 95 (DREAM L1600HP PLUS high CRI version)

LED expected lifespan: 20000 Hours

Optics & Photometric Data

Frontal lens: High-definition lens with anti-reflective film

Zoom range: 5°~ 50°

Color System

CMY infinite mixing, output high saturated color (RGB), pure color.

CTO color temperature linear adjustable 3200-6200K

One color wheel, has 7 color filters plus open, can be bidirectional scrolling, can create effects of rainbow, stepping, sliding fade and random color mode.

Gobo System

One rotate gobo wheel with 6 gobos, can be indexing and bi-directional rotating, can be self-rotation, create effects of flowing water and shaking, the gobo wheel can be accurately controlled at 16bit.

One static gobo wheel with 9 gobos + 1 open, the gobo wheel can create bidirectional flowing effect.

One animation wheel, can imitate clouds, fire and flowing water for effects.

Framing System

One complete infinite rotatable framing system, 4 x individually controllable full curtain blades with full variable angle through the entire insertion path, can make the framing graphics 360° infinite rotating and accurately positioning, without distortion.

Effect Equipment

One prism (4-facet) with rotation in both directions.

Two frost filters, high brightness output.

0-100% dimming control, 4 choice of dimming curves, 4 choice of dimming speeds.

Electronic strobe 1-25HZ, multiple strobe options.

High speed motorized iris 5-100% linear adjustable, built-in macro function.

Fixture Movement Parameters

PAN=540° - 16 bit

TILT=270° - 16 bit

Electronic Control Technology

DMX Channels: 37 Ch/ 40 Ch/ 60 Ch

Control Protocols: DMX512, RDM; Art-Net, sACN, wireless function (optional)
