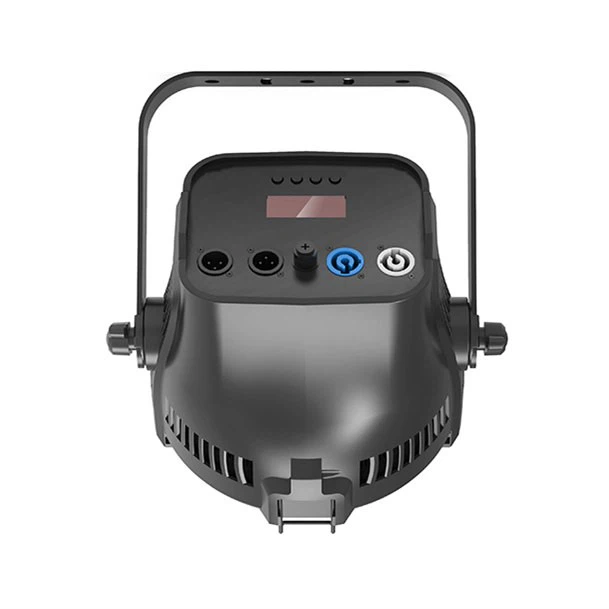

PAR LED 18x10w
Outline
DREAM 1018C4 PAR is LED par 18x10w. It is an LED wash effect lamp that features 18 RGBW four-in-one LED beads and honeycomb lens. It offers optional beam angles of 15, 25, 45, and 60 degrees, providing a cost-effective lighting solution. With its rich colors and uniform color mixing, this LED par is ideal for indoor applications.
● Description: par led 18x10w
● DMX: 5-pin XLR In/Out
● DMX Modes: 4/9 channels
● LEDs: 18 x 10W
● LED Type: RGBW
● Beam Angle: 15°/25°/45°/60° (select one)
● Effects: strobe, dimming, preset colors and fading
● Power Consumption: 200W
● Power Supply: 100-240V, 50/60 Hz
● Dimensions: 295X206X271 (mm)
● Weight: 3.5Kg
Send Inquiry
Product Details of PAR LED 18x10w
Electrical Specification
Input voltage: AC100-240V 50/60Hz
Input power: 200W
Maximum input current: 2A
Light Source
Light source: 18 x 10W RGBW LED (imported)
LED lifespan: 50,000 hours
Optics & Photometric Data
Diameter 45mm honeycomb lens
Beam angle: 15°/25°/45°/60° (selectable)
Color System
Red, green, blue and white, independent controllable
Effects Configuration
0-100% independent linear dimming
Fast strobe: 1-25Hz
Color macro and color fade effect
Housing
Aluminum alloy die-casting shell
Electronic Control Technology
Control Mode: 4ch/9ch
Control Protocols: DMX, RDM
Data Portals : XLR-5 In/Out
Power Portals : IP20 Locking Power In/Out
Display: LED display with 4 buttons
Color starting brightness setting; over-current, over-voltage, over-temperature protection;
Temperature sensor detection, intelligent adjustment of light source power;
Master-slave control mode.
Size and Weight
Fixture size: 295X206X271 (mm)
Fixture Net weight: 3.5 kg
Carton size: 260x260x315 (1 positions)
G. W. : 4.2 kg (1 position carton)
Carton size: 545x545x345 mm (4 positions)
G. W. : 18.5 kg (4 position carton)
Working Conditions
Working temperature: -20℃~40℃
Protection class: IP20
Specifications and documentation subject to change without notice.
