Hybrid Laser Moving Head
Outline

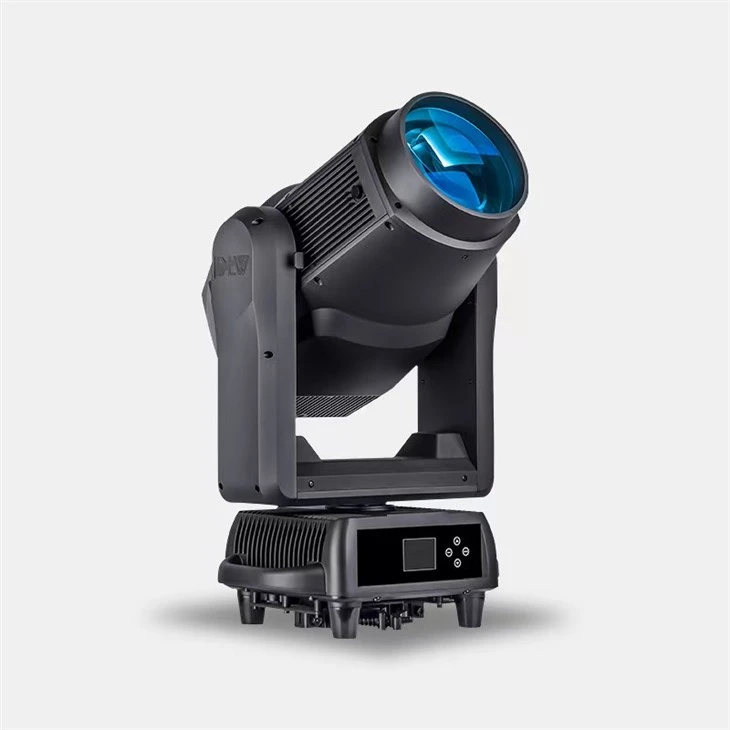

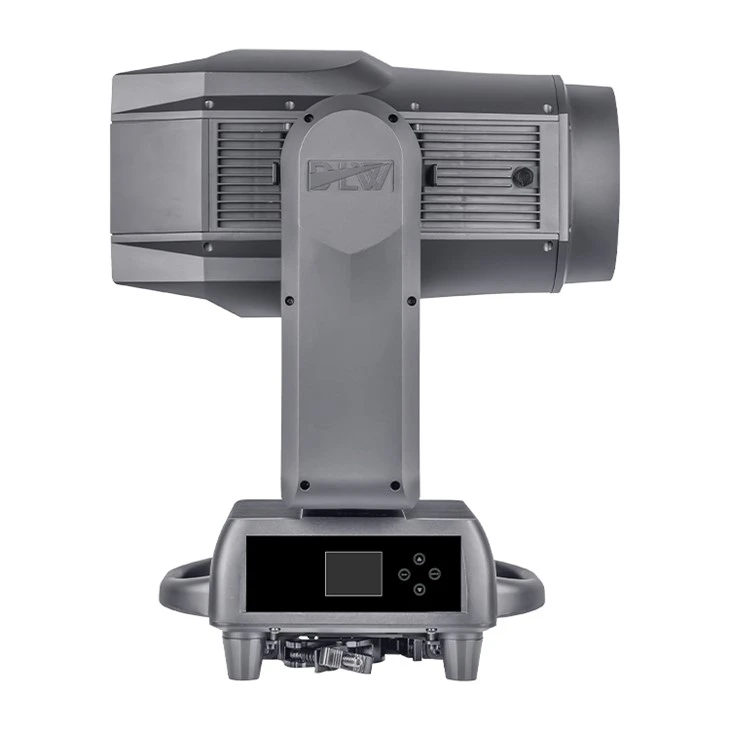

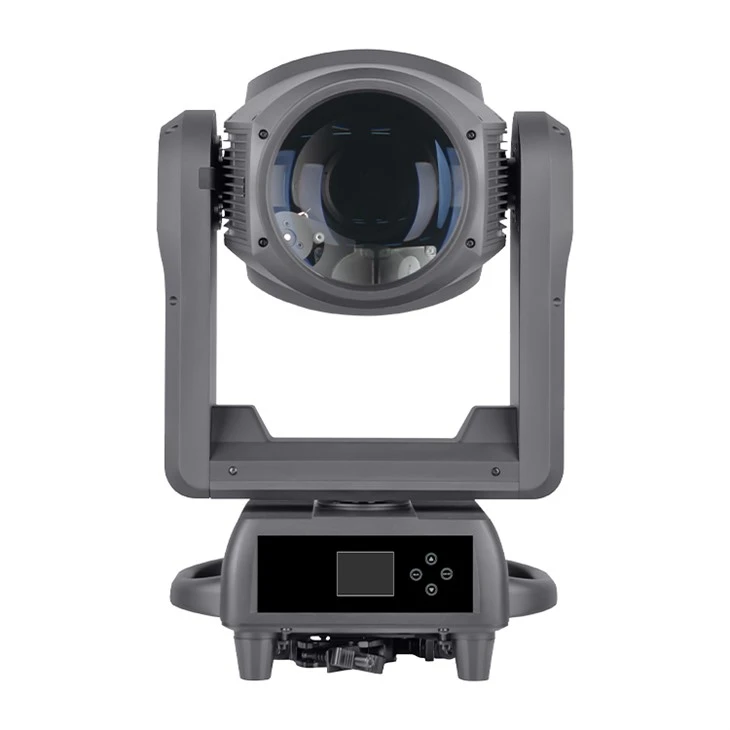

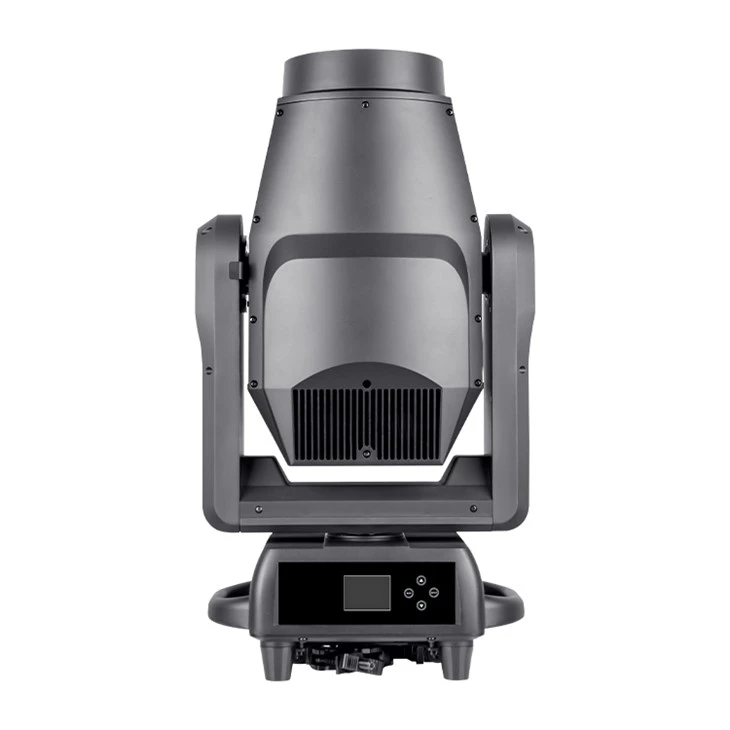

The DLW J500BSW IP Hybrid Laser Moving Head light fixture, powered by a 400W white phosphor laser source, delivers an ultra-intense, high-contrast beam with outstanding projection quality and breathtaking visual brilliance.
Its large 182 mm front lens, paired with precision optics, produces flat-field beams, crisp projections, and dynamic effects. A versatile 0.7°–45° zoom range, automatic effect adjustment, and integrated frost filters enable seamless transitions from sharp beams to smooth washes.
Creative flexibility is further enhanced with CMY color mixing, a color wheel, and CTO, offering everything from bold, saturated hues to subtle, refined tones. endless pan and 270° tilt rotation provide fluid, uninterrupted motion—ideal for slow rotations, rapid spins, and stunning aerial effects.
Built for demanding environments, the IP66-rated design guarantees dependable outdoor performance, while quick and straightforward maintenance helps minimize downtime and operating costs.
As a true hybrid fixture, it excels in beam, spot, and wash applications. With 31 fixed gobos, 9 rotating gobos, dimming, strobe, dual prisms, animation wheel and frost filters, it unlocks extensive creative possibilities.
Compact, lightweight (31 kg), and easy to handle, the J500BSW IP Hybrid Laser Moving Head is ideal for both rental companies and lighting designers—delivering reliability, flexibility, and powerful performance in one game-changing solution.
● 400W phosphor laser engine
● 0.7°–45° zoom range for beam-to-wash versatility
● Color system: color wheel + CMY mixing + linear CTO correction
● 31 fixed gobos + 9 rotating gobos + open
● Dual prisms, animation wheel and frost filter for dynamic effects
● Lightweight design (31 kg) with IP66-rated protection
Send Inquiry
Product Details of Hybrid Laser Moving Head
Electrical Specification
Input voltage: AC100-240V 50/60Hz
Input Power: 550W
Maximum input current: 5.5 A
Light Source
Light source: 400W white laser-based light engine
Light source expected lifespan: 12000 hours
Optics & Photometric Data
Frontal lens with HD anti-reflective film
Zoom angle:
Beam 0.7°-20°
Spot 3°-45°
Color System
CMY infinite color mixing system
CTO linear adjustable color temperature
One color wheel, 19 x color filters, color wheel can rotate in both
directions, effects of rainbow, stepping, gradual changing colors
Gobo System
One rotating gobo plate with 9 bi-directional rotating gobos. It can rotate in two directions, have scrolling and jitter effects, and
the gobo wheel can be positioned accurately with 16 bits
One static gobo wheel, 31 gobo effects, can achieve scrolling and shaking effects
One animation wheel effect, which can continuously move to simulate clouds, flames, and scrolling effects
Effect equipment
2 prisms (4- facet circle + 4-facet linear), with linear zoom and focused, can be overlaying or independent rotating in both directions
One frost with linear zoom and focused
0-100% electronic dimming control, 4 choice of dimming curves,
4 choice of dimming speeds
Electronic strobe 1-25HZ, with multiple strobe options
Fixture Movement Parameters
PAN= endless rotation
TILT= 270° - 16 bit
Electronic Control
Channel: 26 CH / 30 CH / 39 CH;
Control Protocols: DMX512, RDM; (optional: Art-Net, sACN, wireless function)
Data Portals: Waterproof XLR-3+ XLR-5; (optional Ethernet port : RJ45 In/Out);
Power Portals : Waterproof Locking Power In/Out;
Menu screen: 1.77" LCD; menu display can be 180° reversed;
Built-in self-rechargeable battery for menu display (optional);
Electronic sensing detector & intelligent fans monitor, control temperature;
Supports energy saving mode (standby hibernation function);
Non-touching magnetic encode position system for pan-tilt;
Size & Weight
Fixture size:389X389X703 mm
Fixture net weight: 31 kg
Flight case size:(990X550X800) mm (2 positions)
Flight case weight: 43.5 kg
Carton size: 505X405X845 mm (1 positions)
Working Conditions
Working environment temperature: -20℃~ 40℃
IP rate: IP66
1. What is DLW J500BSW IP Hybrid Laser Moving Head?
DLW J500BSW IP is a professional hybrid laser moving head fixture combining beam, spot, and wash functions for concerts,
outdoor events, touring productions, and large-scale entertainment applications.
2. What makes DLW J500BSW IP different from traditional moving heads?
DLW J500BSW IP uses laser illumination technology to deliver higher contrast, sharper beams,
and longer projection distance compared with conventional LED moving heads.
3. What applications are suitable for DLW J500BSW IP?
DLW J500BSW IP is designed for:
• Concert touring
• Festival stages
• Stadium shows
• Outdoor events
• Rental companies
• Theme parks
• Large entertainment venues
Light Source & Output
4. What laser source does DLW J500BSW IP use?
DLW J500BSW IP uses a high-performance white phosphor laser source designed for powerful output and long-distance projection.
