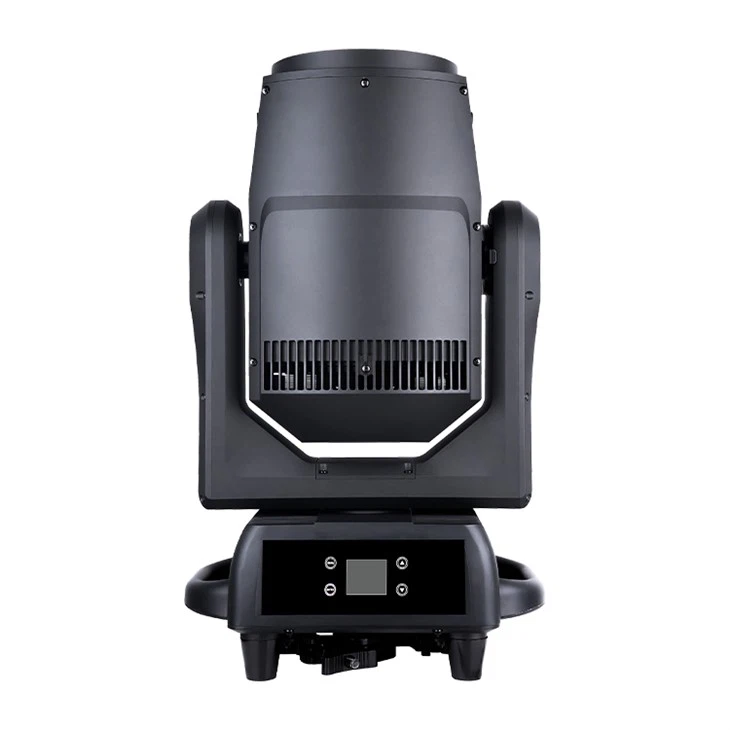

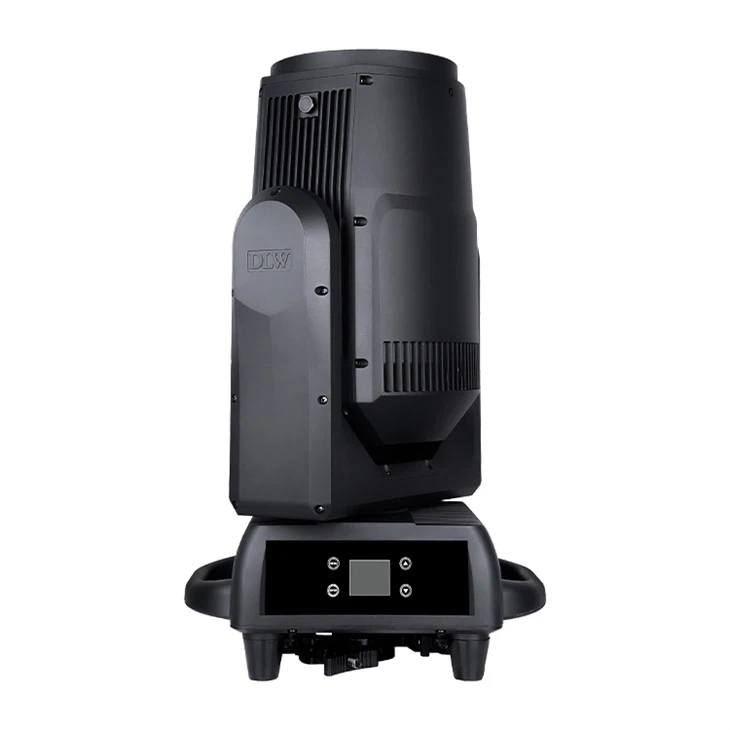

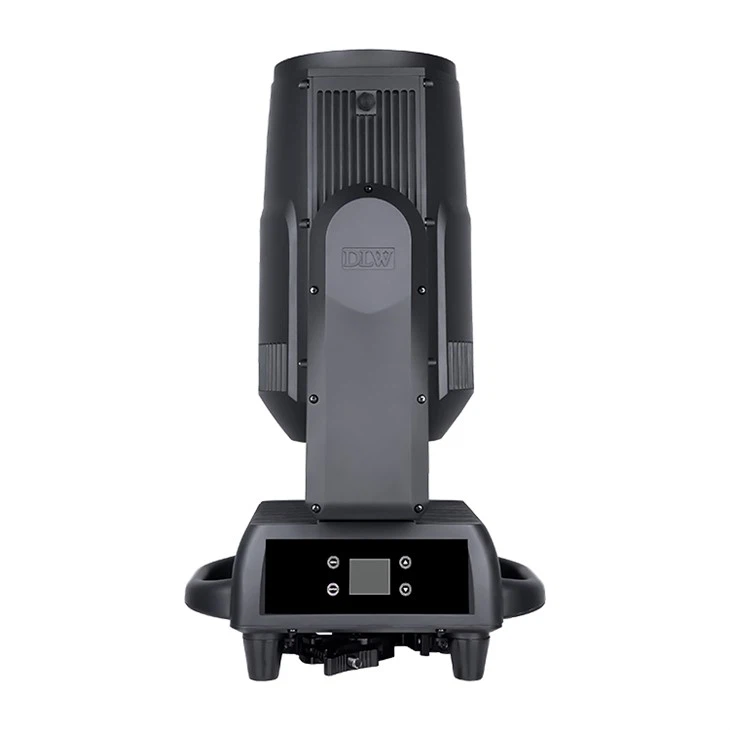

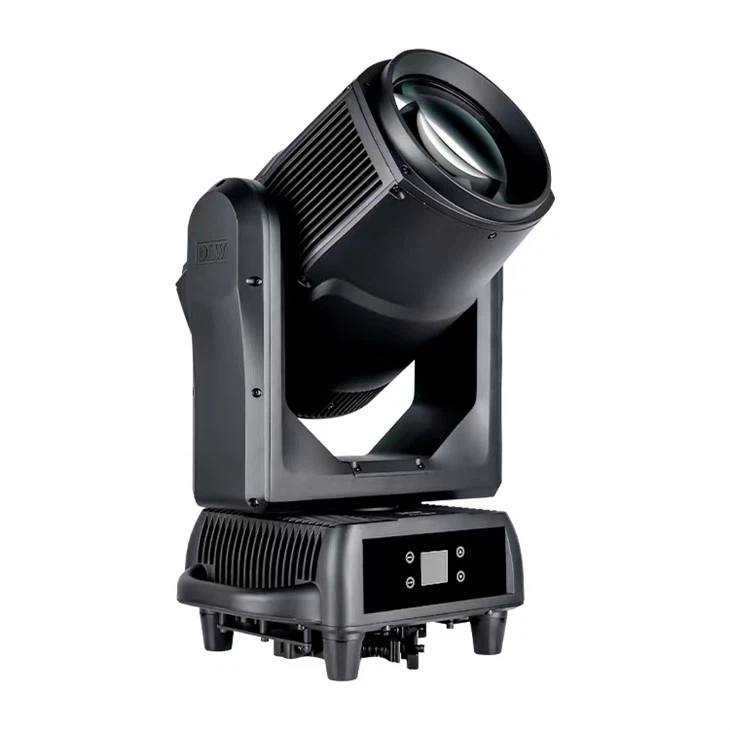

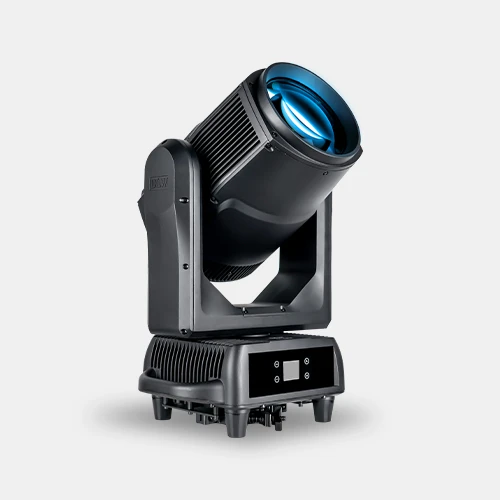

Waterproof Sharpy Beam Fixture

Electrical Specification

Input Voltage: AC100-240V 50/60Hz

Input Power: 550W

Maximum input current: 5.5 A



Light source

Light source: PHILIPS MSD Platinum19 R LL

Expected lifespan: 5000 hours



Optics & Photometric Data

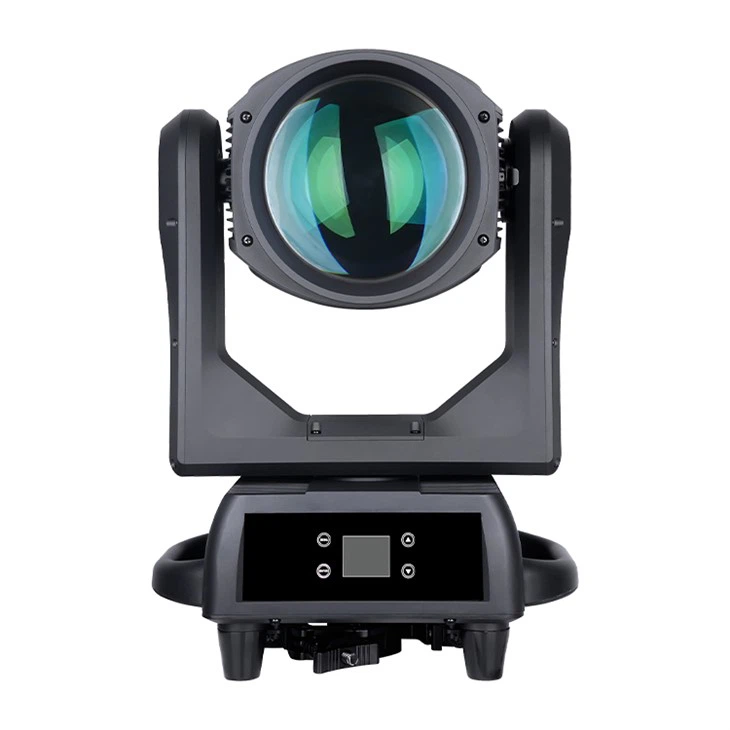

Front Lens: High-definition optical lens with anti-reflective coating, delivering excellent light transmission and beam clarity.

Beam Angle: 1.8° ultra-narrow beam angle for long-distance projection and sharp aerial beam effects.



Color System

CMY infinite mixing.

14 color filters



Gobo system

Static Gobo Wheel:
Equipped with one static gobo wheel featuring 18 gobos (including 7 round open gobos), capable of creating dynamic effects such as scrolling and shaking movements.



Effect Configuration

One frost filter with linear zoom and focused.

0-100% electronic dimming control.

Fast strobe, multiple strobe options, pulse, asynchronism, synchronism, random slow, medium, fast speed

2 prisms (8-facet + 24-facet circular) can be overlaying with multi-layer of beam effect, rotating in both directions.



Fixture Movement Parameters

PAN= 540° - 16 bit

TILT= 270° - 16 bit



Electronic Control

DMX Channels: 20CH / 23CH / 29CH

Control Protocols:
DMX512, RDM
(Optional: Art-Net, sACN)

Data Connection:
Waterproof XLR-3 and XLR-5 DMX In/Thru
(Optional: RJ45 Ethernet In/Out port)

Power Connection:
Waterproof locking power input/output connectors.

Display & User Interface:
1.77" LCD menu display with 180° reversible screen orientation.

Intelligent Monitoring System:

Electronic sensor detection system

Intelligent fan monitoring and temperature control system

Energy Saving Mode:
Supports standby hibernation function for reduced power consumption.

Position Feedback System:
Non-contact magnetic encoder positioning system for accurate PAN/TILT movement control.



Size& Weight

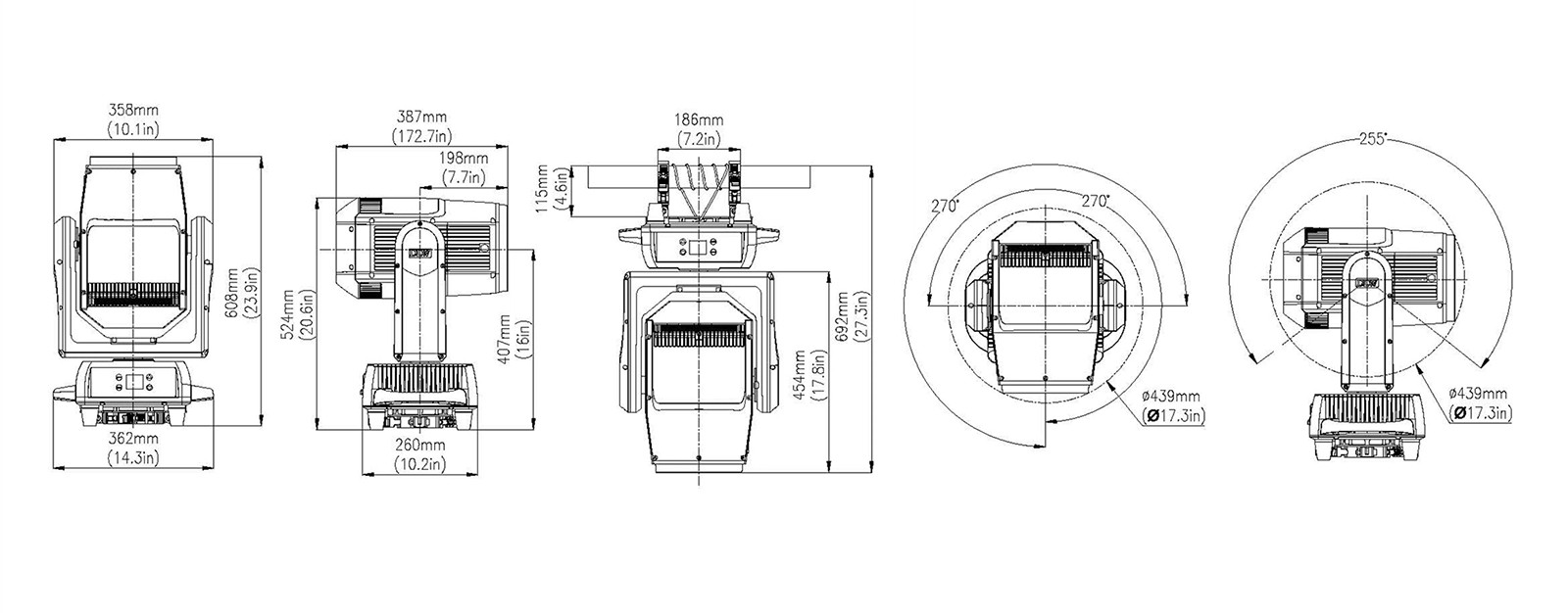

Fixture Dimensions:
362 × 362 × 608 mm
(Including integrated hook)

Net Weight:
24.5 kg

Flight Case Dimensions:
1022 × 520 × 742 mm
(2 fixtures per case)

Flight Case Weight:
40 kg

Carton Dimensions:
505 × 465 × 649 mm
(1 fixture per carton)



Working Conditions

Working environment temperature: -20℃~ 40℃

Protection rate: IP66







Questions &Answers:



1. Why is DLW 420B IP suitable for outdoor stage lighting projects?

DLW 420B IP is designed for professional outdoor stage applications with an IP66 waterproof and dustproof housing.

For engineering projects such as outdoor concerts, festivals, stadium events, and permanent installations, the fixture provides reliable operation under challenging weather conditions while delivering powerful beam effects.

2. What are the advantages of using an IP66 waterproof sharpy beam fixture for outdoor installations?

An IP66 waterproof sharpy beam fixture provides higher reliability for outdoor projects by protecting internal components against dust and powerful water exposure.

For engineering contractors, this means:

Reduced maintenance requirements

Better weather resistance

Longer equipment lifetime

More flexible installation possibilities

DLW 420B IP is engineered with IP66 protection for both touring and fixed outdoor applications.



3. How does the 1.8° beam angle benefit outdoor event lighting design?

The 1.8° ultra-narrow beam angle creates highly concentrated aerial beams with strong visual impact.

For large outdoor venues, a narrow beam design helps lighting designers achieve:

Long-distance projection

Sharp sky beam effects

Clear aerial visibility

Powerful concert atmosphere

DLW 420B IP uses a high-definition optical system with a 1.8° beam angle and 165mm front lens.



4. Is DLW 420B IP suitable for large outdoor concerts and festivals?

Yes. DLW 420B IP is suitable for:

Outdoor concerts

Music festivals

Touring productions

Stadium shows

Large-scale entertainment events

Its 420W discharge lamp source, narrow beam optics, and IP66 protection allow it to perform reliably in demanding outdoor environments.



5. Why choose the 420W sharpy beam fixture instead of A traditional indoor beam light?

A 420W waterproof sharpy beam fixture provides better adaptability for outdoor engineering projects.

Compared with indoor beam fixtures, DLW 420B IP offers:

IP66 weather protection

Outdoor installation capability

Higher environmental reliability

Professional touring design

This reduces the risk of equipment failure during outdoor productions.



6.How should production companies look for an outdoor lighting supplier?

Professional production companies should evaluate suppliers based on:

Product reliability

Technical support

Spare parts availability

Warranty service

Product certification

Experience with professional events

A reliable supplier helps ensure successful productions.



7.What maintenance is required for waterproof sharpy beam fixtures?

Regular maintenance includes:

Cleaning optical components

Checking seals and connectors

Inspecting cooling systems

Testing DMX communication

Performing regular mechanical checks

Proper maintenance ensures consistent performance for rental operations.



8.Why choose DLW waterproof sharpy beam fixtures for professional events Production?

DLW wateerproof sharpy beam fixtures are designed for professional applications including concerts, festivals, touring productions, and large outdoor events.

combine:

IP66 outdoor protection

Powerful beam performance

Professional optical systems

Reliable movement control

Touring-friendly design

DLW provides reliable outdoor lighting solutions for rental companies ,event productions and projects worldwide.
