Outdoor Sharpy Beam Fixture
Outline:
DLW 420BV IP waterproof Sharpy beam moving head highlights versatility and reliability. Engineered with a robust IP66 rating, it stands impervious to dust and moisture, delivering flawless performance in any environment—whether indoors under controlled conditions or outdoors amidst the elements. At its heart, a powerful 420W short-arc lamp produces intense brightness with exceptional longevity to ensure consistent, show-stopping illumination performance after performance.
Powered by a 420W short-arc discharge lamp, the fixture delivers an exceptionally bright, high-intensity beam with excellent lamp life and consistent performance. Its precision optical system produces an ultra-narrow 1.8° beam angle, creating razor-sharp aerial effects that cut through the air with outstanding clarity and impact.
Designed for maximum creative flexibility, the DLW 420BV IP Outdoor Sharpy Beam Fixture features a static gobo wheel, 8-facet and 24-facet rotating prisms, linear frost, and 14 dichroic color filters, allowing lighting designers to create dynamic beam effects, vivid color combinations, aerial textures, and smooth wash transitions. The advanced optical system ensures crisp projection, vibrant color reproduction, and spectacular visual effects for productions of any scale.
Whether used for concert tours, festivals, theatres, theme parks, architectural installations, or large-scale outdoor events, the DLW 420BV IP Outdoor Sharpy Beam Fixture combines exceptional brightness, reliable weatherproof performance, and versatile effect capabilities, making it an indispensable fixture for professional lighting designers seeking to bring their most ambitious creative visions to life.
Key Feature:
Light source: PHILIPS MSD Platinum19 R LL(420W)
Beam angle: 1.8 °
Frontal Lens: 165mm
One static gobo wheel
One color wheel
One frost
Double prisms
Protection rate: IP66
Send Inquiry
Product Details of Outdoor Sharpy Beam Fixture
Electrical Specification
Input Voltage: AC100-240V 50/60Hz
Input Power: 550Watt
Maximum input current: 5.5 A
Light source
Light source: PHILIPS MSD Platinum19 R LL
Rated lifespan: 5000 hours
Optics & Photometric Data
Frontal lens: high definition optical lens with anti-reflection coating.
Beam angle: 1.8°
Color System
One color wheel with 14 color filters + 1 open white, enabling bidirectional color changes
Rainbow, step, and slide gradient color modes
Gobo system
One static gobo wheel with 18 gobos (7 round open), supports flowing and shaking effects.
Effect Configuration
1 frost effect
Mechanical linear dimming: 0-100%
Rapid strobe with multiple strobe modes: pulse, asynchronous, synchronous, random (slow/medium/fast)
8-facet prism + 24-facet prism, capable of overlaying multi-layer beam effects with bidirectional rotation
Fixture Movement Parameters
PAN= 540° - 16 bit
TILT= 270° - 16 bit
Electronic Control
DMX Channel: 20CH/23CH/29CH
Control Protocols: DMX512, RDM; (optional: Art-Net, sACN)
Data Portals :Waterproof XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
Power Portals : Waterproof Locking Power In/Out;
Menu screen: 1.77" LCD, menu can be 180° reversed display;
Electronic sensor detection, fan intelligent detect and control temperature;
Supports energy saving mode with standby/sleep function;
Non-touching magnetic encode position system for pan-tilt movement;

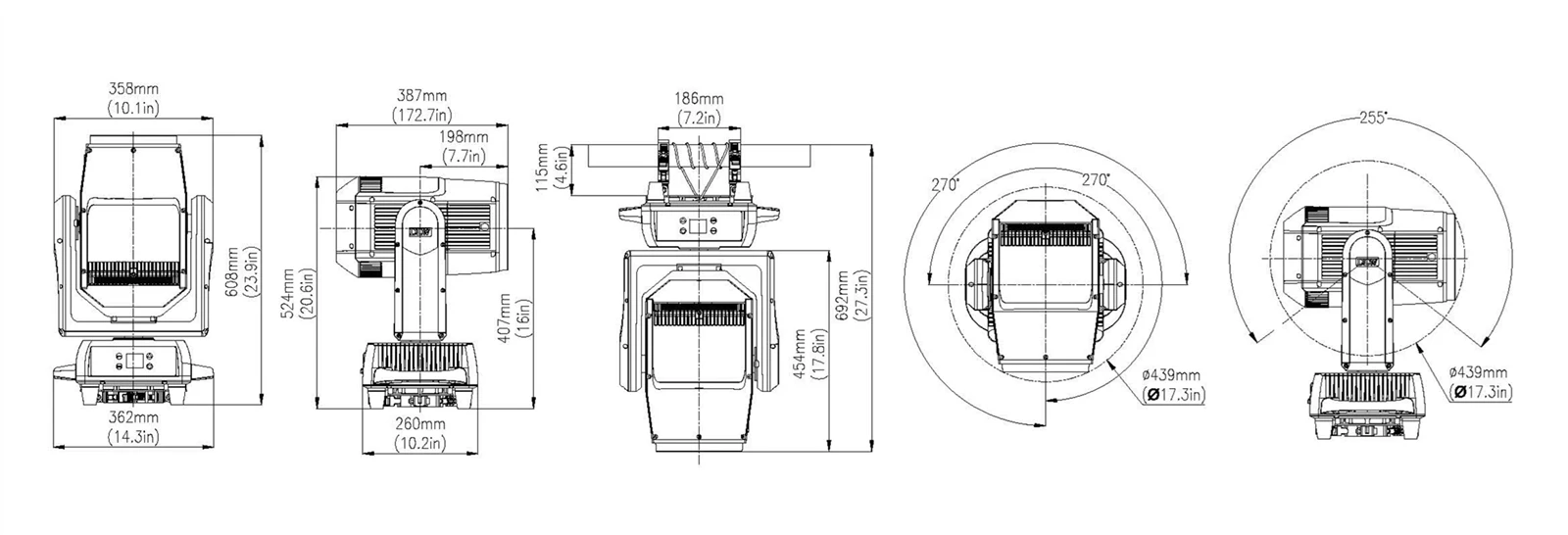

Size& Weight
Fixture size:362X362X608 (mm) (Integrated hook)
Fixture net weight: 24.5 kg
Flight case size:(1022X520X742)mm (2 positions)
Flight case weight:40 kg
Carton size: 505X465X649 mm (1 position)
Working Conditions
Working environment temperature: -20℃~ 40℃
Protection rate: IP66
Questions & Answers:
1. What is DLW 420BV IP outdoor beam light?
DLW 420BV IP is a professional IP66 outdoor sharpy beam moving head designed for concerts, touring shows and outdoor events.
2. Which are the key features of DLW 420BV IP?
420W lamp, 1.8° beam, IP66 waterproof design, dual prism, frost effect, DMX control.
3. How powerful is the DLW 420BV IP beam light?
420W Origin Philips MSD Platinum19 R LL long-lifetime lamp performance and high brightness output, 190,000Lux at 20M distance.
4. How does DLW 420BV IP create a sharp beam effect?
Narrow optics, high-efficiency lens system and 1.8° beam angle
5.What lighting effects can DLW 420BV IP produce?
It makes beam, prism, gobo, frost, strobe and color effects.
6. How many colors does DLW 420BV IP have?
14 dichroic color filters plus open white
7. Is DLW 420BV IP suitable for stadium lighting shows?
Ultra high-output beam penetration and outdoor reliability is suitable for stadium lighting shows & event productions.
8. What is the working temperature range of DLW 420BV IP?
It can work under -20°C to 40°C
9. Is DLW 420BV IP available for OEM production?
OEM/ODM customization possibilities
10. Why choose DLW 420BV IP instead of LED beam moving heads?
Traditional discharge lamp brightness is super, beam sharpness and long throw performance.
