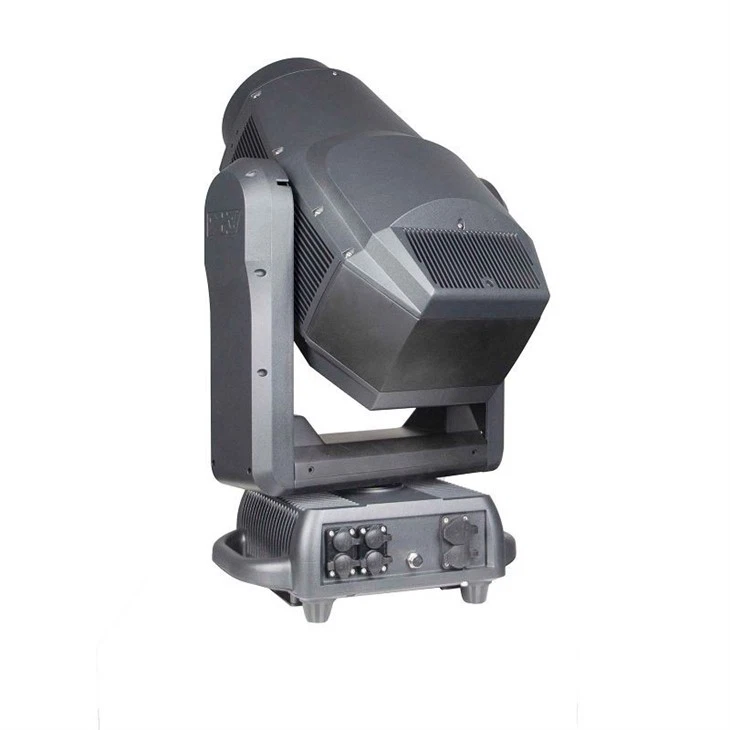

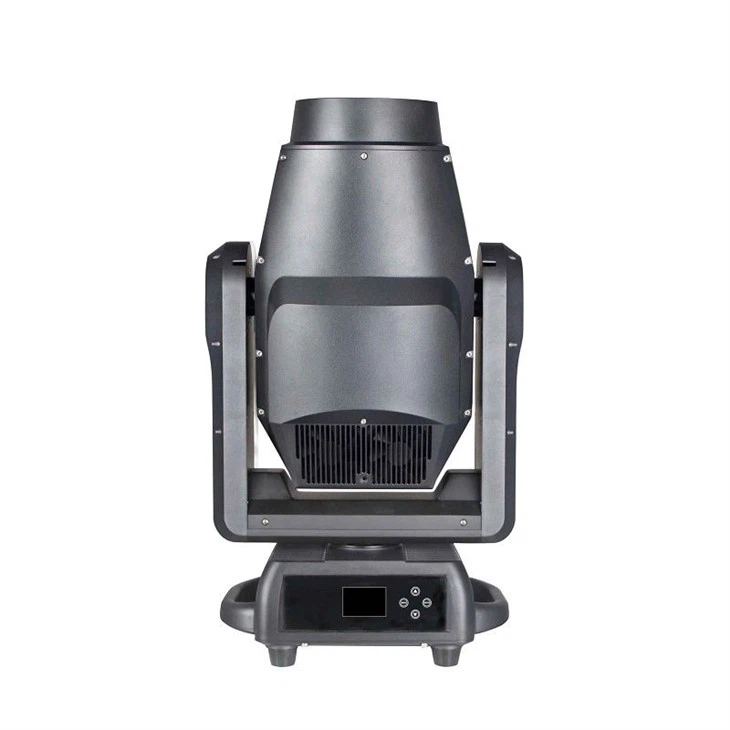

4-in-1 Outdoor Moving Head
Outline: Compact 600W LED framing moving head fixture with IP66 protection for all-weather touring and installations Zoom range 3°~ 42°
CMY + CTO + 9 colors
Rotating gobo wheel
Static gobo wheel
Animation wheel
Send Inquiry
Product Details of 4-in-1 Outdoor Moving Head
Outline
The DLW L600 BSWF IP is a compact moving head BSW with framing luminaire, designed for all-weather use. Despite its small size, it delivers powerful output from a 600 W white LED engine and includes features typically found in larger, more expensive fixtures.
With an advanced infinite rotatable framing system and precision optics, it offers a 3°–42° zoom range, pure CMY color mixing, linear CTO, and 9 color filters. The fixture is equipped with one rotating gobo wheel (7 HD gobos), one static gobo wheel (12 gobos), an animation wheel, dual rotating prisms, and a frost filter. Multiple user-selectable dimming curves are available.
Fully sealed in a carbon-fiber housing with an IP66 ingress protection rating, the L600 BSWF IP is ideal for outdoor and indoor installations, concert touring, festivals, and live events.
Suitable Applications
Outdoor Applications
Concert touring, live productions, music festivals, and large-scale events
– The compact, lightweight carbon-fiber housing and IP66 rating make this fixture ideal for touring rigs where low weight and weather resistance are critical.
Indoor Applications
Nightclubs, theatres, broadcast, and TV events
– Low-noise operation, stable color performance, and precise framing make it well suited for indoor professional productions.
Specification
|
Electrical |
|
|
Input Voltage |
AC 100–240 V, 50/60 Hz (electronic auto-ranging) |
|
Maximum Input Power |
850 W, Power Factor (PF) ≥ 0.98 |
|
Maximum Input Current |
8.5 A |
|
Light Source |
|
|
Light Source |
600 W white LED module |
|
CRI (Ra) |
≥ 70 |
|
LED Module Lifespan |
20,000 hours (typical) |
|
Optics & Photometric |
|
|
Front Lens |
High-definition optical lens with anti-reflective coating |
|
Zoom Range |
3 ° – 42 ° |
|
Color System |
|
|
Color Mixing |
CMY infinite mixing with high-saturation RGB, pure color |
|
CTO |
Continuously variable from 2700 K to 6900 K |
|
Color Filters |
9 fixed color filters |
|
Gobo System |
|
|
Rotating Gobo Wheel |
7 bi-directional rotating gobos, supports shaking effects; gobo wheel bi-directional rotating |
|
Static Gobo Wheel |
12 static gobos; gobo wheel supports rotate and shake effects |
|
Animation Wheel |
1 wheel for continuous motion effects (clouds, flames, scrolling textures) |
|
Framing System |
|
|
Framing Shutters |
4 individually controllable shutter blades |
|
Rotation |
Full framing graphics can rotate ±360 ° infinitely with precise positioning and no image distortion |
|
Effects |
|
|
Prisms |
2 prisms (6-facet circular + 3-facet linear) with linear zoom and focus; can overlay or rotate independently in both directions |
|
Frost |
1 frost filter with linear zoom and focus |
|
Dimming |
0–100% electronic dimming; 4 dimming curves; 4 dimming speeds |
|
Strobe |
Electronic strobe, 1–25 Hz, with multiple strobe patterns |
|
Fixture Movement |
|
|
Pan |
540 °, 16-bit resolution |
|
Tilt |
270 °, 16-bit resolution |
|
Control & Electronics |
|
|
DMX Channels |
38 / 35 / 60 channels |
|
Control Protocols |
DMX512, RDM; optional: Art-Net, sACN, wireless DMX |
|
Data Connectors |
Waterproof 3-pin and 5-pin XLR In/Thru; optional Ethernet (RJ45 In/Out) |
|
Power Connectors |
Waterproof locking power In/Out |
|
Display |
2.4" LCD color screen; bilingual menu (Chinese/English); 180 ° reversible display |
|
Monitoring & Control |
Electronic temperature sensing; intelligent fan speed control |
|
Energy Saving |
Eco mode (standby sleep mode) |
|
Pan/Tilt Positioning |
Non-contact magnetic encoder position system |
|
Dimensions & Weight |
|
|
Fixture Dimensions |
389 × 389 × 681 mm (including integrated hanging hook) |
|
Fixture Net Weight |
29 kg |
|
Flight Case Dimensions |
908 × 560 × 910 mm (2 units) |
|
Flight Case Weight |
45 kg |
|
Carton Dimensions |
505 × 405 × 845 mm (1 unit) |
|
Operating Conditions |
|
|
Operating Temperature |
-20 °C to 40 °C |
|
Ingress Protection |
IP66 |
*Specifications and documentation subject to change without notice.*
FAQ
Q. What type of CMY system does the DLW L600 BSWF IP use?
A. The DLW L600 BSWF IP uses a linear CMY infinite mixing system that provides smooth, high-saturation RGB color output and pure color rendition. It is combined with a linear CTO (2700 K – 6900 K) and 9 fixed color filters for extended color palettes and effects.
Q. Is this fixture suitable for both indoor and outdoor use?
A. Yes. With its IP66-rated, fully sealed carbon-fiber housing, the L600 BSWF IP is designed for all-weather outdoor applications as well as indoor professional use in theatres, TV studios, nightclubs, and live events.
Q: Why call DLW L600 BSWF IP a 4-in-1 Outdoor Moving Head?
A: The DLW L600 BSWF IP integrates Beam, Spot, Wash, and Framing functions into one compact moving head fixture, with protection rating IP66, it's suitable for outdoor events.
Q: What is the advantage of the framing shutter system on this fixture?
A: The DLW L600 BSWF IP features a 4-blade framing shutter system with four independently controllable shutters. Users can create custom beam shapes in as fast as 0.2 seconds. The fully framed graphic can rotate ±360 ° infinitely with zero distortion and 16-bit precision positioning. This precise, flexible framing is essential for theatre productions, architectural lighting, and any application that requires accurate beam shaping.
Q: Can you do OEM/ODM?
A: Yes. DLW Lighting supports both OEM and ODM services. We can customize housing color, logo, firmware, control protocols, and even optical or mechanical configurations to meet your project or brand requirements. Please contact our sales team with your specific needs, and we will provide a tailored solution and quotation.
