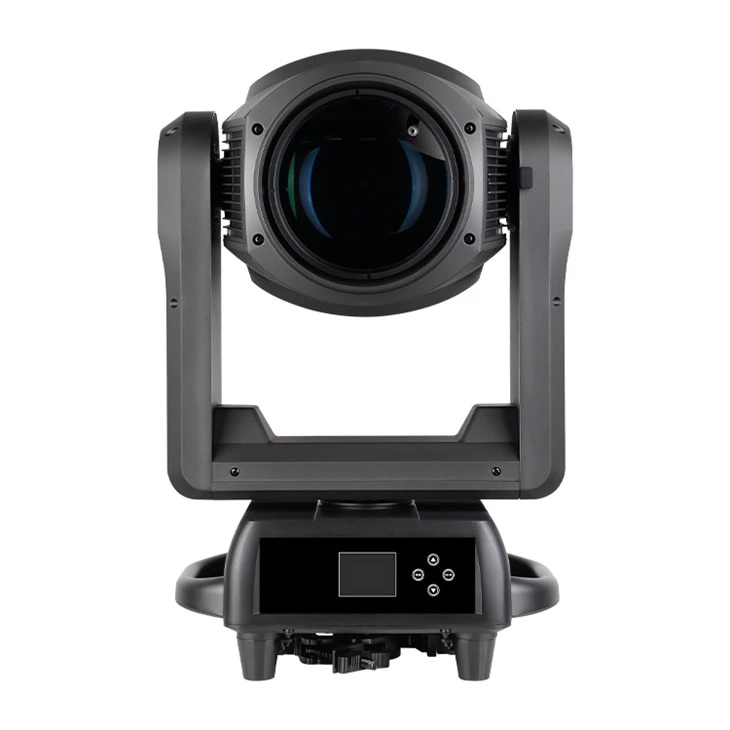

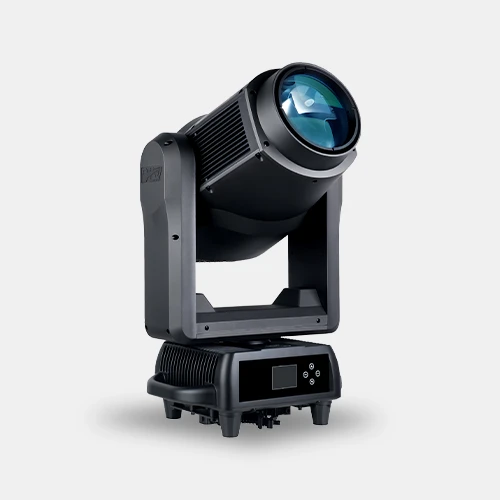

Moving Head Multi-Spectral Light
Outline: DLW L600C6P IP is a band-new design Full Spectrum RGBACL LED Framing Profile Fixture, excelling in advanced optical and color management, represents a significant advancement in low-noise, quiet operation even at maximum output. Its infinite framing system offers greater flexibility in maneuverability compared to conventional framing systems. This full spectrum automated LED framing fixture is designed for theater, television and a wide array of other precision lighting applications. Thanks to its powerful multi-color LED engine, it produces high-quality graphic and color effects through the integration of a rotating gobo wheel, a fixed gobo wheel, an animation wheel, enabling the creation of intricate and dynamic lighting scenes. Additionally, in a super lightweight carbon case with IP66 rated protection, the moving head DLW L600C6P IP ensure accurate color reproduction, is ideally suited for any application outdoors or indoors, including touring performance, live events, theater and television productions.
500W RGBACL LED (Multi-Spectral Light)
Zoom range: 6°～42°
RGBACL control
Virtual CTO
Virtual color macro
1 color wheel
1 rotating gobo wheel
1 fixed gobo wheel
1 animation wheel
1 infinite framing system
2 prisms
1 frost
Electronic strobe and dimming (4 dimming curves)
Mechanical Iris
Send Inquiry
Product Details of Moving Head Multi-Spectral Light
Electrical Specification
Input Voltage: AC100-240V 50/60Hz
Maximum input Power: 700W, PF≥0.98
Maximum input current: 7 A
Light Source
Light source: 500W RGBACL Multi-Spectral LED module
Color Rendering Index: Ra>95, R9>95
LED life expectancy: 20000 hours
Optics & Photometric Data
Frontal lens: high definition optical lens with anti-reflection coating.
Zoom range: 6°~ 42°

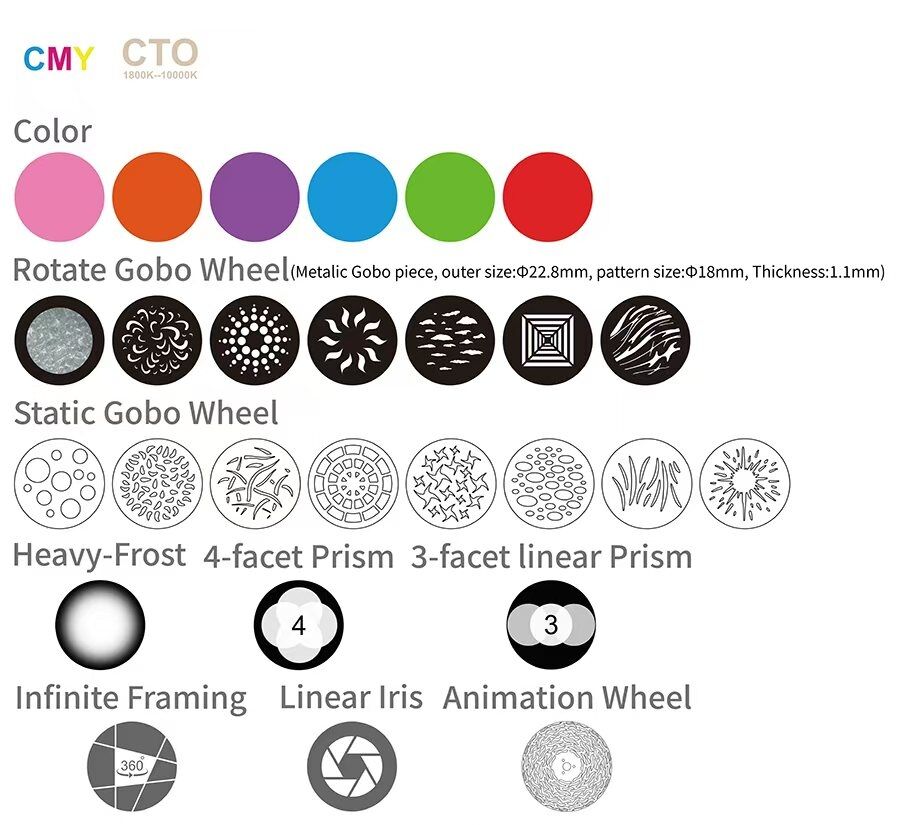

Color System
RGBACL colour mixing
Pre-programmed virtual CMY,
Pre-programmed virtual CTO, linear adjustable 1800-10000K
Pre-programmed color macro
One color wheel with 7 color filters + open, rotating in both directions with variable speed
Gobo System
One rotating gobo wheel with 7 gobos, can be indexing and bi-directional rotating, making effects of self-rotation, scrolling and shaking,
precise control at 16bit.
One static gobo wheel with 8 gobos, can create scrolling, shaking effects.
One animation wheel can create dynamic clouds, fire and water flowing effects.
Framing System
One framing shutters system, 4 x individually controllable blades, the complete framing graphics can be +-360° infinite rotating and precise positioning, without distortion.
Effect Configuration
2 prisms (4-facet circle + 3-facet linear), with linear zoom and focused, can be overlaying or independent rotating in both directions.
One frost filter with linear zoom and focused.
0-100% electronic dimming control, 4 choice of dimming curves, 4 choice of dimming speeds.
Electronic strobe 1-25HZ, with multiple strobe options.
High speed electric iris 5-100% linear adjustable, built-in macro with multiple effect variation.
Fixture Movement Parameters
PAN= 540° - 16 bit
TILT= 270° - 16 bit
Electronic Control
DMX Channel: 43 CH / 38 CH / 63 CH;
Control Protocols: DMX512, RDM; (optional: Art-Net, sACN, wireless function)
Data Portals: Waterproof XLR-3+ XLR-5; (optional Ethernet port :RJ45 In/Out);
Power Portals : Waterproof Locking Power In/Out;
Menu screen: 2.4" LCD, menu display can be 180° reversed;
Electronic sensing detector & intelligent fans monitor, control temperature;
Supports energy saving mode (standby hibernation function);
Non-touching magnetic encode position system for pan-tilt;
Size& Weight
Fixture size:389X389X681mm
Fixture net weight: 29 kg
Flight case size:(908X560X910)mm (2 positions)
Flight case weight: 45 kg
Carton size: 505X405X845 mm (1 positions)
Working Conditions
Working environment temperature: -20℃~ 40℃
Protection rate: IP66
