LED Moving Head IP66 Framing Profile Fixture With CMY
DLW L1200HPRO IP

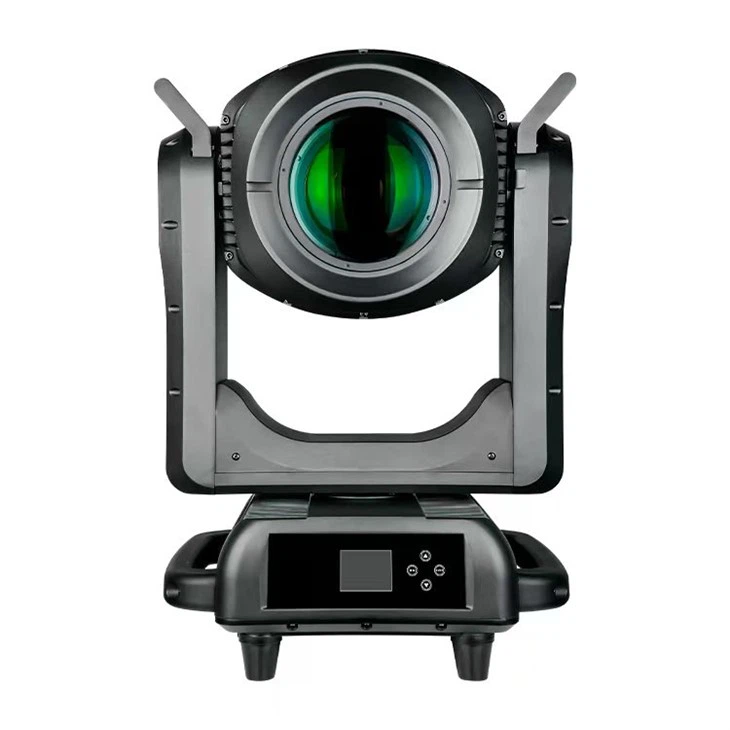

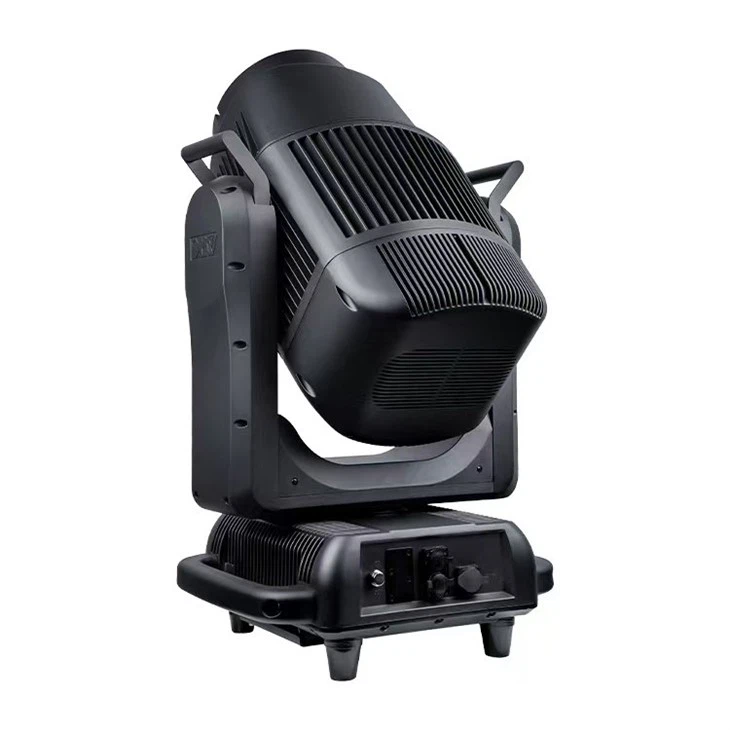

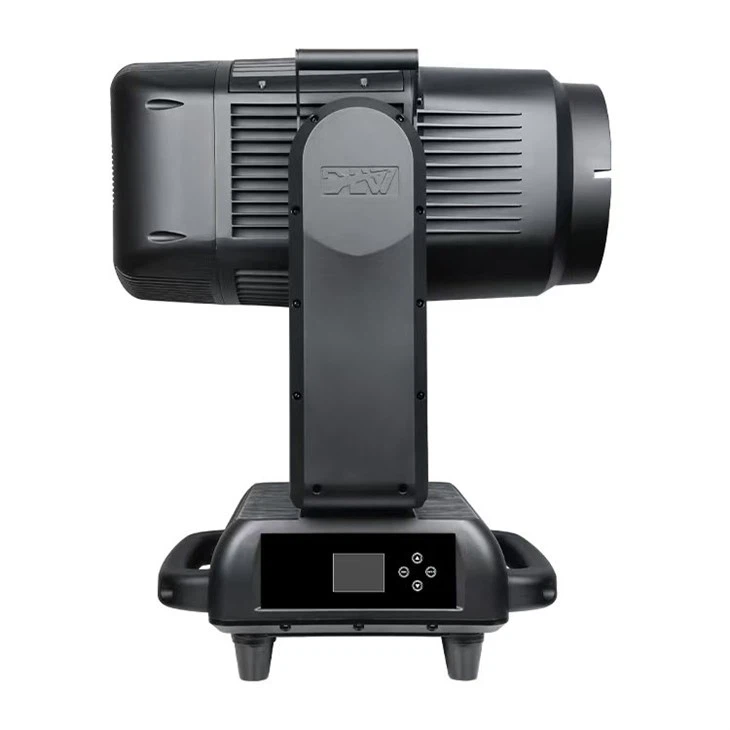

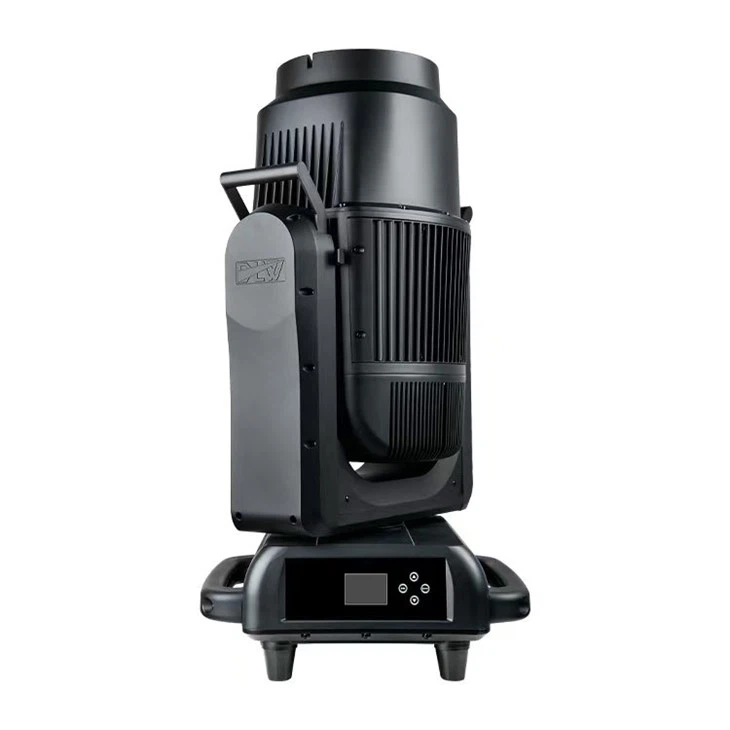

LED IP66 Framing Profile Moving Head Fixture With CMY
Outline:
1200W IP66 outdoor framing profile moving head with infinite CMY color mixing, linear CTO, dual prisms and a 6°–52° zoom. Built for large outdoor stages.
Send Inquiry
Product Details of LED Moving Head IP66 Framing Profile Fixture With CMY
Product Introduction
The DLW L1200PRO IP is the flagship 1200-watt framing profile in DLW's IP-rated moving head family. Powered by a 1200W white LED engine, it pairs the output needed for medium-to-long throw outdoor stages with a full creative toolset - infinite CMY color mixing, linear CTO, a rotating gobo wheel, an animation wheel, dual rotating prisms, dual frost filters, and a precision four-blade framing system that rotates a full ±360°.
Where the L600PRO IP is built for short-to-medium throw, the L1200PRO IP targets the largest productions - main stages at music festivals, stadium concourses, broadcast studios, and architectural facade lighting on tall buildings where throw distance and ambient light demand maximum punch.
The whole optical engine is sealed inside aluminum alloy housing rated IP66, so the fixture keeps running through rain, dust, humidity, and salt spray without a rain cover. Dual frost filters, dual prisms, and a motorized iris give designers layered beam-shaping control from a single luminaire, while electronic strobe and 16-bit dimming with selectable curves deliver smooth fades and fast pulses.
Why choose the L1200PRO IP over the 600W / 1000W models
Higher output for long throw: the 1200W LED module drives brighter, tighter beams over longer distance.
Wider zoom: 6°–52° (vs. 6°–42° on the L600PRO IP), covering tight beam and wide wash in one fixture.
Dual prisms + dual frost: two independent prism and frost effects for richer aerial textures than the single-set.
Full CMY + CTO: pure color mixing with linear 2700K–6900K color-temperature control, not just a fixed color wheel.
Key Features
Light Engine
1200W white LED module, high brightness and long lifetime, low maintenance for touring and rental fleets.
Optical & Zoom System
Motorized zoom from 6° to 52° - narrow beam for long-throw punch, wide field for wash coverage.
Color System
Infinite CMY color mixing for high-saturation, pure colors across the full gamut.
Linear CTO, 2700K–6900K adjustable color temperature.
One additional color wheel for fixed filter colors and instant color snaps.
Patterns & Effects
Four-blade infinite framing system, ±360° rotatable, individually controllable blades for precise shutter cuts and patterned shapes.
Motorized iris for continuous beam size control.
One rotating gobo wheel with high-definition gobos for crisp pattern projection.
One animation wheel for dynamic water, fire, and cloud effects.
Dual rotating prisms for split-beam and multi-image textures.
Dual frost filters for soft-edge wash transitions.
Control & Dimming
Electronic strobe and 16-bit dimming with multiple user-selectable dimming curves.
DMX512 control; RDM support for remote addressing and parameter setup.
Protection & Build
IP66-rated, fully sealed aluminum housing - rain, dust, humidity, and salt-spray resistant.
Operating temperature −20°C to +40°C
Compact design: 443 × 443 × 764 mm
Specification
| Item | DLW L1200PRO IP | DLW L1200HPRO IP |
| Light source | 1,200W white LED module | 1,200W white LED module |
| Operating mode | High-brightness mode | High-CRI mode |
| Color rendering index (CRI) | Ra ≥ 70 | Ra ≥ 90 |
| Expected LED lifespan (L70) | Approximately 20,000 hours | Approximately 20,000 hours |
|
Electrical spec & connections |
|
|
Input voltage |
AC 100–240V, 50/60Hz, electronic auto-ranging |
|
Maximum input power |
1,100W @ 100V / 1,400W @ 220V |
|
Maximum input current |
11A @ 100V / 6.4A @ 220V |
|
Power connector |
Waterproof locking power input |
|
Optics & Features |
|
|
Front lens |
162 mm High-definition frontal lens with anti-reflective coating improves image clarity and brightness |
|
Zoom range |
6°–52°, ensuring crisp, uniform light from edge to edge |
|
Iris |
High-speed electric iris, linearly adjustable 5–100%, with built-in macro effects |
|
Dimmer |
0–100% electronic dimming, 4 selectable dimming curves, 4 selectable speeds |
|
Strobe |
Variable-speed electronic strobe, 1–25Hz, multiple modes |
|
Color System |
|
|
CMY system |
Cyan: 0 - 100% |
|
CTO system |
Linear color-temperature adjustment, 3,200K–6,900K |
|
Color wheel |
1 wheel, 7 color filters + open |
|
Color wheel effects |
Rainbow, stepping, sliding fade, random color |
|
Rotating gobos |
|
|
Rotating gobo wheel |
1 wheel, 7 gobos; each gobo indexable, bidirectional variable-speed rotation and shaking effects |
|
Gobo wheel rotation |
Continuous bidirectional variable-speed rotation, 16-bit control; |
|
Effect wheel |
|
|
Animation wheel |
1 wheel; Aluminium material, bidirectional variable-speed rotation |
|
Animation effect |
Can be used alone or in combination with rotating gobos to create cloud, flame, and flowing-water effects; |
|
Framing shutters system |
|
|
Framing system |
4 individually controllable curtain blades |
|
Framing rotation |
360° continuous rotation of the complete frame system |
|
Framing effect |
distortion-free graphic and accurate positioning |
|
Prism system |
2 prisms: 4-facet linear + 6-facet circular; overlayable, follow-focus compatible |
|
Prism rotation |
Continuous bidirectional |
|
Frost filters |
2 independent frost filters, overlayable, follow-focus compatible |
|
Fixture Movement |
|
|
Pan |
540°, 16-bit control |
|
Tilt |
270°, 16-bit control |
|
Positioning system |
Non-contact magnetic encoder |
|
Electronic Control |
|
|
DMX channels |
32CH / 35CH / 60CH |
|
Standard protocols |
DMX512, RDM |
|
Optional protocols |
Art-Net, sACN, wireless |
|
Data connectors |
Waterproof 3-pin and 5-pin XLR input/thru |
|
Optional Ethernet connectors |
RJ45 input/output |
|
Display |
2.4-inch LCD, menu rotatable 180° |
|
Optional built-in battery |
for menu operation |
|
Fan control |
Intelligent controlled fan with temperature electronic sensor monitoring |
|
Energy saving |
Standby hibernation mode |
|
Dimensions & Weight |
|
|
Fixture dimensions |
443 × 443 × 764 mm (incl. integrated hook) |
|
Fixture weight |
46 kg |
|
Flight case dimensions |
935 × 530 × 630 mm (1 unit) |
|
Flight case weight |
26 kg |
|
Carton dimensions |
615 × 455 × 945 mm (1 unit) |
|
Working Conditions |
|
|
Ambient temperature |
-20°C to +40°C |
|
Protection rating |
IP66 |
*Specifications and documentation subject to change without notice.*
Product Comparison
|
Item |
L600PRO IP |
L1200PRO IP |
|
LED Engine |
600W |
1200W |
|
IP Rating |
IP66 |
IP66 |
|
Zoom Range |
6°–42° |
6°–52° |
|
Framing System |
4 blades, ±360° infinite rotation |
4 blades, 360° continuous rotation |
|
Gobo Wheels |
1 rotating (7 gobos) + 1 static (8 effects) |
1 rotating (7 gobos); static not listed |
|
Animation Wheel |
Yes |
Yes |
|
Weight |
29 kg |
46 kg |
|
Housing Material |
Carbon fiber |
aluminium alloy |
Q. What is the difference between the DLW L1200PRO IP and the ROBE iFORTE?
A. The DLW L1200PRO IP and ROBE iFORTE are both professional weather-resistant LED moving head profile fixtures designed for demanding stage and outdoor applications. The DLW L1200PRO IP features IP66 protection, a 1,200W white LED module, CMY color mixing, a 6°–52° zoom range, rotating gobos, an animation wheel, prisms, frost filters, and a four-blade framing system. ROBE iFORTE is an IP65 fixture that includes technologies such as a transferable LED engine, Plano4 framing shutters, multi-level prisms, and advanced moisture-management features.
Q. Is the DLW L1200PRO IP more suitable for outdoor use than an IP65 moving head?
A. The DLW L1200PRO IP is designed with an IP66 protection rating, offering a higher level of ingress protection than an IP65 fixture against dust and water. This makes it a strong choice for outdoor concerts, festivals, touring productions, and permanent installations where weather resistance is a key requirement.
Q. Does the DLW L1200PRO IP support CMY color mixing?
A. Yes. The DLW L1200PRO IP includes continuous CMY color mixing and linear CTO adjustment from 3,200K to 6,900K. It can produce highly saturated RGB colors, pure colors, smooth color transitions, rainbow effects, stepping effects, sliding fades, and random color modes.
Q. What are the key advantages of the DLW L1200PRO IP / DLW L1200HPRO IP for outdoor profile lighting?
A. TheDLW L1200PRO IP / DLW L1200HPRO IP combines IP66 protection with a high-output 1,200W LED engine, CMY color mixing, a wide 6°–52° zoom, rotating gobos, animation effects, prisms, frost filters, electric iris control, and precision framing. This combination makes it suitable for outdoor profile lighting, large-scale stage productions, touring, festivals, and permanent outdoor installations.
A. The DLW L1200PRO IP and ROBE iFORTE are both professional weather-resistant LED moving head profile fixtures designed for demanding stage and outdoor applications. The DLW L1200PRO IP features IP66 protection, a 1,200W white LED module, CMY color mixing, a 6°–52° zoom range, rotating gobos, an animation wheel, prisms, frost filters, and a four-blade framing system. ROBE iFORTE is an IP65 fixture that includes technologies such as a transferable LED engine, Plano4 framing shutters, multi-level prisms, and advanced moisture-management features.
Q. Is the DLW L1200PRO IP more suitable for outdoor use than an IP65 moving head?
A. The DLW L1200PRO IP is designed with an IP66 protection rating, offering a higher level of ingress protection than an IP65 fixture against dust and water. This makes it a strong choice for outdoor concerts, festivals, touring productions, and permanent installations where weather resistance is a key requirement.
Q. Does the DLW L1200PRO IP support CMY color mixing?
A. Yes. The DLW L1200PRO IP includes continuous CMY color mixing and linear CTO adjustment from 3,200K to 6,900K. It can produce highly saturated RGB colors, pure colors, smooth color transitions, rainbow effects, stepping effects, sliding fades, and random color modes.
Q. What are the key advantages of the DLW L1200PRO IP / DLW L1200HPRO IP for outdoor profile lighting?
A. TheDLW L1200PRO IP / DLW L1200HPRO IP combines IP66 protection with a high-output 1,200W LED engine, CMY color mixing, a wide 6°–52° zoom, rotating gobos, animation effects, prisms, frost filters, electric iris control, and precision framing. This combination makes it suitable for outdoor profile lighting, large-scale stage productions, touring, festivals, and permanent outdoor installations.
