Outdoor LED Par
Outline

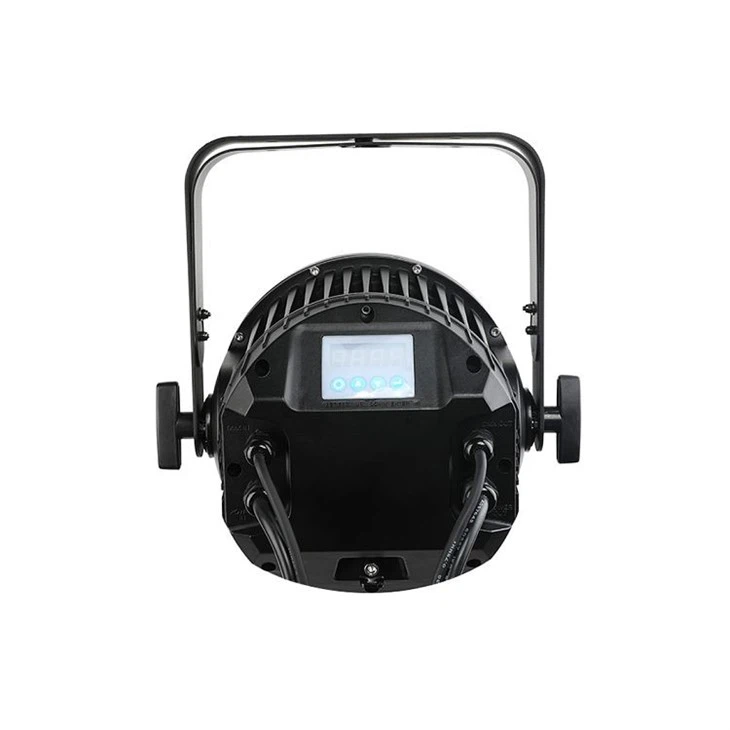

DREAM 1018C4 PAR IP is a versatile outdoor LED Par light that is made of all-metal construction.
This led par utilize 18 x 10-Watt LEDs, (red, green, blue, and white 4-IN-1), offers seamless color mixing, built-in color macros. It delivers high brightness output thought its optics lens. With these features, users can easily create large washes of vibrant colors.
This outdoor par light has an IP65 outdoor rated protection system, making it a reliable option for any outdoor lighting setting, whether it is for fixed installations or events.
Send Inquiry
Product Details of Outdoor LED Par
Electrical Specification
Input voltage: AC100-240V 50/60Hz
Input power: 200W
Maximum input current: 2A
Light Source Parameters
Light source: 18 x 10W RGBW LED
LED lifespan: 50,000 hours
Optical Parameters
Beam angle: 15°/25°/45°/60° (fixed focus)
Color System
Red, green, blue and white, independent controllable
Effects Configuration
0-100% independent linear dimming
Fast strobe: 1-25Hz
Color macro and color gradient effect
Housing
Aluminum alloy die-cast shell, silent fanless design.
Electronic Control Technology
Control Mode: 4ch/9ch
Control Protocols :DMX512, RDM
Data Portals : Integrated waterproof plug 3-pin In/Out
Power Portals : Integrated waterproof plug In/Out
Color starting brightness setting; over-current, over-voltage, over-temperature protection;
Temperature sensor detection, intelligent adjustment of light source power;
Master-slave control mode.
Size and Weight
Fixture size: 310x253x224 (mm)
Fixture net weight: 7.5 kg
Flight case size: (845x595x640) mm (6 positions)
Flight case weight: kg
Carton size: 270x270x325 mm (1 positions)
G.W. : 8.4 kg
Carton size: 560x290x355 mm (2 positions)
G.W. : 17.6 kg
Working Condition
Working temperature: -20℃~40℃
Protection class: IP65
Specifications and documentation subject to change without notice.
