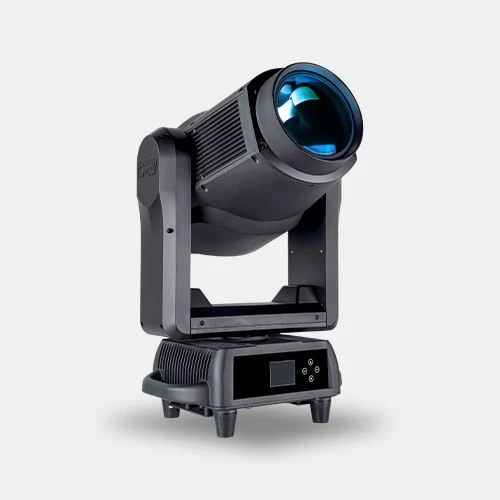

IP66-rated LED Profile Fixture

DLW L600PRO IP

Outline: The DLW L600PRO IP is IP66-rated LED profile fixture, suitable for short to medium throw for all-weather applications.
The LED IP66 Framing Profile Fixture with CMY and CTO, a 600W white LED engine, is an ideal fixture for any outdoor or indoor application requiring superior output, bright and powerful beams, as well as it’s equipped with precise gobos, advanced infinite framing system, provides a wide zoom range from 6° to 42°, also includes an animation wheel, dual rotating prisms and a frost atomizer, multiple user-selectable dimming curves. It provides lighting designer a rich feature package in such an impressively compact fixture design, where expect to find in a larger, more expensive profile.
DLW L600PRO IP, fully sealed in a new type of Carbon Fiber Housing,ingress protection rating IP66. No more need worry of rain or storm! Put your show outdoor! It is a rugged stage lighting fixture for a wide variety of applications.

600W LED white light module
Zoom range 6°~ 42°
CMY + CTO + 9 colors
Rotating gobo wheel
Static gobo wheel
Animation wheel
Infinite framing system
Frost and Double prisms
Protection rating IP66

Send Inquiry

Product Details of IP66-rated LED Profile Fixture

Electrical Specification

Input Voltage: AC100-240V 50/60Hz

Maximum input Power: 850W, PF≥0.98

Maximum input current: 8.5 A

Light source

Light source: 600W White LED module

Ra ≥ 70

LED module lifespan: 20000 hours

Optics & Photometric Data

Frontal lens: high definition optical lens with anti-reflection coating.

Zoom range: 6°~ 42°

Color System

CMY infinite mixing, output high saturated color (RGB), pure color.

CTO 2700-6900K linear adjustable color temperature.

9 color filters.

Gobo system

One rotating gobo wheel with 7 bi-directional rotating gobos.It can rotate in two directions, have scrolling and jitter effects, and

the gobo wheel can be positioned accurately with 16 bits.

One static gobo wheel with 8 gobos effects,can achieve scrolling and shaking effects.

One animation wheel effect, which can continuously move to simulate clouds, flames, and scrolling effects.

Framing system

One framing shutters system, 4 x individually controllable blades, the complete framing graphics can be +-360° infinite rotating and precise positioning, without distortion.

Effect equipment

2 prisms (6 facet circle + 3-facet linear), with linear zoom and focused, can be overlaying or independent rotating in both directions.

One frost with linear zoom and focused.

0-100% electronic dimming control, 4 choice of dimming curves, 4 choice of dimming speeds.

Electronic strobe 1-25HZ, with multiple strobe options.

Fixture Movement Parameters

PAN= 540° - 16 bit

TILT= 270° - 16 bit

Electronic Control

DMX Channel: 38 Ch/ 35 Ch/ 60 Ch;

Control Protocols: DMX512, RDM; (optional : Art-Net, sACN, wireless function)

Data Portals :Waterproof XLR-3 + XLR-5 In/Thru ; (optional Ethernet port : RJ45 In/Out);
